Cart Using
LOGIQ e – Basic Service Manual 11-43
5461614-100 English Rev. 6
Release the System from Docking Cart (continued)
1. Disconnect the probe connector of Three-Probe Port from
the system.
2. Rotate the handle to unlock system
3. Place palm of one hand on the handle and push the system
release button toward you with the other hand until it stops,
then release the button back to it’s normal position.
4. Lift up the system from the platform.
Switch the Three Probes
The system can switch the probe between the three probe which
are connected in the Docking Cart Three Probes Box.
From the keyboard, press the Exam key. The Probe screen
appears. Select the probe which you want.

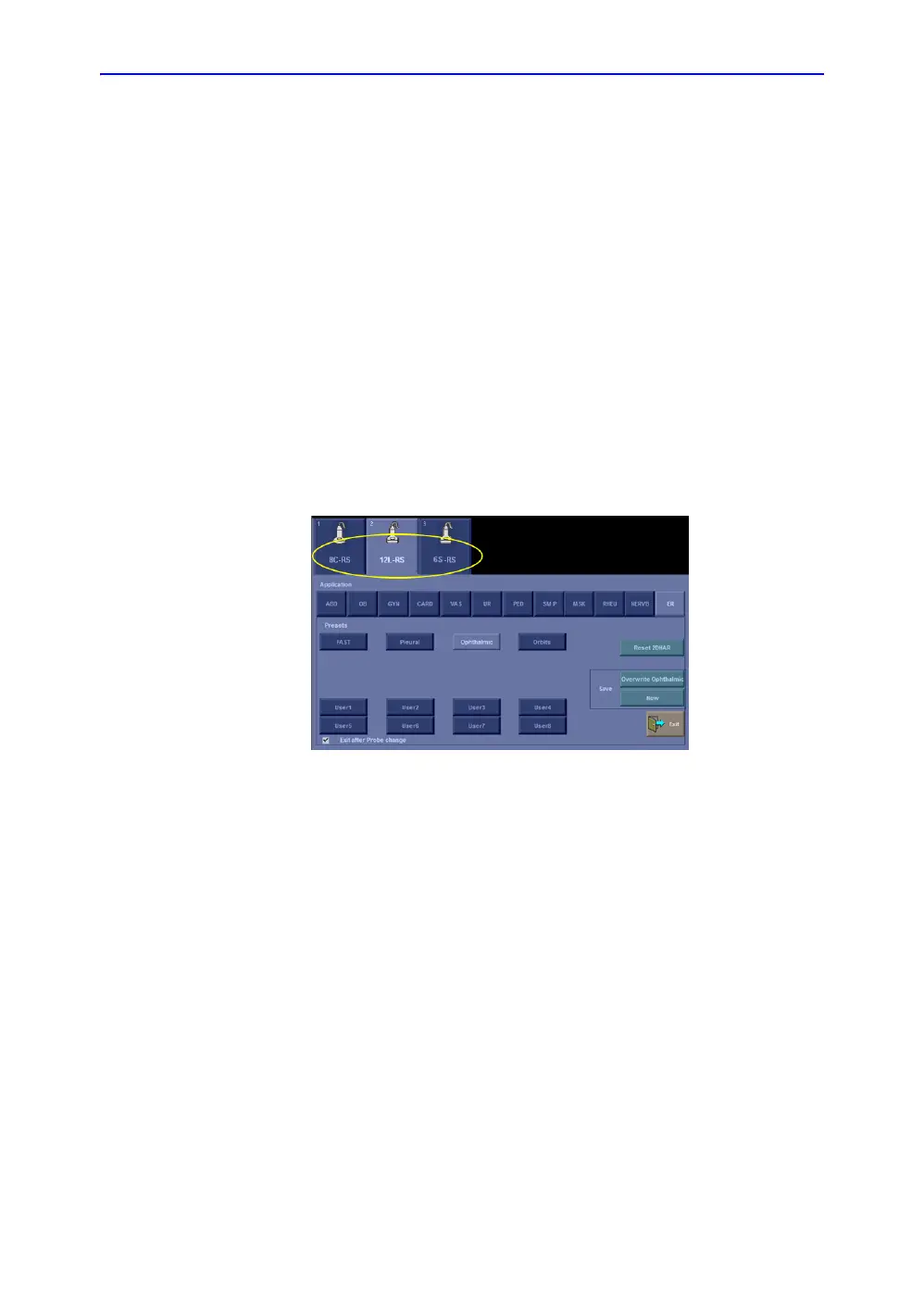

Figure 11-18. Probe Screen
NOTE: If the docking cart loses power, the factory default probe is the
probe which is connected to the port.
System Operation
LOGIQ e is supported on Docking Cart.
NOTE: To upgrade the system, release the system from the Docking
Cart and connect the USB Memory Stick or SD Card to the
system directly.
NOTE: To power off Docking Cart, open the circuit breaker and then
pull out the AC Power Cord from the wall AC outlet.
NOTE: Do not plug the AC Power into the wall in the state of closing the
circuit breaker.
