Auxiliary Outlet
Chapter 5: Parts
List
Page 5 - 98
CareAssist® and CareAssist® ES Bed Service Manual (MAN330 REV 4)
Auxiliary Outlet

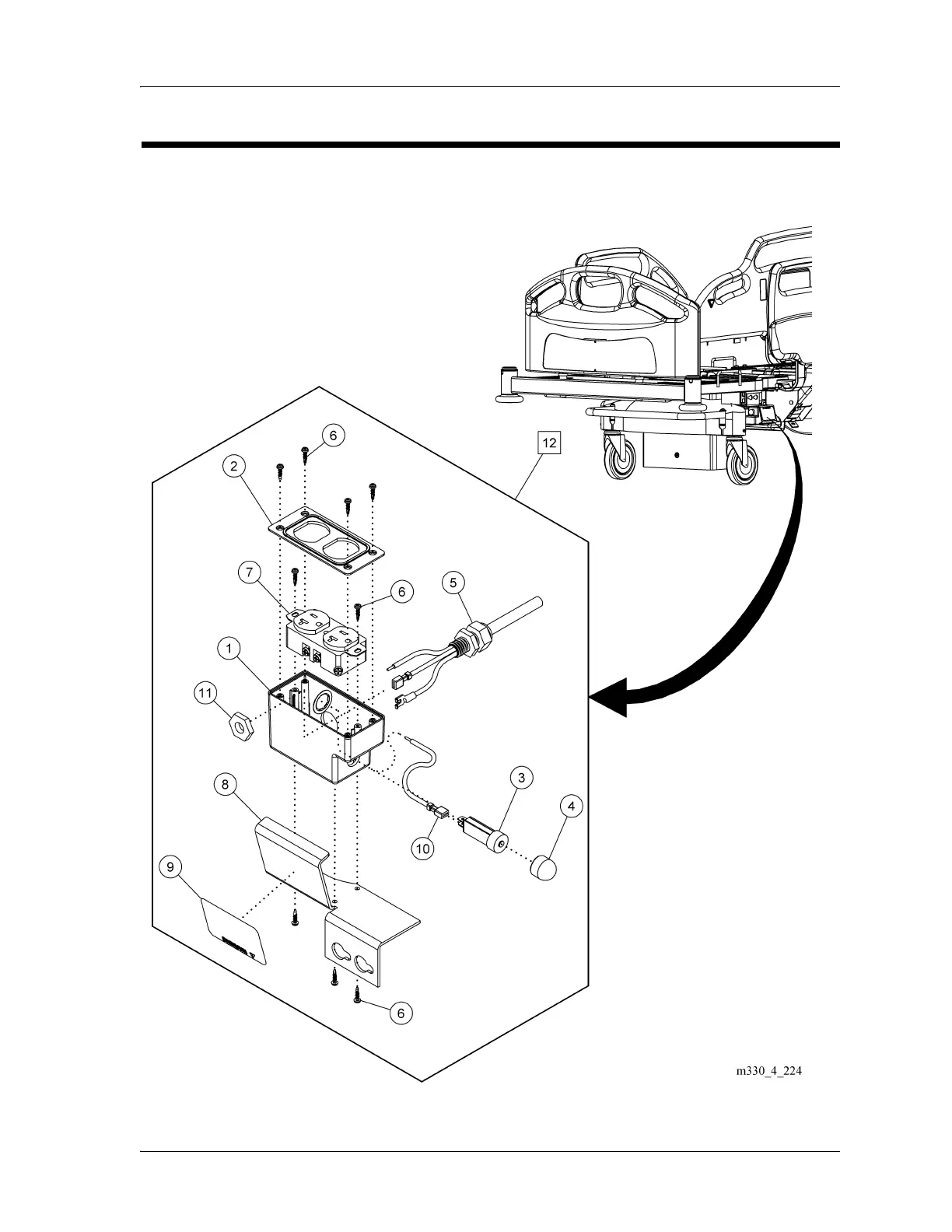

Figure 5-39. Auxiliary Outlet
307
309
