8.8. Remote Receiver and Connections
The X-Series panels support four remote receivers.

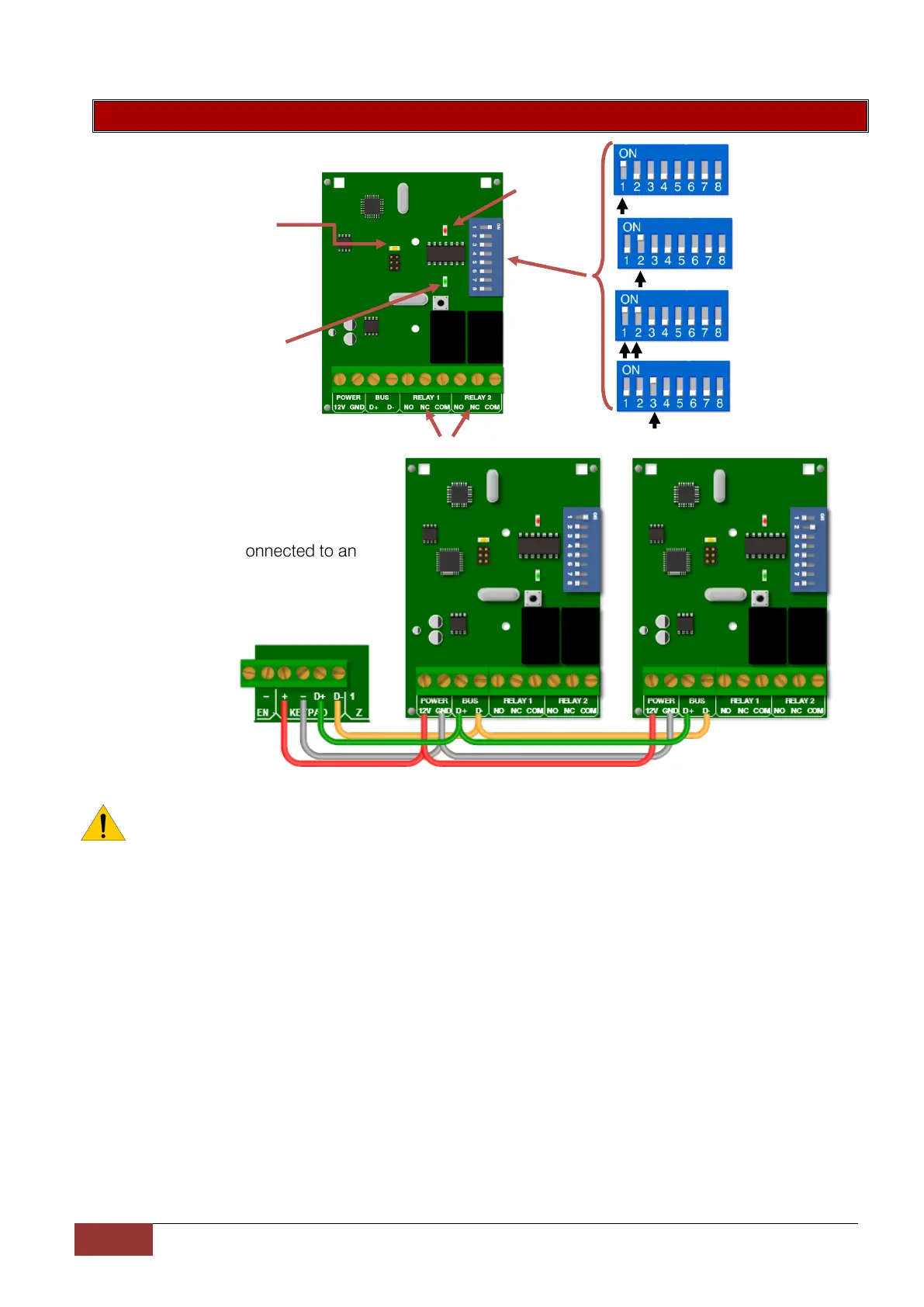

Two remote receivers connected to an
X64 alarm system
Note: The X-Series remote receiver cannot work in a standalone mode, it must be connected to an
X-Series alarm panel.
Dip Switch 7 can used to disabled 3 second panic from Receiver hardware v1.05
Relays are dry contact relays
Bus LED
On - steady communicating
Flashing - no communication
Function LED
Different flashes are
displayed for the mode
that the receiver is in,
stand by, learn, etc.
RX LED
Rx 1
Rx 2
Rx 3
Rx 4
Set the
receivers ID
