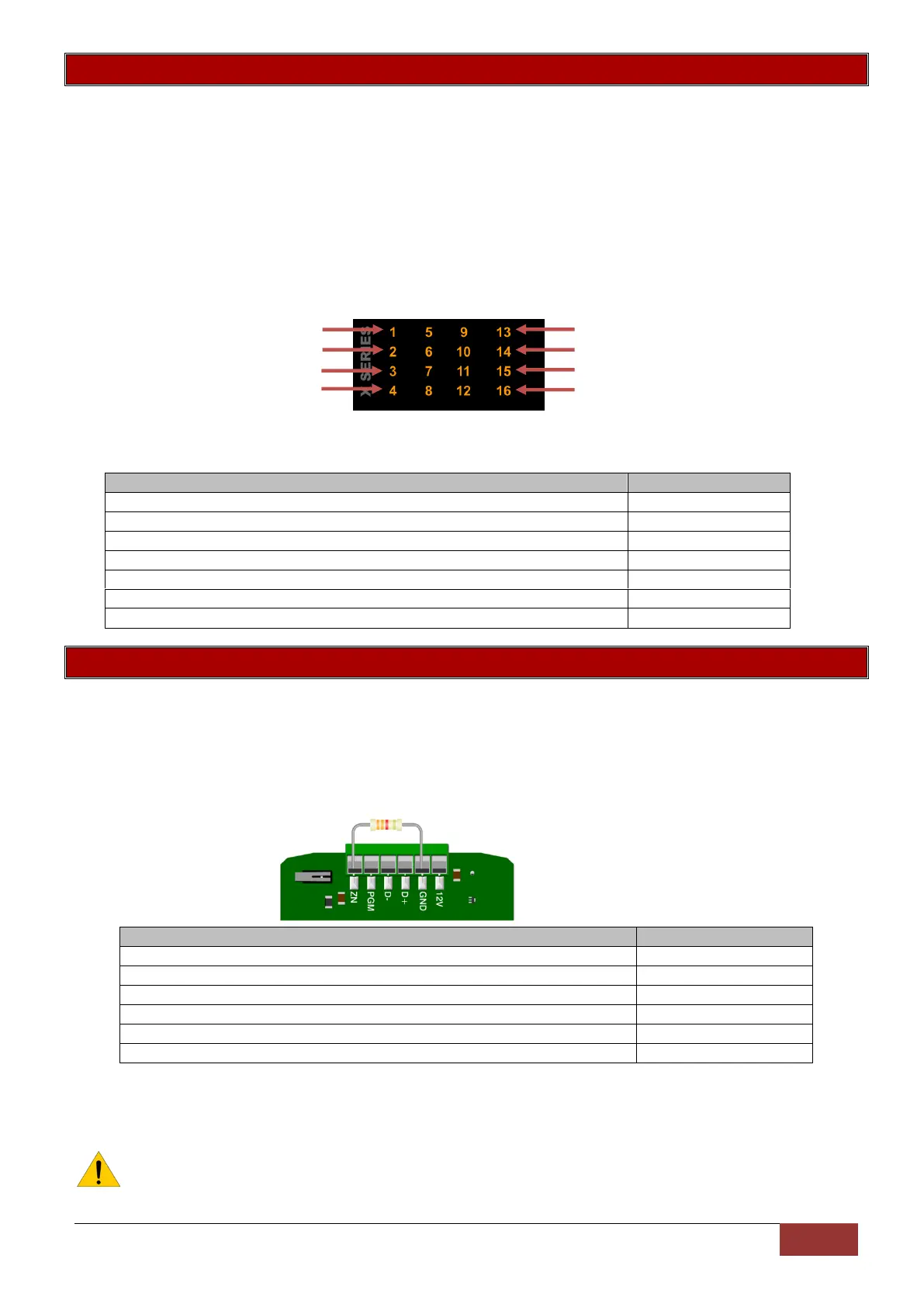

Location 241: Keypad Display Start Zone
Location Type: Extended
There is a sub-location for each of the 8 keypads.
Default: 01
Valid range: 01 – 64
The LED keypad can only show 16 zones at a time, therefore on an LED keypad you can set the keypad to
start at any zone.
This allows you to set what physical zone the LED keypad will display as zone 1. For example, by setting the
keypad to start at zone 20, zone 1 on the keypad will now represent the physical zone 20.
Exercise: Let us make keypad 2 start displaying from zone 9.
Location 242: Keypad Zone
Location Type: Extended
There is a sub-location for each of the 8 keypads.
On each keypad is a physical zone input which can be mapped to any zone on the alarm. The physical zone
that the keypad zone is mapped to, on the panel or expander will be switched off. For example if I make
keypad 3s zone, zone number 8 then zone 8 on the panel will be no longer be in operation, but the zone on
the keypad will display and report as zone 8.
Default: 00
Valid range: 01 - 64
Exercise:
Instructions
Key presses
If not in installer mode enter into installer
[#][9][9][9][9] [*]
To enable the keypad zone go to location 242
[2][4][2] [*]
Again we are only changing keypad 3 so we will use the bitmap method
[3] [*]
Enter the zone that this keypad’s zone will represent
[8] [*]
Exit from the location
[#]
To exit programming
[#]
You could also map the keypad zone to zone 33 even though you don’t have an expander with zone 33
physically connected.
NOTE: Please remember that you still need to give the zone a zone type and place it into a partition
for it to work.
Instructions
Key presses
If you are not in installer mode, enter into installer
[#][9][9][9][9] [*]
Keypad display start zone is in location 241
[2][4][1] [*]
Only keypad 2 is changing so we will use the bitmapped method
[2][*]
Enter the start zone number
[0][9] [*]
As you enter * your data is saved and you are exited back into location 241
To exit out of location 241
[#]
To exit installer mode
[#]
Zone 20
21
22
23
Zone 32
33
34
35
