Inovance SV820N Series User Manual

- 9 -
1 Servo System Selection
1
1.1 Model and Nameplate Description of the Servo Drive
1.1.1 Model and Nameplate of the Servo Drive

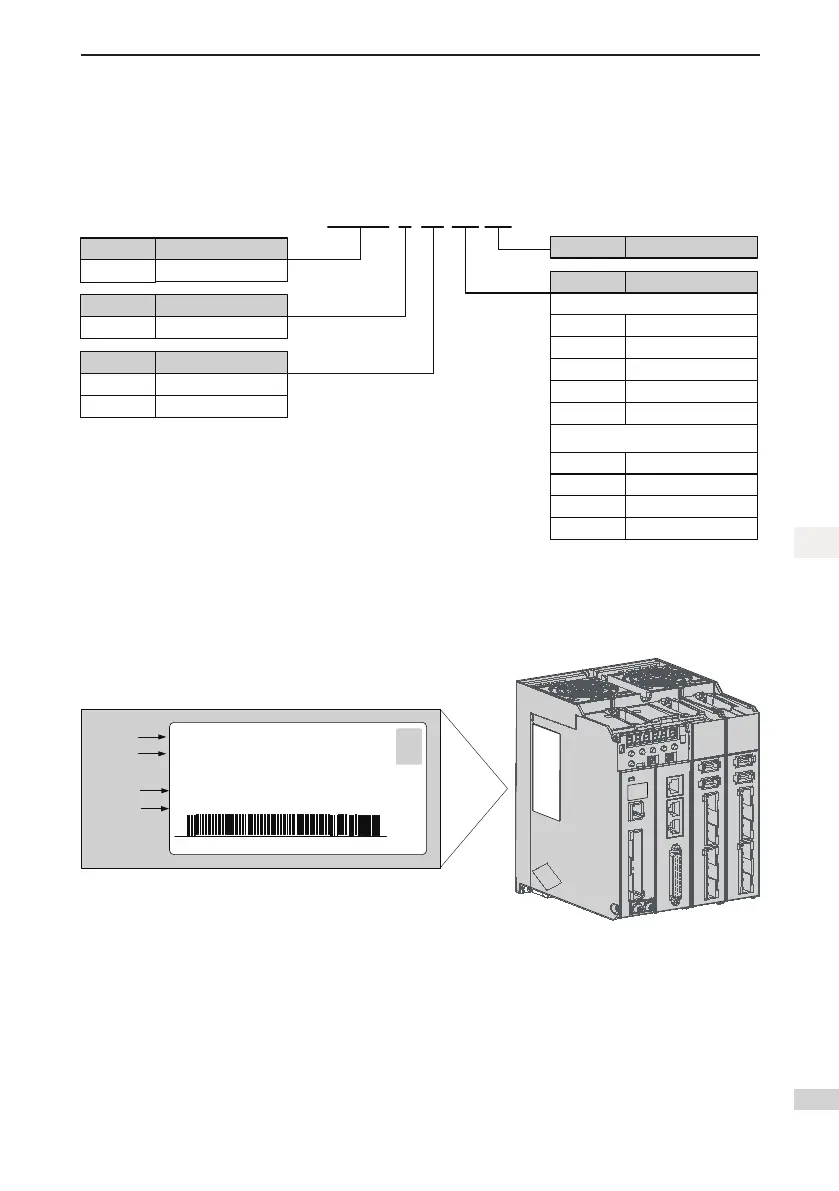

Figure 1-3 Model description of the servo drive
Example:
SV820N1S2C2C: SV820 series mult-axis servo system, Network-type, power supply unit 1 kW.
Drive Unit 1 is 2.8A*2, Drive Unit 2 is 2.8A*2.
SV820 N 1S 2C 2C
Mark Serial Number
SV820
SV820 series
Mark Control Board Type
N Network-type
Mark Power Supply Unit Type
1S 1 kW
2S 2 kW
Mark Drive Unit 1
1A 1.1 A
1B
1.6 A
1C 2.8 A
1D 4.6 A
2A 1.1 A
2B
1.6 A
2C 2.8 A
2D 4.6 A
Single axis drive unit (rated current)
Double axis drive unit
(rated current per axis)
Mark Drive Unit 2
1E 7.6 A
Figure 1-4 Nameplate description of the servo drive
MODEL:SV820N1S2C2C
INPUT:1 PH/3 PH AC 200–240 V 4.5 A/3 A 50/60 Hz
OUTPUT:4 x (3 PH AC 0–240 V 2.8 A 0–400 Hz)
S/N:XXXXXXXXXXXXXXXX
Suzhou Inovance Technology Co.,Ltd.
Drive model
Rated input
Rated output
Manufacturi
ng number
Nameplate
Certificates
