Inovance SV820N Series User Manual

- 24 -
2 Installation
2
2.1.2 Requirements of the Installation Dimensions and Clearance
Product dimensions (mm)

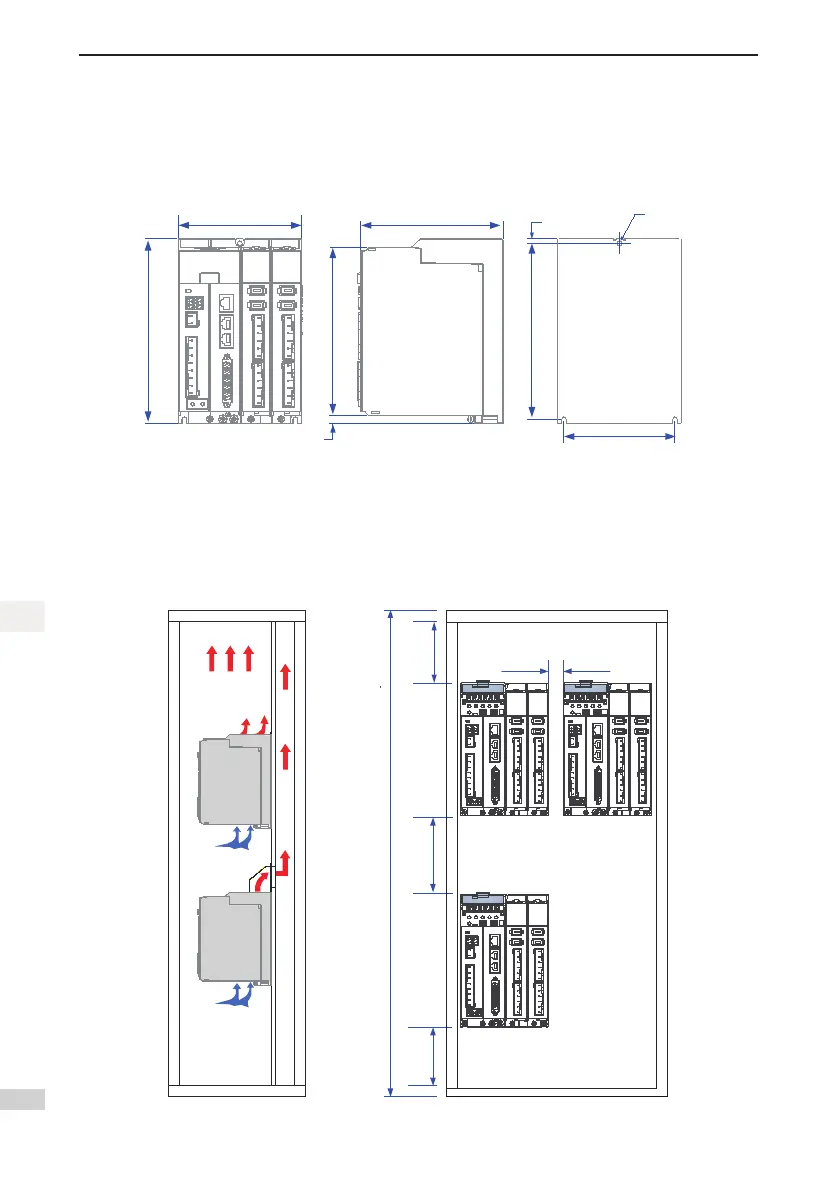

Figure 2-2 Diagram of physical dimensions
184.0
122.0
167.0
141.0
8.5
175.0
4.3
110.0
3-
M4 tapped hole
Clearance
The product can be installed side by side (with the clearance at least 2 mm) in one layer or two layers, as
showninthegurebelow.Whentheproductisinstalledintwolayers,minimumclearanceisrequiredbe-
tween units.
Figure 2-3 Clearance between units when the product is installed in two layers
≥50
250
≥
150
≥50
≥2
