3 Wiring
3
3.7 WiringofSignalConnectorBetweenBackgroundCommunicationand
Online Upgrade (CN3)
ArrangementofEthernet(CN3)terminals:

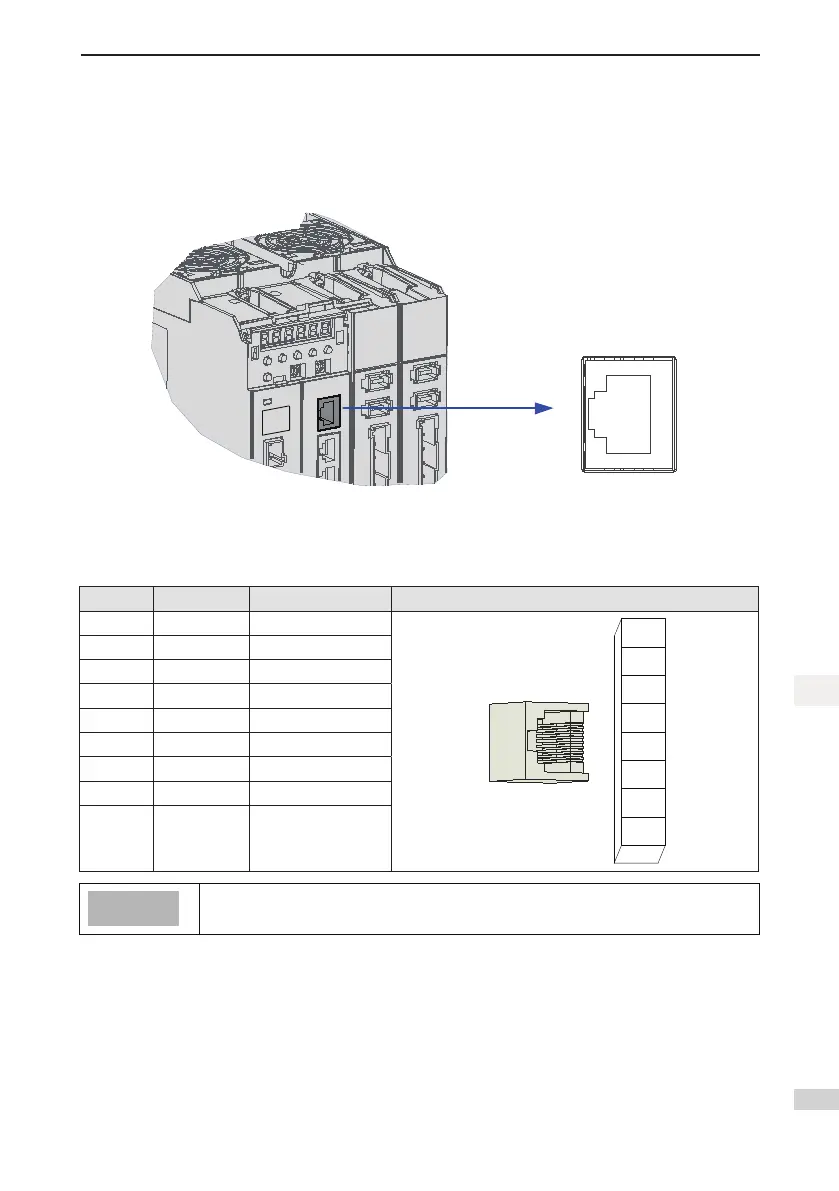

Figure 3-16 Ethernet connector terminal
PindenitionofCN3(Ethernetconnectorterminal)isthesameasthatofCN4/CN5.RefertoTable4-27for
details.
Table 3-16 Pindenitionofcommunicationsignalterminalconnectors
Pin No. Signal Function Description Terminal Pin Layout
1 TX+ Datatransmit+
1
2
3
4
5
6
8
7
2 TX- Data transmit-
3 RX+ Datareceive+
4 - -
5 - -
6 RX- Data receive–
7 - -
8 - -
Housing PE Shield
Note
Communication cables are the same as cables for multi-device communication (S6-L-T04).
