Inovance SV820N Series User Manual

- 85 -
4 Operation Panel
4
4.6 Jog Running
Note
● When using the jog running function, set the S-ON signal inactive. Otherwise, this function
cannot be used.
● Use the jog running function to perform trial running on the servo motor and drive.
4.6.1 Operation Method

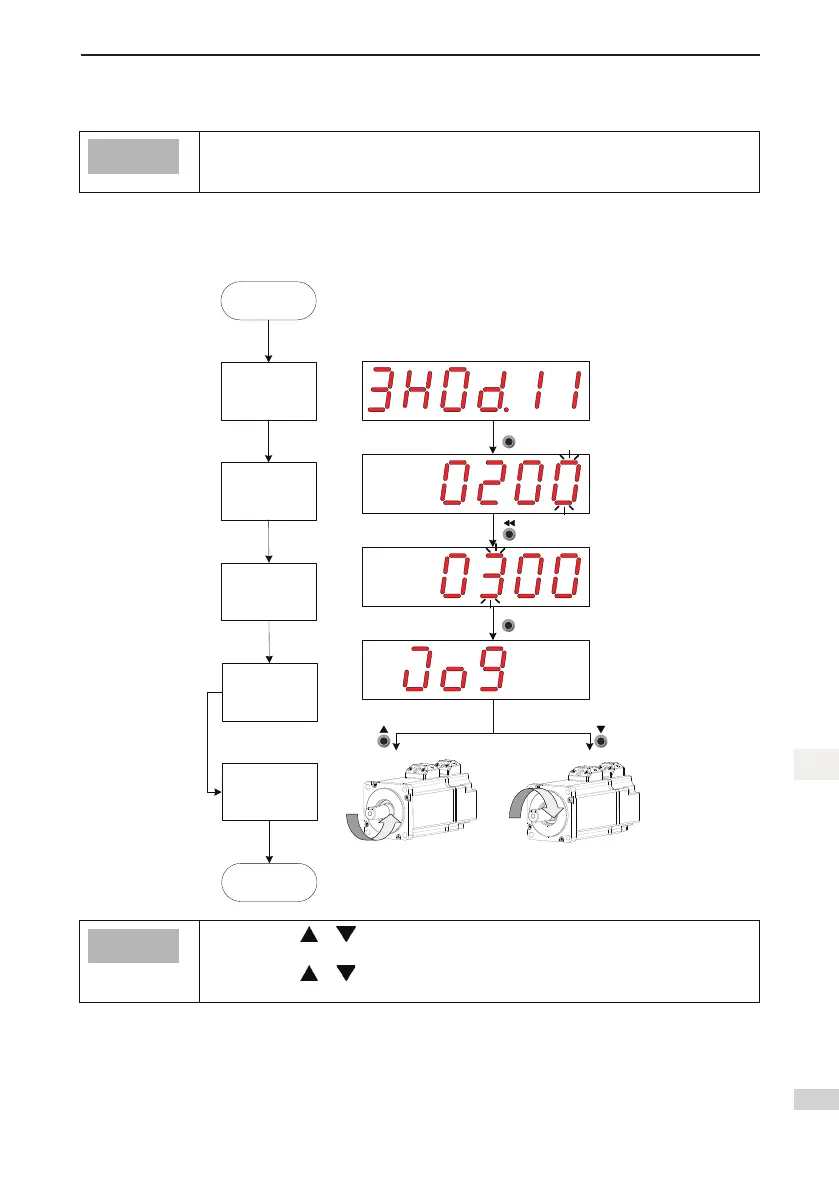

Figure 4-7 Diagramforkeypadoperationofjogrunningsetting
Start
Go to the
“H0D-11” screen
for parameter setting
Set and display the
initial motor speed
for jog running*
Power on
“SET” key
1
Display “JOG,”
indicating that the
motor powers on
and its jog function is
currently available
Enable forward/
reverse motor
rotation*
End
“SET” key
“▲/▼” key
2
Set and display the
motor speed
for jog running
“▲/▼” key
CCW
CW
SET
SET
Note
● *1:Pressthe or keytoincreaseordecreasethemotorspeedforthejogrunning.If
this jog running ends, the motor speed restores to the initial value.
● *2:Pressthe
or keytomaketheservomotorrotateintheforwardorreverse
direction.Ifyoureleasethekey,theservomotorstopsrunningimmediately.
4.6.2 Exiting Jog Running
PresstheMODEkeytoexitthejogrunningandreturntotheupper-levelmenu.
