Inovance SV820N Series User Manual

- 16 -
1 Servo System Selection
1

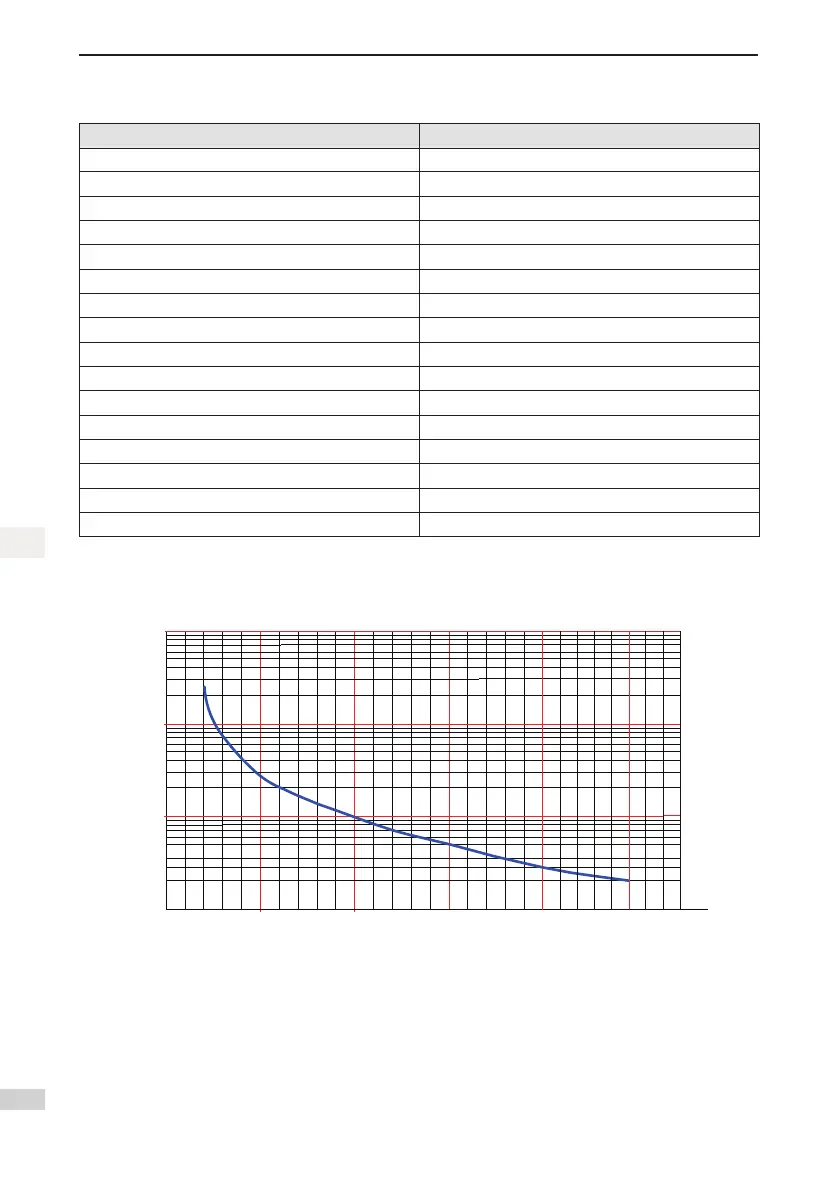

1.3.4 Motor Overload Characteristics
Load Ratio (%) Running Time (s)
120 230
130 80
140 40
150 30
160 20
170 17
180 15
190 12
200 10
210 8.5
220 7
230 6
240 5.5
250 5
300 3
350 2
Figure 1-8 Motor overload curve
100 150 200 250
1,000
Load ratio (%)
Running time (s)
300
1
10
100
350
● The maximum torque of H1 and H4 is 3.5 times the rated torque.
