INVT Goodrive35 Series User Manual

Goodrive35 Series Closed-loop Vector Control VFD Basic operation instruction
181
Function
code
Name
Detailed instruction of parameters
Default
value
P06.06
Y1 switch-on delay time
0.000–50.000 s
0.000 s
P06.07
Y1 switch-off delay time
0.000–50.000 s
0.000 s
P06.08
HDO switch-on delay
0.000–50.000 s (valid only when
P06.00=1)
0.000 s
P06.09
HDO switch-off delay
0.000–50.000 s (valid only when
P06.00=1)
0.000 s
P06.10
RO1 switch-on delay
0.000–50.000 s
0.000 s
P06.11
RO1 switch-off delay
0.000–50.000 s
0.000 s
P06.12
RO2 switch-on delay
0.000–50.000 s
0.000 s
P06.13
RO2 switch-off delay
0.000–50.000 s
0.000 s
P07.40
Output terminal state at present
fault
0
P17.13
Digital output terminals state
0

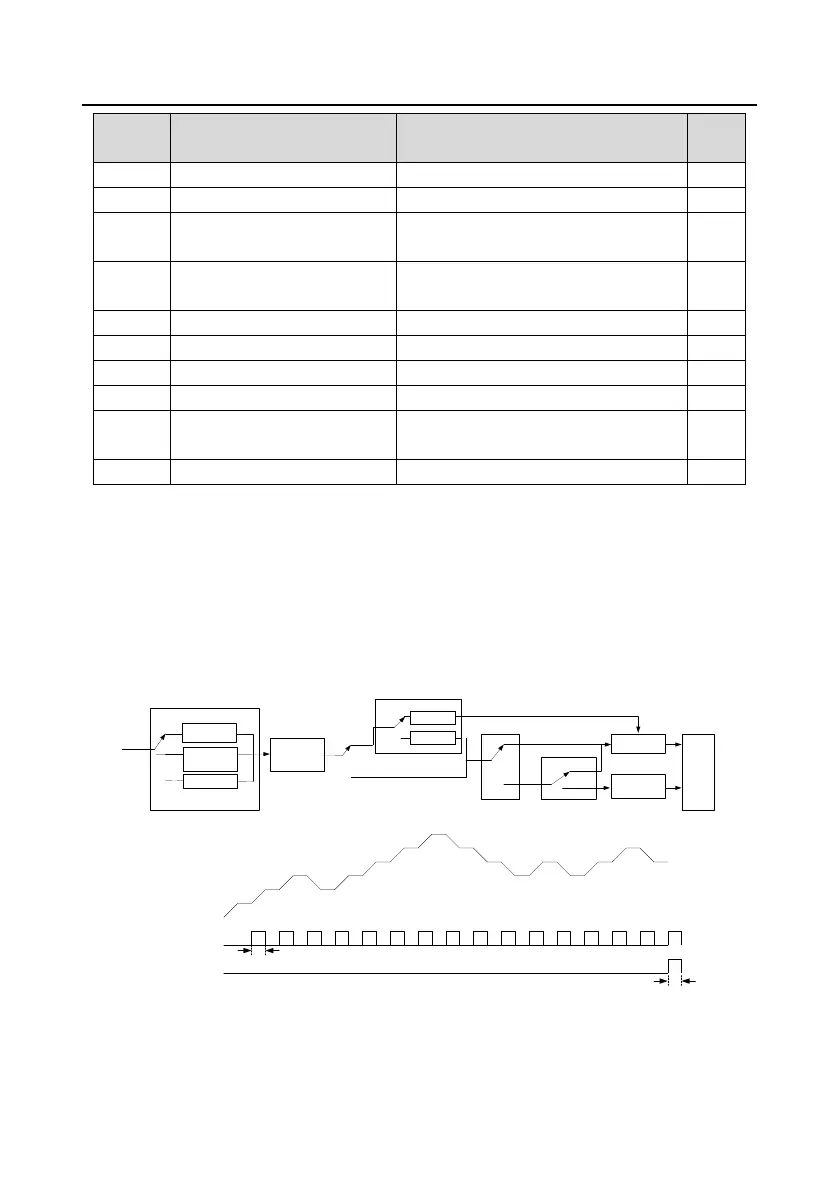

7.13 Simple PLC
Simple PLC function is also a multi-step speed generator. The VFD can change the running frequency,
direction to meet the need of processing according to the running time automatically. In the past, this
function needs to be assisted by external PLC, but now the VFD can realize this function by itself.
The series VFDs can control 16-stage speed with 4 groups of ACC/DEC time.
The multi-function digital output terminals or multi-function relay output an ON signal when the set
PLC finishes a circle (or a stage).
Running
parameter setting
in all stages in
PLC
Restart from the
first stage
Restart form the
frequency of the
pause stage
Stop after
running one time
Run at the final
value after
running for one
time
Cycle
0
1
2
P10.00（simle PLC）
PLC method
0
1
0
1
0
1
Normal running
P10.01 (simple PLC memory selection)
Power off
without memory
Power off with
memory
P10.36
（PLC starting selection）
P17.00
Power off during
running
Terminal function 23
Simple PLC stop reset
Set frequency
200ms
200ms
Digital output 15
Simple PLC stage
completion
Digital output 20
Simple PLC cycle
completion
Relative parameters list:
