INVT Goodrive35 Series User Manual

Goodrive35 Series Closed-loop Vector Control VFD Dimension drawings
266
Model
W1
W2
W3
W4
H1
H2
D1
D2
Installation
hole
Weight (kg)
220 kW–280 kW
750
230
714
680
1410
1390
380
150
13\12
135
315 kW
750
230
714
680
1410
1390
380
150
13\12
137

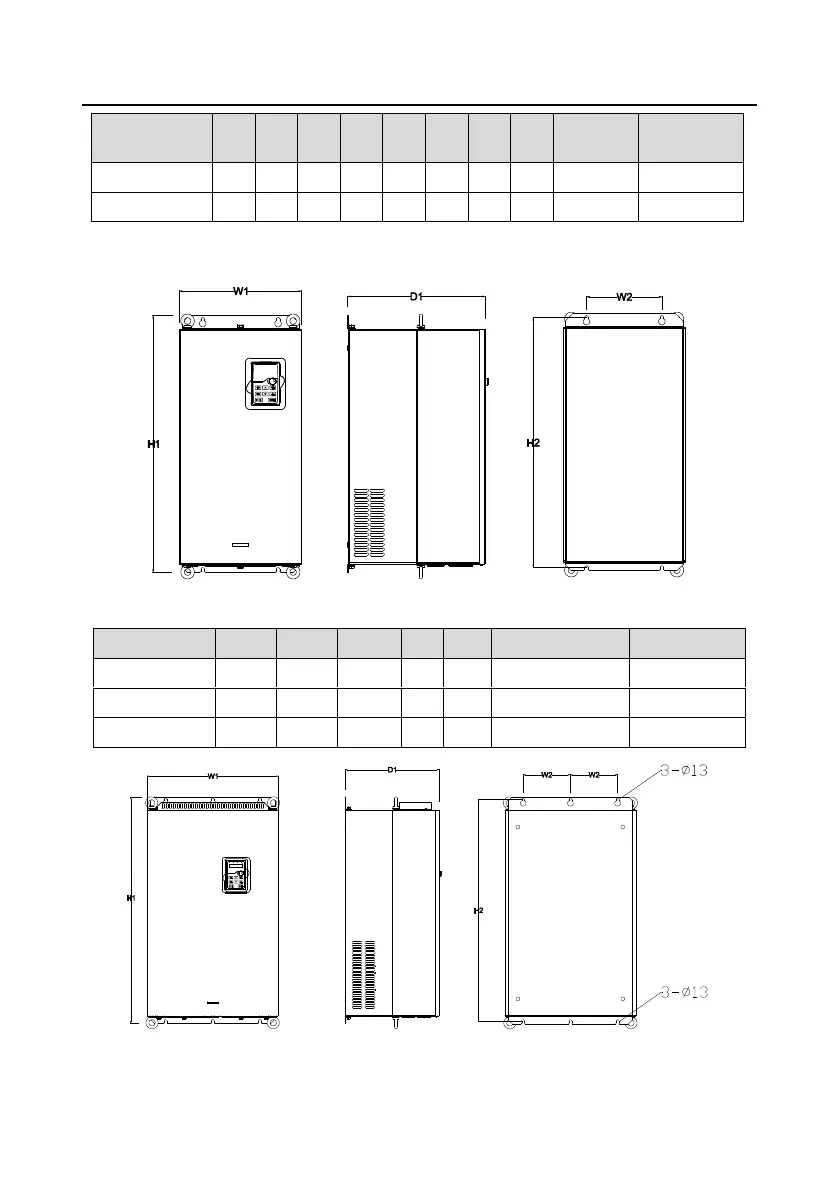

C.5 Dimensions for VFDs of AC 3PH 520 V (-15%)–690 V (+10%)
C.5.1 Wall installation (unit: mm)
Figure C-11 Wall installation of 660 V 22-132 kW VFDs
Model
W1
W2
H1
H2
D1
Installation hole
Weight (kg)
22 kW–45 kW
270
130
555
540
325
7
30
55 kW–132 kW
325
200
680
661
365
9.5
47
132 kW
325
200
680
661
365
9.5
85
Figure C-12 Wall installation of 660 V 160-220 kW VFDs
