4.3 Standard wiring

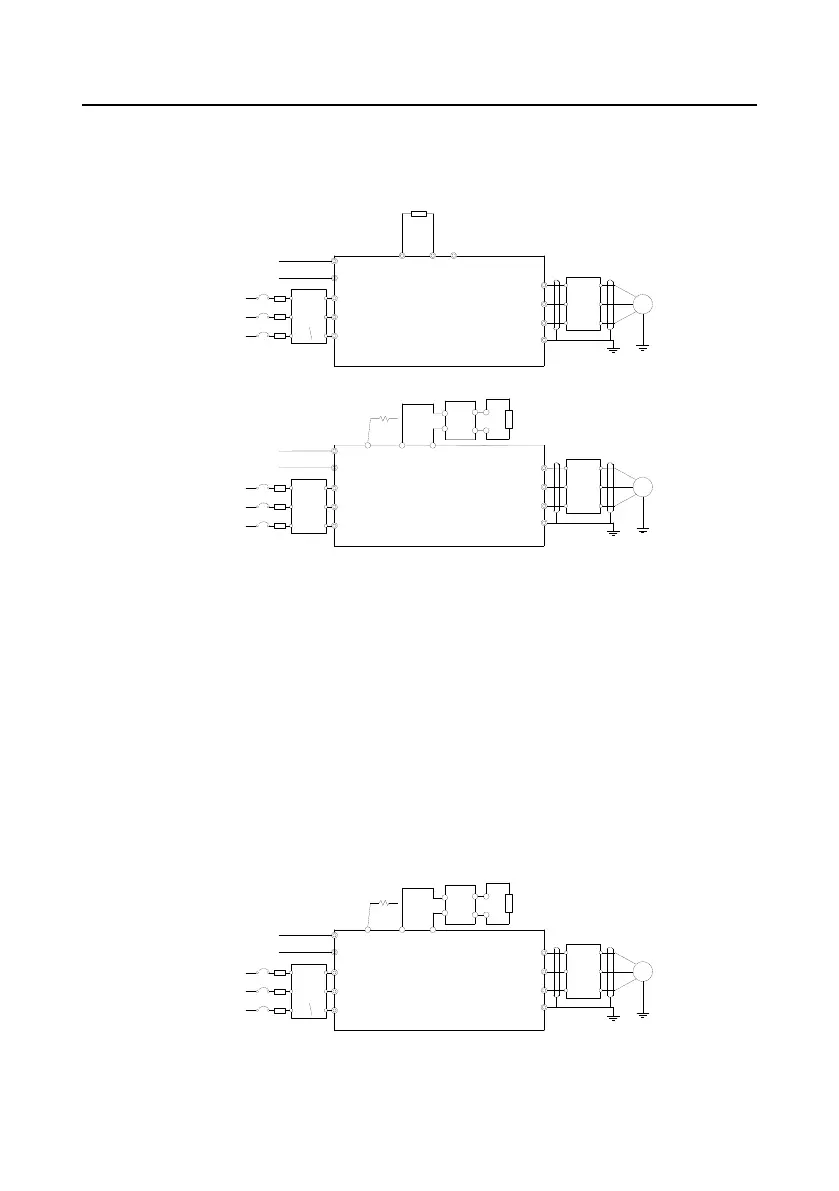

4.3.1 Main circuit connection diagram
4.3.1.1 For VFDs of AC 3PH 380 V (-15%)–440 V (+10%)
R
S
T
W
V
U
PE
M
30kW and below
(+)
PB
3PH power supply
380V±15%
50/60Hz
Brake resistor
Input
reactor
Input
filter
Fuse
A1
A2
1PH 220V optional
Output
reactor
Output
filter
(-)
R
S
T
W
V
U
PE
M
37kW and above
P1
(+)
DC reactor
3PH power supply
380V±15%
50/60Hz
(-)
Input
reactor
Input
filter
Fuse
A1
A2
Output
reactor
Output
filter
DC-
Brake resistor
DC+
Brake unit
1PH 220V optional
Figure 4-7 Connection diagram of main circuit for the VFDs of 380 V
Note:
1. The fuse, DC reactor, brake unit, brake resistor, input reactor, input filter, output reactor, and output
filter are optional parts. Please refer to Appendix D "Optional peripheral accessories" for detailed
information.
2. A1 and A2 are optional parts.
3. P1 and (+) are short circuited in factory for the VFDs of 380 V (≥37 kW), if need to connect with the
DC rector, please remove the contact tag between P1 and (+).
4. Before connecting the brake resistor cable, remove the yellow labels of PB, (+), and (-) from the
terminal blocks. Otherwise, poor connection may occur.
4.3.1.2 For VFDs of AC 3PH 520 V (-15%)–690 V (+10%)
R
S
T
W
V
U
PE
M
30kW and below
(+)
PB
3PH power supply
380V±15%
50/60Hz
Brake resistor
Input
reactor
Input
filter
Fuse
A1
A2
1PH 220V optional
Output
reactor
Output
filter
(-)
R
S
T
W
V
U
PE
M
37kW and above
P1
(+)
DC reactor
3PH power supply
380V±15%
50/60Hz
(-)
Input
reactor
Input
filter
Fuse
A1
A2
Output
reactor
Output
filter
DC-
Brake resistor
DC+
Brake unit
1PH 220V optional
Figure 4-8 Connection diagram of main circuit for the VFDs of 660 V
