INVT Goodrive35 Series User Manual

Goodrive35 Series Closed-loop Vector Control VFD Dimension drawings
262
C.4 Dimensions for VFDs of AC 3PH 380 V (-15%)–440 V (+10%)
C.4.1 Wall installation (unit: mm)

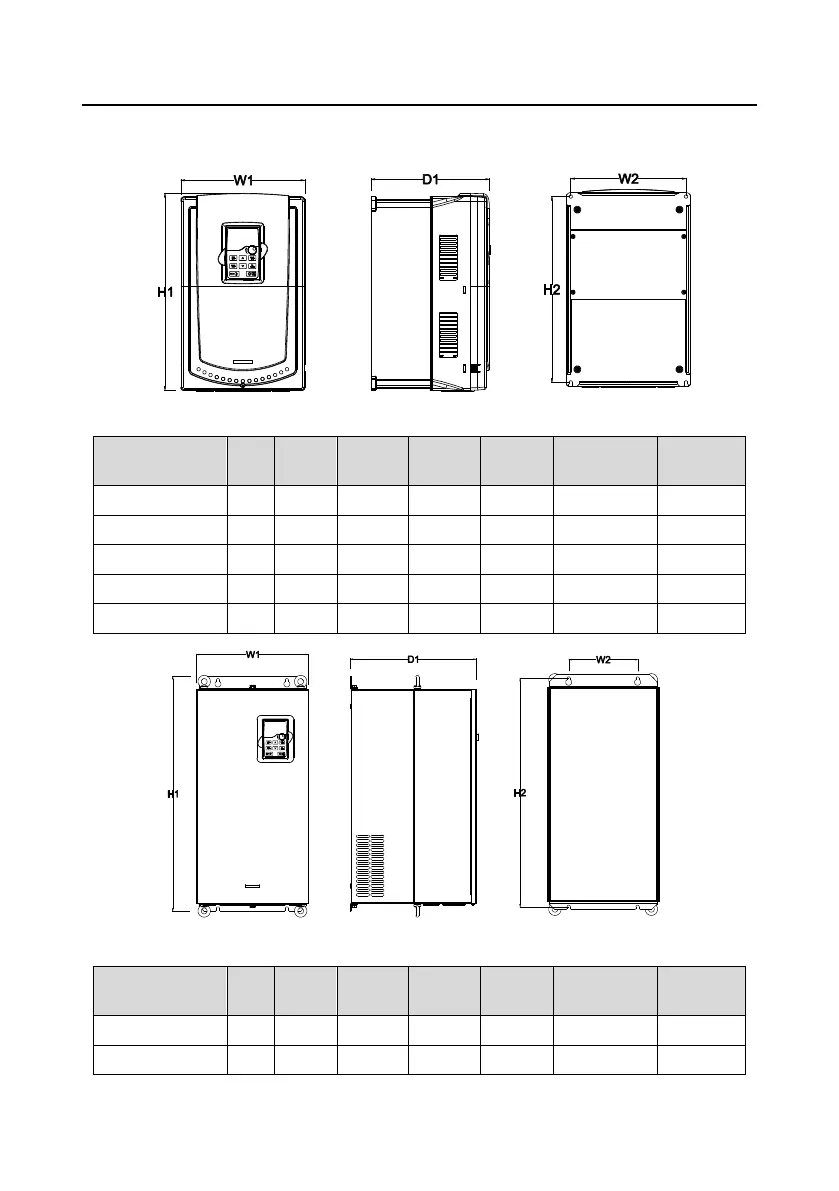

Figure C-3 Wall installation of 380 V 1.5-30 kW VFDs
Model
W1
W2
H1
H2
D1
Installation
hole
Weight
(kg)
1.5 kW–2.2 kW
126
115
193
175
174.5
5
2
4 kW–5.5 kW
146
131
263
243.5
181
6
3.5
7.5 kW–11 kW
170
151
331.5
303.5
216
6
6
15 kW–18.5 kW
230
210
342
311
216
6
7.8
22 kW–30 kW
255
237
407
384
245
7
9.5
Figure C-4 Wall installation of 380 V 37-110 kW VFDs
Model
W1
W2
H1
H2
D1
Installation
hole
Weight
(kg)
37 kW–55 kW
270
130
555
540
325
7
30
75 kW–110 kW
325
200
680
661
365
9.5
47
