INVT Goodrive35 Series User Manual

Goodrive35 Series Closed-loop Vector Control VFD Keypad operation procedures
42
P07.06 can select the parameter to be displayed or not by bit and》/SHIFT can shift the parameters
form left to right, QUICK/JOG (P07.02=2) can shift the parameters from right to left.
5.3.3 Displayed state of fault
If the VFD detects the fault signal, it will enter into the fault pre-alarm displaying state. The keypad will
display the fault code by flicking. The TRIP LED on the keypad is on, and the fault reset can be
operated by the STOP/RST on the keypad, control terminals or communication commands.
5.3.4 Displayed state of function codes editing
In the state of stopping, running or fault, press PRG/ESC to enter into the editing state (if there is a
password, see P07.00).The editing state is displayed on two classes of menu, and the order is:
function code group/function code number→function code parameter, press DATA/ENT into the
displayed state of function parameter. On this state, you can press DATA/ENT to save the parameters
or press PRG/ESC to retreat.
Displayed state of
stopping parameters
Displayed state of
running parameters
Displayed state of
fault parameters
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
Hz
RPM
A
%
V
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
Hz
RPM
A
%
V
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
Hz
RPM
A
%
V
RUN
STOP
RST
RUN
STOP
RST
RUN
STOP
RST
PRG
ESC
DATA
ENT
SHIFT
QUICK
JOG
PRG
ESC
DATA
ENT
SHIFT
QUICK
JOG
PRG
ESC
DATA
ENT
SHIFT
QUICK
JOG

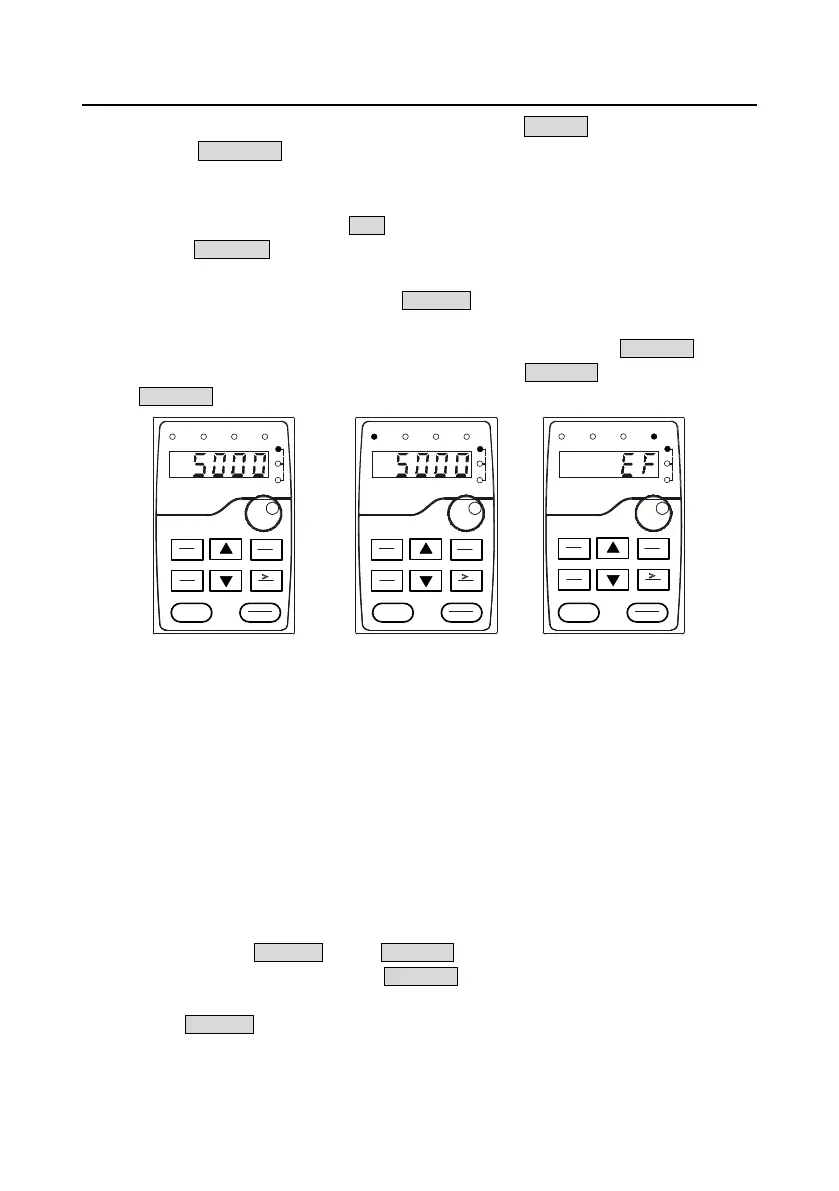

Figure 5-2 Displayed state
5.4 Keypad operation
Operate the VFD via operation panel. See the detailed structure description of function codes in the
brief diagram of function codes.
5.4.1 How to modify the function codes of the VFD
The VFD has three levels menu, which are:
1. Group number of function code (first-level menu)
2. Tab of function code (second-level menu)
3. Set value of function code (third-level menu)
Remarks: Press both the PRG/ESC and the DATA/ENT can return to the second-level menu from the
third-level menu. The difference is: pressing DATA/ENT will save the set parameters into the control
panel, and then return to the second-level menu with shifting to the next function code automatically;
while pressing PRG/ESC will directly return to the second-level menu without saving the parameters,
and keep staying at the current function code.
