INVT Goodrive35 Series User Manual

Goodrive35 Series Closed-loop Vector Control VFD Optional peripheral accessories
280

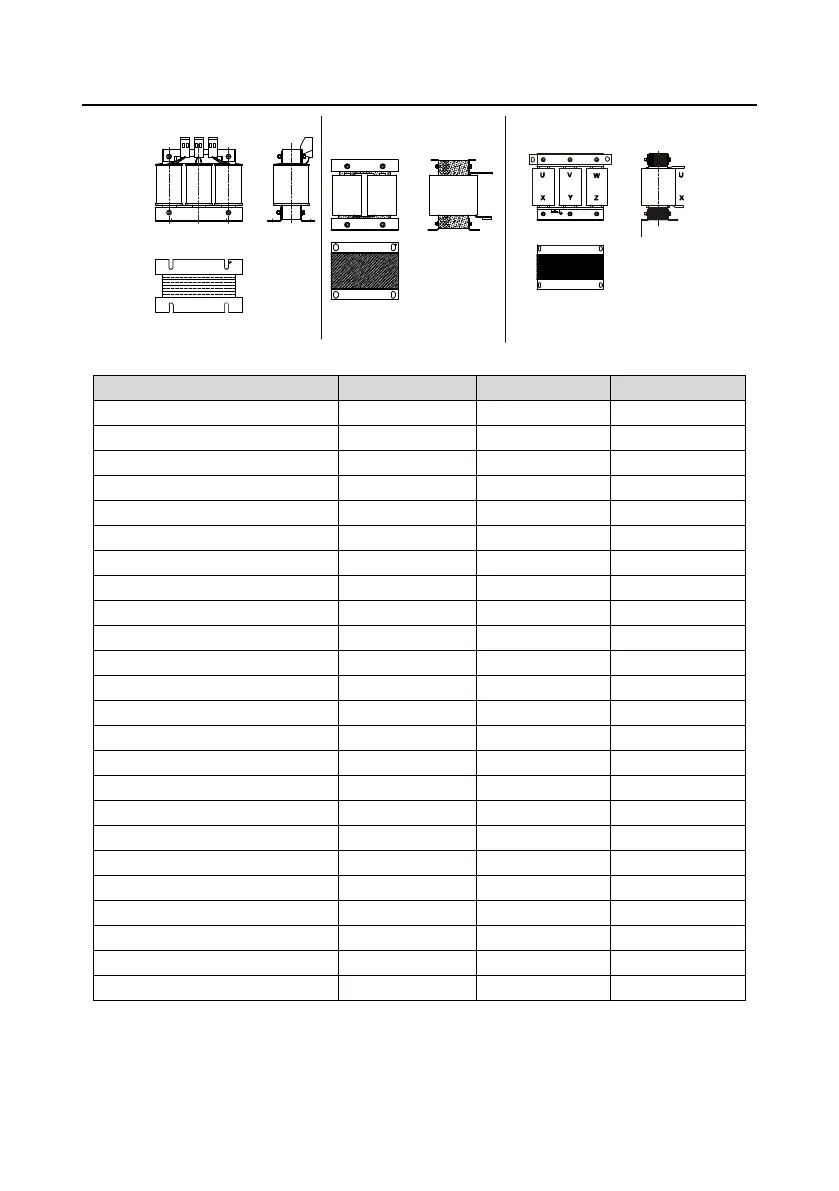

Input reactors
DC reactors Output reactors
D.6.1 Reactors for AC 3PH 380 V (-15%)–440 V (+10%)
Model
Input reactor
DC reactor
Output reactor
GD35-1R5-4-C1/D1/H1
ACL2-1R5-4
DCL2-2R2-4
OCL2-1R5-4
GD35-2R2-4-C1/D1/H1
ACL2-2R2-4
DCL2-2R2-4
OCL2-2R2-4
GD35-004-4-C1/D1/H1/H2
ACL2-004-4
DCL2-004-4
OCL2-004-4
GD35-5R5-4-C1/D1/H1/H2
ACL2-5R5-4
DCL2-7R5-4
OCL2-5R5-4
GD35-7R5-4- C1/D1/H1/H2
ACL2-7R5-4
DCL2-7R5-4
OCL2-7R5-4
GD35-011-4- C1/D1/H1/H2
ACL2-011-4
DCL2-015-4
OCL2-011-4
GD35-015-4-C1/D1/H1/H2
ACL2-015-4
DCL2-015-4
OCL2-015-4
GD35-018-4-C1/D1/H1/H2
ACL2-018-4
DCL2-022-4
OCL2-018-4
GD35-022-4-C1/D1/H1/H2
ACL2-022-4
DCL2-022-4
OCL2-022-4
GD35-030-4-C1/D1/H1/H2
ACL2-037-4
DCL2-030-4
OCL2-037-4
GD35-037-4-C1/D1/H1
ACL2-037-4
DCL2-2R2-4
OCL2-037-4
GD35-045-4-C1/D1/H1
ACL2-045-4
DCL2-045-4
OCL2-045-4
GD35-055-4-C1/D1/H1
ACL2-055-4
DCL2-055-4
OCL2-055-4
GD35-075-4-C1/D1/H1
ACL2-075-4
DCL2-075-4
OCL2-075-4
GD35-090-4-C1/D1/H1
ACL2-0110-4
DCL2-090-4
OCL2-110-4
GD35-110-4-C1/D1/H1
ACL2-110-4
DCL2-110-4
OCL2-110-4
GD35-132-4-C1/D1/H1
ACL2-160-4
DCL2-132-4
OCL2-160-4
GD35-160-4-C1/D1/H1
ACL2-160-4
DCL2-160-4
OCL2-200-4
GD35-185-4-C1/D1/H1
ACL2-200-4
DCL2-200-4
OCL2-200-4
GD35-200-4-C1/D1/H1
ACL2-200-4
DCL2-220-4
OCL2-200-4
GD35-220-4-C1/D1/H1
ACL2-280-4
DCL2-280-4
OCL2-280-4
GD35-250-4-C1/D1/H1
ACL2-280-4
DCL2-280-4
OCL2-280-4
GD35-280-4-C1/D1/H1
ACL2-280-4
DCL2-280-4
OCL2-280-4
GD35-315-4-C1/D1/H1
ACL2-350-4
DCL2-315-4
OCL2-350-4
Note:
1. The rated input voltage drop of input reactors is 2%±15%.
2. The current adjustment coefficient on the input side of the VFD is higher than 90% after a DC
