Goodrive35 Series Closed-loop Vector Control VFD Installation guide
16
Running
environment
condition
Install the VFD on a site described as follows:
Far away from electromagnetic radiation sources;
Without oil mist, corrosive gas, flammable gas, or other contaminative air;
Keeping foreign objects, such as metal power, dust, oil, and water, from dropping
into the VFD (do not install it on the flammable materials such as wood);
Without radioactive and flammable materials;
Without harmful gas or liquid;
With less salt spray;
Without direct sunlight.
IWhen the altitude exceeds 1000m but is lower than 3000m, derate 1% for every
additional 100m;
When the altitude exceeds 2000m, configure an isolation transformer on the input
end of the VFD.
When the altitude exceeds 3000m but is lower than 5000m, contact us for
technical consultation. Do not use the VFD at an altitude higher than 5000m.
The VFD should be installed in upright position to ensure sufficient cooling effect.
Note:
1. Goodrive35 series VFDs should be installed in a clean and well ventilated environment according
to enclosure classification.
2. Cooling air must be clean, free from corrosive materials and electrically conductive dust.
4.2.2 Installation direction
The VFD may be installed on the wall or in a cabinet.
The VFD must be installed in an upright position. Check the installation site according to the
requirements below. Refer to Appendix C "Dimension drawings" for frame details.
a. Vertical installation
b. Level installation
c. Transverse installation
OK NG NG

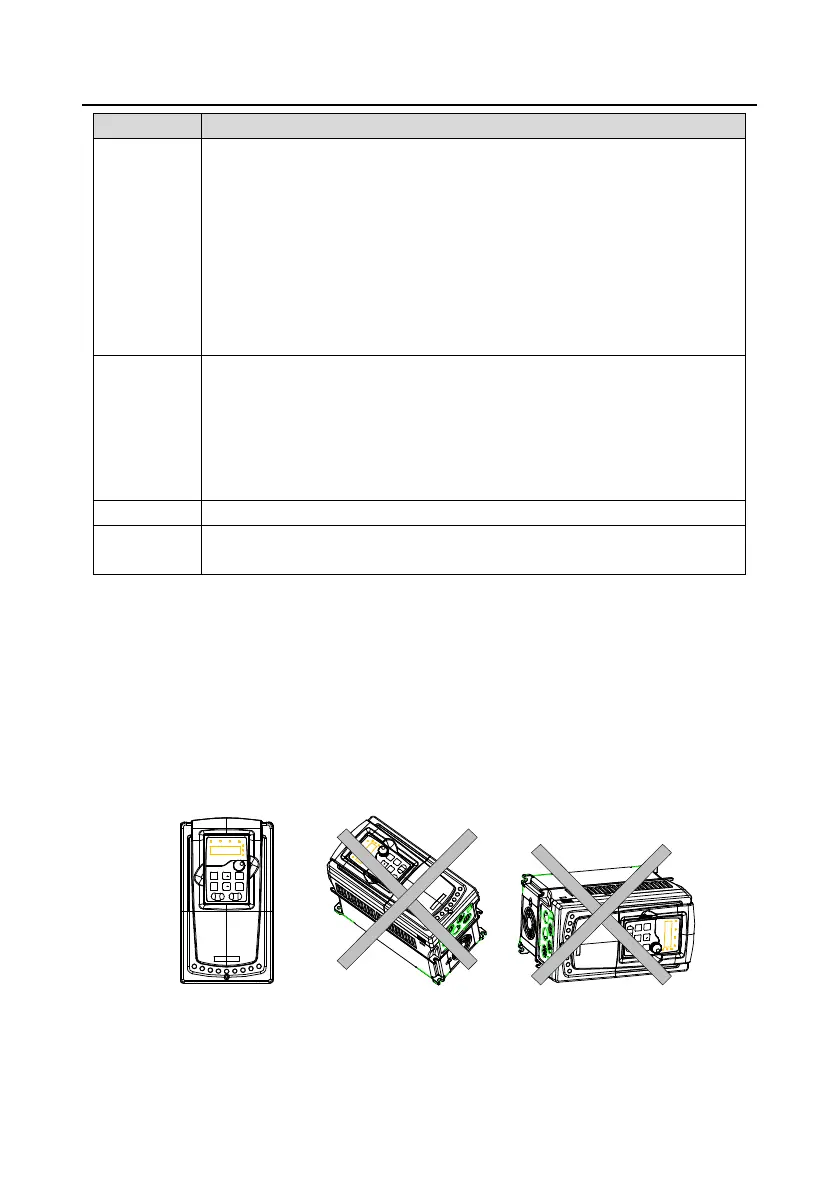

Figure 4-1 Installation direction of the VFD
4.2.3 Installation manner
The VFD can be installed in three different ways, depending on the frame size:
To Next Page
