INVT IPE300 Series User Manual

IPE300 series engineering VFD Function parameter list
-224-

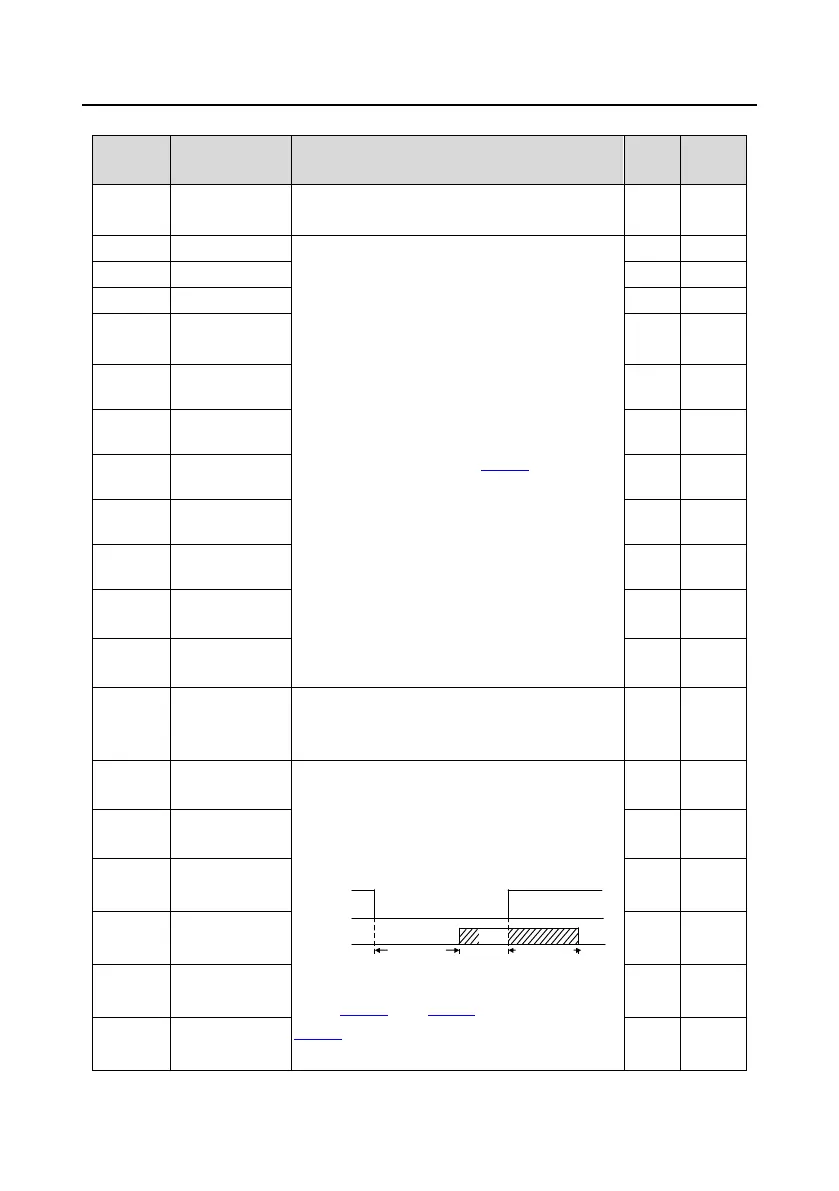

P26 group––I/O card output functions
Function
code
Name
Description
Default
Modify
P26.00
HDO2 output
type
0: Open collector high-speed pulse output
1: Open collector output
0
◎
P26.01
HDO2 output
Same as the description for P06.01
0
○
P26.02
Y2 output
0
○
P26.03
Y3 output
0
○
P26.04
Relay RO3
output
0
○
P26.05
Relay RO4
output
0
○
P26.06
Relay RO5
output
0
○
P26.07
Relay RO6
output
0
○
P26.08
Relay RO7
output
0
○
P26.09
Relay RO8
output
0
○
P26.10
Relay RO9
output
0
○
P26.11
Relay RO10
output
0
○
P26.12
Extension card
output terminal
polarity
0x0000–0x7FF
RO10, RO9…RO3, HDO2,Y3, Y2 in sequence
0x000
○
P26.13
HDO2 switch-on
delay
Used to specify the delay time corresponding to
the electrical level changes when the
programmable output terminals switch on or
switch off.
Y electric level
Y valid
Invalid
Switch on
delay
invalid
Valid
Switch off
delay
Setting range: 0.000–50.000s
Note: P26.13 and P26.14 are valid only when
P26.00=1.
0.000s
○
P26.14
HDO2 switch-off
delay
0.000s
○
P26.15
Y2 switch-on
delay
0.000s
○
P26.16
Y2 switch-off
delay
0.000s
○
P26.17
Y3 switch-on
delay
0.000s
○
P26.18
Y3 switch-off
delay
0.000s
○
