IPE300 series engineering VFD Extension card
-314-

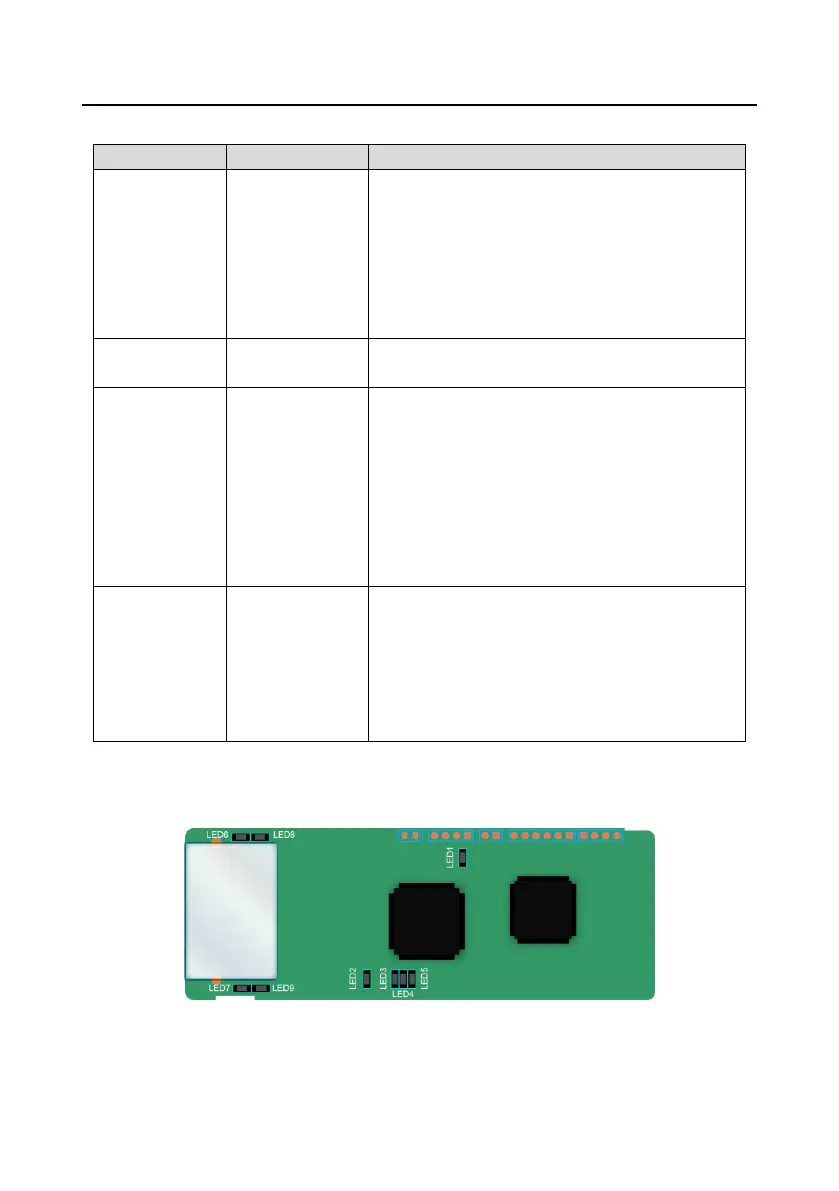

Indicator definition:
This indicator is on when the extension card is
establishing a connection with the control board;
it blinks periodically after the extension card is properly
connected to the control board (the period is 1s, on for
0.5s, and off for the other 0.5s);
and it is off when the extension card is disconnected
from the control board.
This indicator is on after the control board feeds power
to the communication card.
This indicator is on when the communication card is in
the working state.
It is off when a fault occurs. Check whether the reset pin
of the communication card and the power supply are
properly connected.
It blinks when the communication card is in the
pre-operation state.
It blinks once when the communication card is in the
stopped state.
This indicator is on when the CAN controller bus is off or
a fault occurs on the VFD.
It is off when the communication card is in the working
state.
It blinks when the address setting is incorrect.
It blinks once when a received frame is missed or an
error occurs during frame receiving.
For details about the operation, see the Goodrive350 Series VFD Communication Extension Card
Operation Manual.
A.7.4 PROFINET communication card (EC-TX509)
The terminal CN2 adopts standard RJ45 interfaces, which are in the dual design, and the two RJ45
interfaces are not distinguished from each other and can be interchangeably inserted. They are
arranged as follows:
