IPE300 series engineering VFD Extension card
-324-
A.8.4 Multi-function incremental PG card (EC-PG505-12)

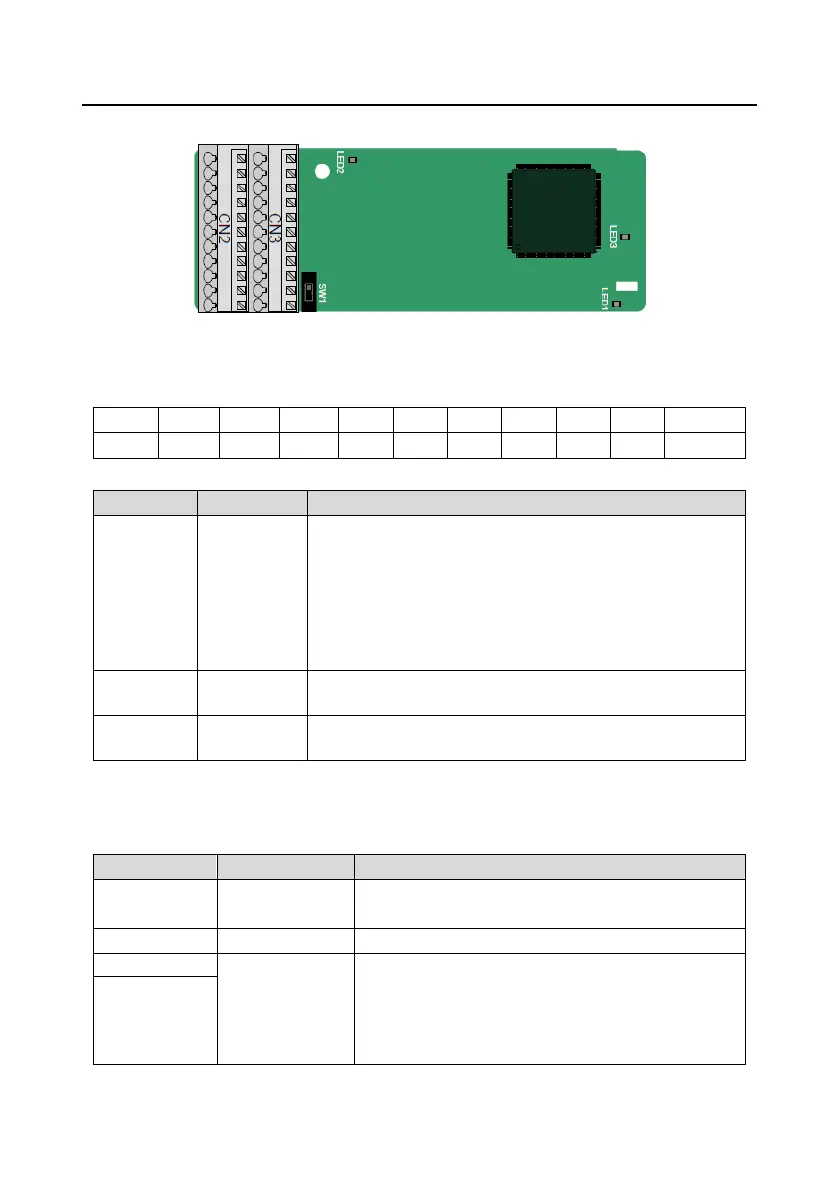

The terminals are arranged as follows:
The dual in-line package (DIP) switch SW1 is used to set the voltage class (5V or 12V) of the power
supply of the encoder. The DIP switch can be operated with an auxiliary tool.
Indicator definition:
This indicator is on when the extension card is establishing a
connection with the control board;
it blinks periodically after the extension card is properly connected
to the control board (the period is 1s, on for 0.5s, and off for the
other 0.5s);
and it is off when the extension card is disconnected from the
control board.
This indicator is off only when A1 or B1 signal is disconnected
during encoder rotating; and it is on in other cases.
This indicator is on after the control board feeds power to the PG
card.
The EC-PG505-12 extension card can be used in combination with multiple types of incremental
encoders through different modes of wiring. It is user-friendly, adopting spring terminals.
EC-PG505-12 terminal function description:
It is connected to the ground for enhancing the
anti-interference performance.
PCB internal power ground
Voltage: 5V/12V ± 5%
Max. output: 150 mA
Select the voltage class through SW1 based on the
voltage class of the used encoder. (PGND is isolation
power ground)
