INVT IPE300 Series User Manual

IPE300 series engineering VFD Basic operation guidelines
-61-
Function
code
Name
Description
Default
P03.21
Braking torque
upper limit set
through keypad
0.0–300.0% (of the motor rated current)
180.0%
P17.09
Output torque
-250.0–250.0%
0.0%
P17.15
Torque reference
value
-300.0–300.0% (of the motor rated current)
0.0%
5.5.6 Motor parameters
 Check the safety conditions surrounding the motor and load machineries before
autotuning as physical injury may occur due to sudden start of motor during
autotuning.
 Although the motor does not run during static autotuning, the motor is still supplied
with power. Do not touch the motor during autotuning; otherwise, electric shock
may occur. Do not touch the motor before autotuning is completed.
 If the motor has been connected to a load, do not carry out rotary autotuning.
Otherwise, the VFD may malfunction or may be damaged. If rotary autotuning is
carried out on a motor which has been connected to a load, incorrect motor
parameter settings and motor action exceptions may occur. Disconnect from the
load to carry out autotuning if necessary.

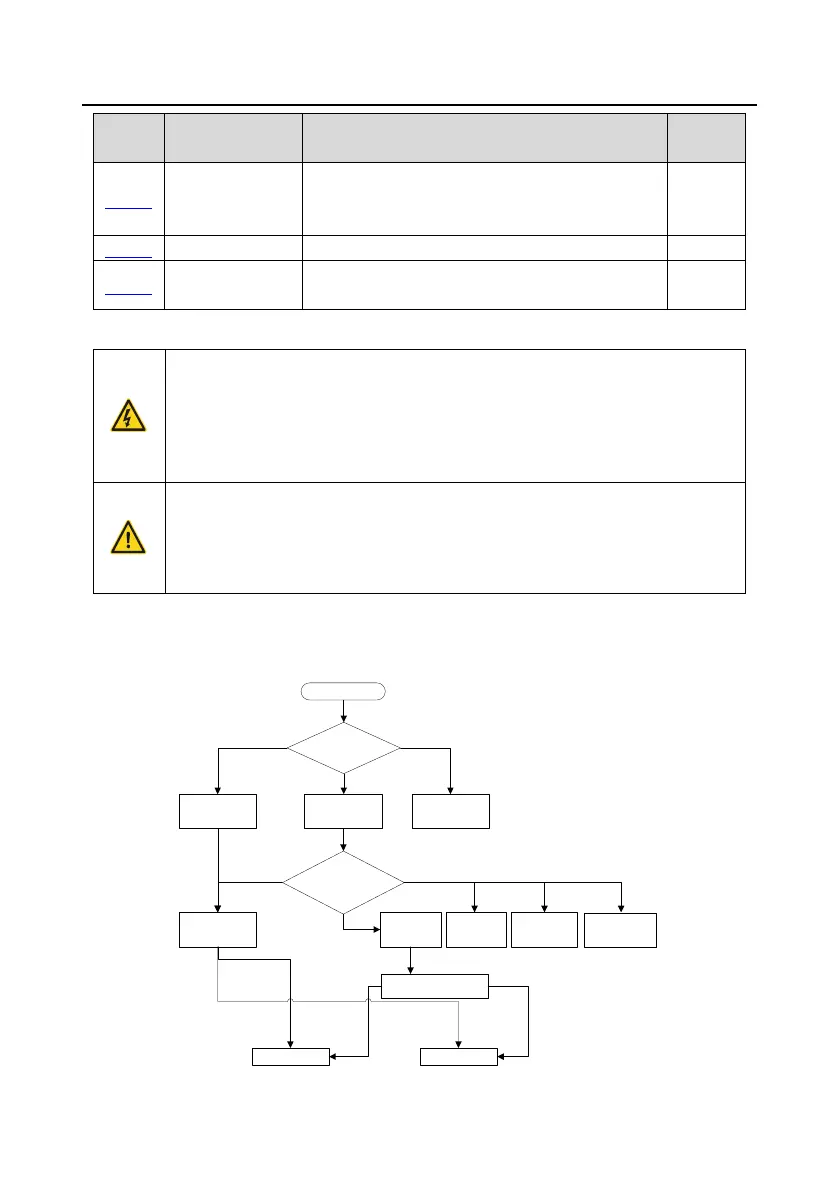

The VFD can drive both asynchronous motors and synchronous motors, and it supports two sets of
motor parameters, which can be switched over by multifunction digital input terminals or
communication modes.
Keypad (P00.01=0)
Terminal
(P00.01=1)
Communication
(P00.01=2)
MODBUS
communication
PROFIBUS
CANopen
communication
Start
Select running
command channel
(P00.01)
The switch-over
channel for motor 1 and
motor 2 (P08.31)
Terminal function 35
Motor 1 switches to
motor 2
Communication setting value
2009H
Motor 1 Motor 2
Invalid
Valid
BIT0–1=00
BIT0–1=01
P08.31 set LED
ones to 0
Ethernet
communication
P08.31 set LED
ones to 1
P08.31 sets
ones to 2
P08.31 sets
ones to 3
EtherCAT/Profinet
communication
P08.31 sets
ones to 4
