INVT IPE300 Series User Manual

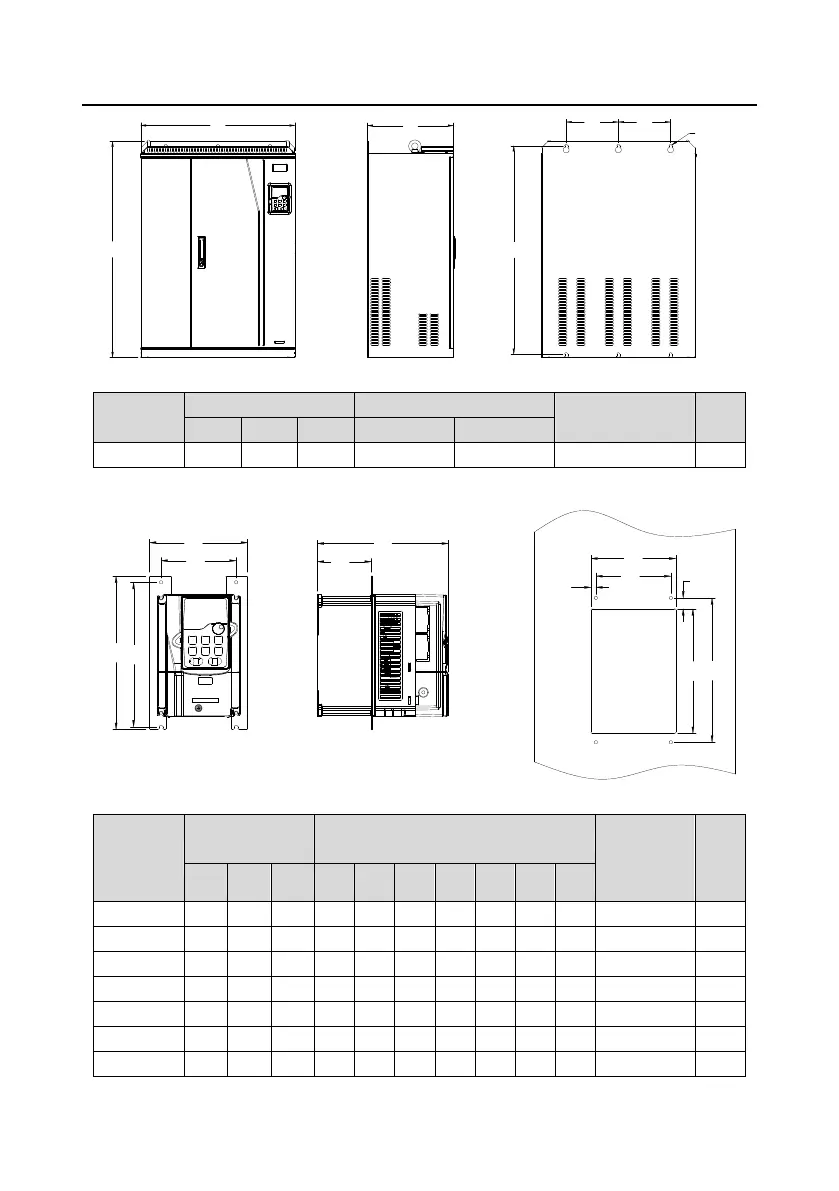

IPE300 series engineering VFD Dimension drawings
-342-
W1
W2
D1
H1 H2
6- ø13.0
W2
Figure C-9 Wall-mounting drawing for the 380V 0220–0315 models
VFD model
Outer dimension (mm)
Installation dimension (mm)
Hole diameter
(mm)
Fixing
screw
W1
H1
D1
W2
H2
0220–0315
680
960
380
230
926
13
M12
C.4.2 Flange installation dimensions
H1 H2
W1
W2
D1
D2
W3
W2
W4
H4
H2H3
Figure C-10 Flange installation diagram for 380V 01R5–0075 models
VFD model
Outer dimension
(mm)
Installation dimension (mm)
Hole
diameter
(mm)
Fixing
screw
W1
H1
D1
W2
H2
D2
W3
H3
W4
H4
01R5–02R2
150.2
234
185
115
220
65.5
130
190
7.5
13.5
5
M4
0004–05R5
150.2
234
201
115
220
83
130
190
7.5
13.5
5
M4
07R5
170.2
292
192
131
276
84.5
150
260
9.5
6
6
M5
0011–0015
191.2
370
220
151
351
113
174
324
11.5
12
6
M5
0018–0022
266
371
208
250
250
104
224
350.6
13
20.3
6
M5
0030–0037
316
430
223
300
300
118.3
274
410
13
55
6
M5
0045–0075
352
580
258
332
400
133.8
306
570
12
80
9
M8
