INVT IPE300 Series User Manual

IPE300 series engineering VFD Installation guidance
-19-

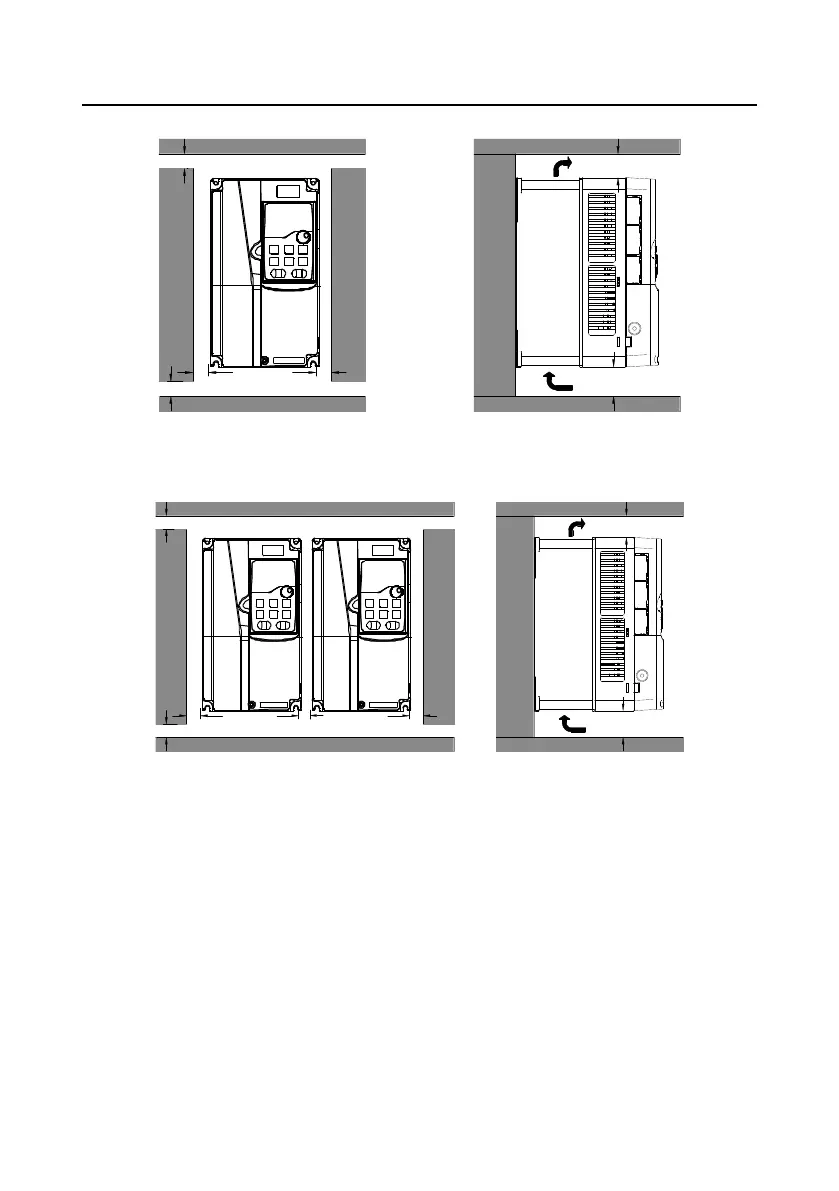

4.2.4 Single-unit installation
Cold air
Hot air
C
C
A
B
A
B
Figure 4-3 Single-unit installation
Note: The minimum space of B and C is 100mm.
4.2.5 Multiple-unit installation
Hot air
Cold air
C
C
A
A
B B
D
Figure 4-4 Parallel installation
Note:
 When you install VFDs in different sizes, align the top of each VFD before installation for the
convenience of future maintenance.
 The minimum space of B, C and D is 100mm.
