GZD15, WSM TRANSAXLE
2-M8

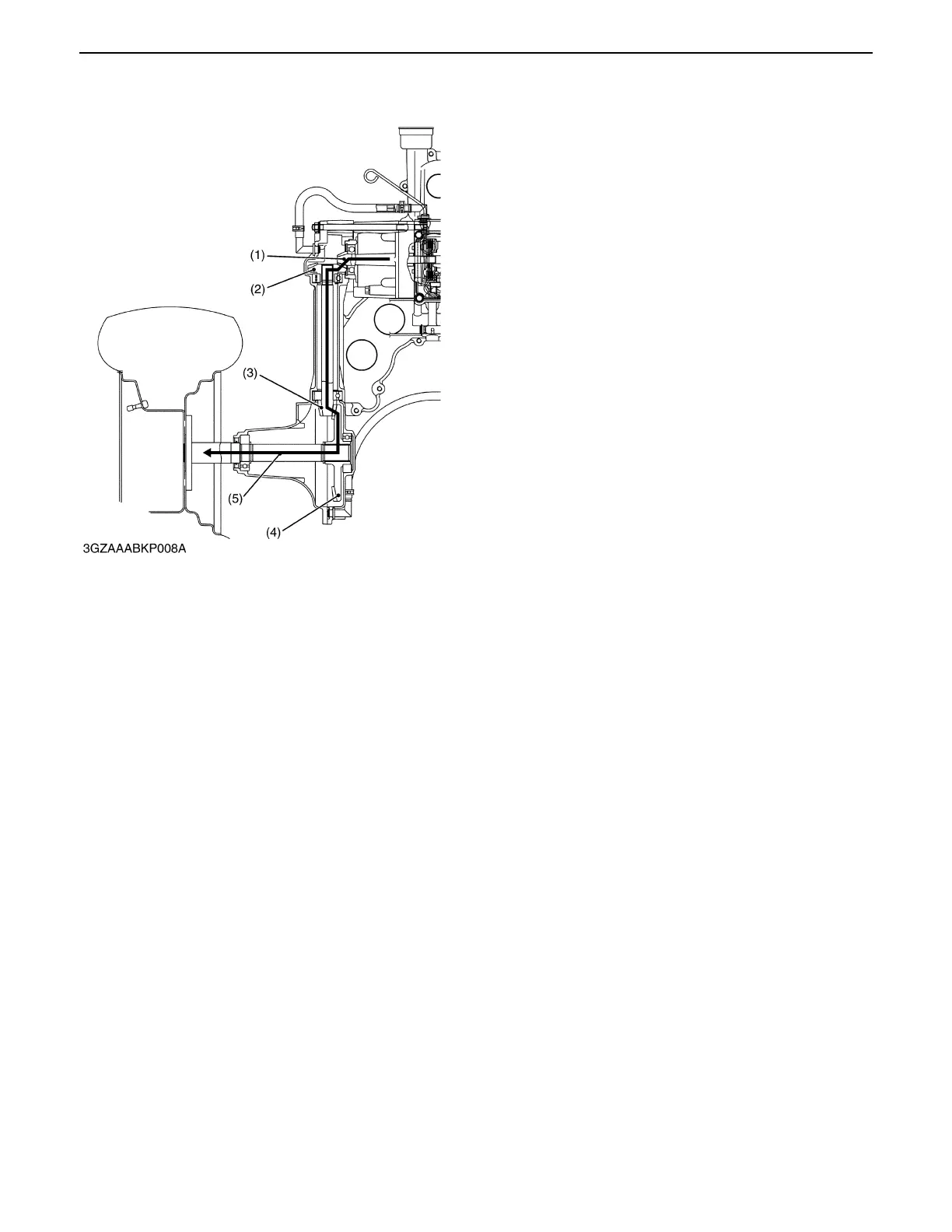

(7) Final Reduction Gear Section
As for this machine, power is transmitted from the 8T
gear (1) on the HST motor shaft to the rear axle (5)
through 23T gear (2), 7T gear (3) and 48T gear (4).
(1) 8T Gear (4) 48T Gear
(2) 23T Gear (5) Rear Axle
(3) 7T Gear
0000001608E
KiSC issued 04, 2006 A

Kubota GZD15 Specifications

General

Transmission	Hydrostatic
Drive Type	2WD
Engine Type	Diesel
Engine Power	15 HP
Weight	640 kg
