GZD15, WSM FRONT AXLE
3-S4
4. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING

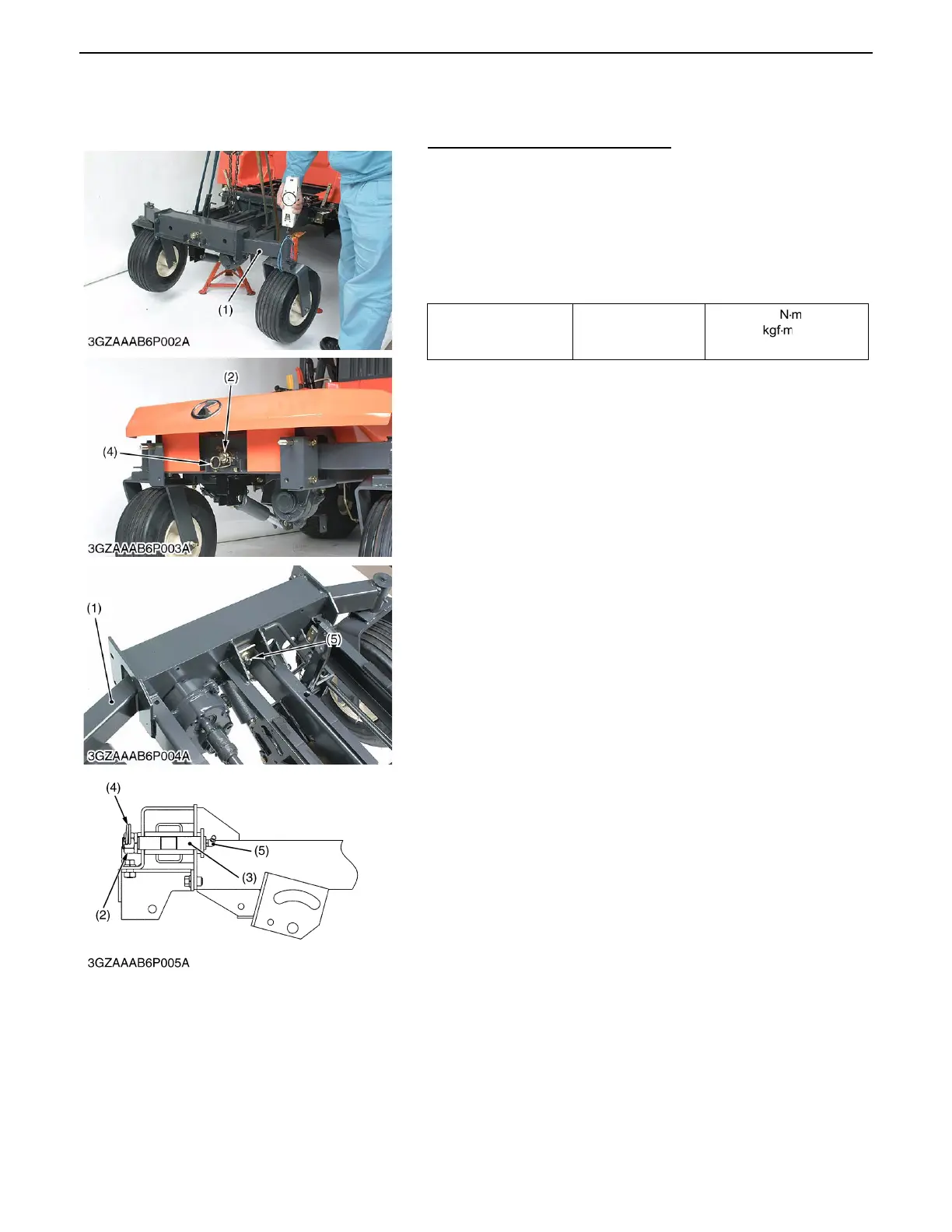

Adjusting Front Axle Rocking Force
1. Lift the front axle (1).
2. Measure the front axle rocking force with a push-pull gauge.
3. If the measurement is not within the factory specifications,
adjust with the slottle nut (2).
4. Set the centre pin setting spring pin (4) to the centre pin (3).
(When reassembling)
Grease nipple of centre pin should be installed to upside.
Front axle rocking force Factory spec.
9.8 to 147.1
1.0 to 15
7.2 to 108.5 ft-lbs
(1) Front Axle (4) Centre Pin Setting Spring Pin
(2) Slotted Nut (5) Grease Nipple
(3) Centre Pin
0000001501E
