GZD15, WSM HYDRAULIC SYSTEM
4-M15
[2] GRASS COLLECTOR CONTROL MECHANISM

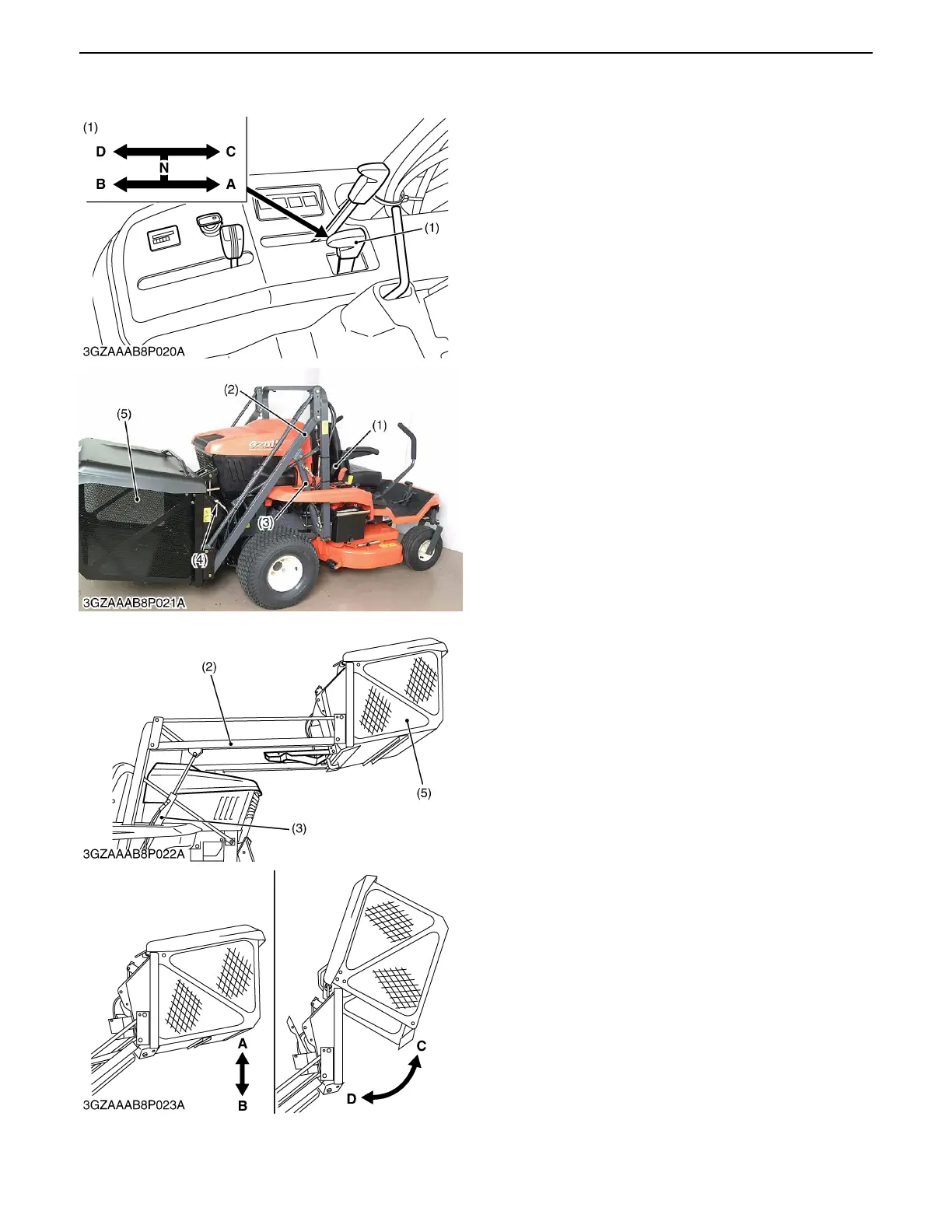

B Grass Collector Lifting and Lowing Mechanism
Grass collector lift arm (2) is connected with two lift
cylinders (3).
When the grass collector control lever (1) is set to the
"UP" (A) position, hydraulic oil is delivered to the lift
cylinders (3).
The lift cylinders (3) are extended and lift the lift arms
(2). And grass collector is lifted up.
When the grass collector control lever (1) is set to the
"DOWN" (B) position, hydraulic oil is delivered to the lift
cylinders (3). The lift cylinders (3) are shortened and
lowers the lift arms. And grass collector (5) is lowered
down.
B Grass Collector Dumping and Closing
Mechanism
After lifting up the grass collector, the restriction wire
connected to the lift arm (right side) opens the guide
located at the grass collector control lever (1).
After that, this control lever (1) is set to the "DUMP"
(C) position, hydraulic oil is delivered to the dump
cylinder (4).
The dump cylinder is shortened.
The grass collector is opened.
When the control lever (1) is set to the "CLOSED" (D)
position, the dump cylinder (4) is extended. And the
grass collector is closed.
(1) Grass Collector Control A: UP
Lever B: DOWN
(2) Lift Arm C: DUMP
(3) Lift Cylinder D: CLOSE
(4) Dump Cylinder N: NEUTRAL
(5) Grass Collector
0000001584E
