GZD15, WSM TRANSAXLE
2-S11
5. DISASSEMBLING AND ASSEMBLING
[1] SEPARATING TRANSAXLE
Draining Transmission Fluid
A Be sure to stop the engine before checking and changing
the transmission fluid.
1. Place an oil pan underneath the transmission case.
2. Remove the drain plugs (1) at the bottom of the transmission
case and drain the oil completely.
Remove the clamp and hose (4) from L shape adaptor (5) at
the rear axle gear case (RH & LH) bottom and drain rear axle
gear case (RH & LH) fluid.
3. After draining, screw in the drain plug.
4. Fill new oil from filling port after removing the filling plug (3) up
to the upper notch on the dipstick.
5. After running the engine for a few minutes, stop it and check
the oil level again, if low, add oil to prescribed level.
A Use only multi-grade transmission oil. Use of other oils
may damage the transmission or hydraulic system.
Refer to "LUBRICANTS, FUEL AND COOLANT" (See
page G-7.).
A Never work the tractor immediately after changing the
transmission oil. Keeping the engine at medium speed
for a few minutes prevents damage to the transmission.
A Do not mix different brands oil together.
Battery
A When disconnecting the battery cables, disconnect the
negative cable from the battery first. When connecting,
connect the positive cable to the battery first.
1. Disconnect the negative cable (2) from the battery.
2. Disconnect the positive cable (1) from the battery.
Removing Engine
1. See "ENGINE" Section.
Transmission case and rear axle gear
case (RH and LH) capacity
10.0 L
2.6 U.S.gals.
2.2 Imp.gals.

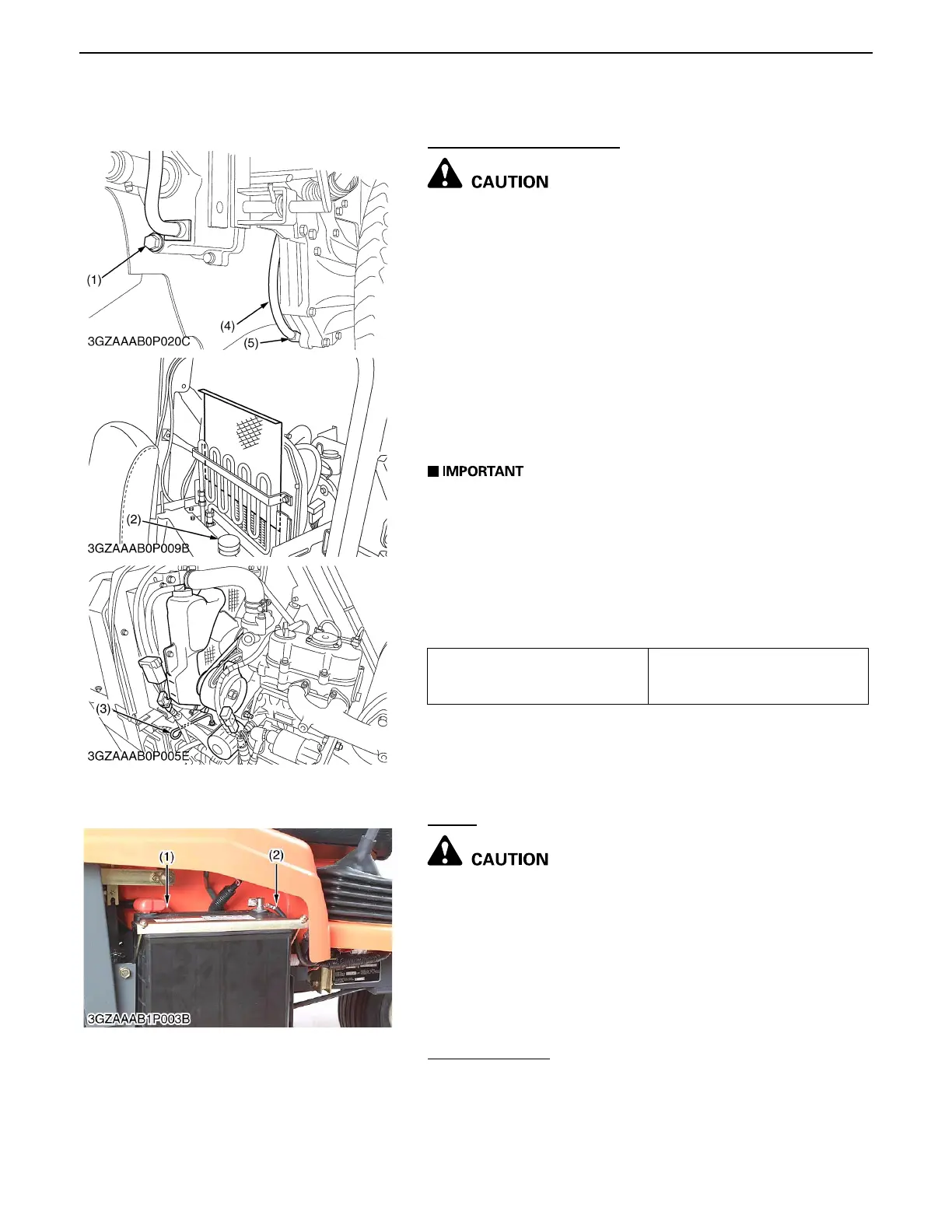

(1) Drain Plug (4) Hose
(2) Oil Plug and Breather Cap (5) L Shape Adaptor
(3) Dipstick
0000001628E
(1) Positive Cable (2) Negative Cable
0000001629E
0000001630E
