GZD15, WSM MOWER
6-S6

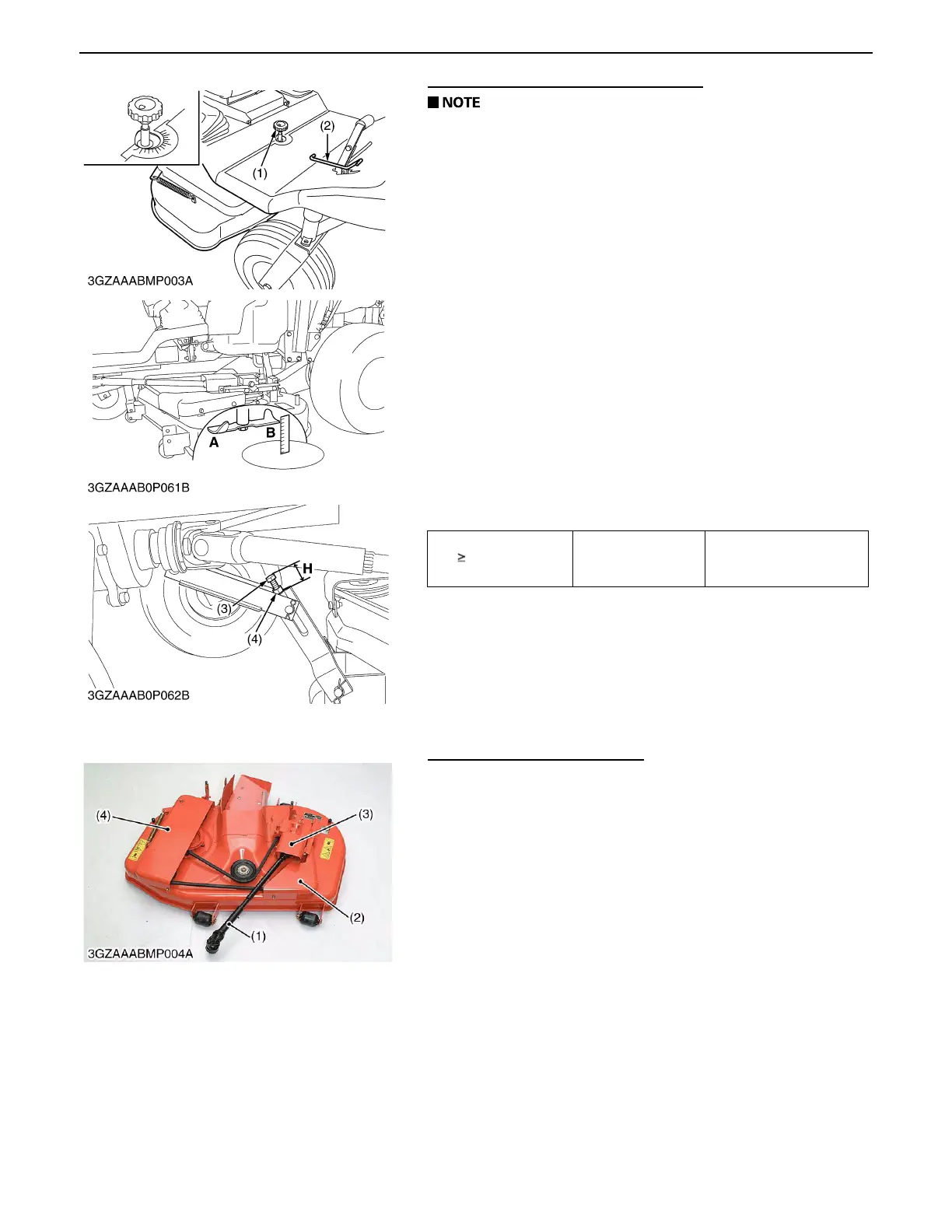

Adjusting Front and Rear Cutting Height
A Mower deck anti-scalp rollers should not contact the
ground.
1. Wheel pressure must be correct.
2. Raise up the mower deck to the transport position. (Also the
top end).
3. Turn the cutting height set dial (1) to the 3 in. cutting height
position.
4. Position the right mower blade in the Front-to-Right position.
5. Lower the mower deck.
6. Loosen the lock nuts (4) of the front side of the machine.
7. Adjust the cutting height fine tuning bolts (3) to set 80 mm (3
1/8 in.) height.
8. Lock the nuts (4).
9. Adjust the other side equally.
10.Measure the heights of blade (A) and (B) from the ground
surface and calculate the difference.
11.If the difference between front tip and rear tip of blade is not
within the factory specification, adjust the length H of cutting
height fine tuning bolt with lock nut (4). The height of rear
blade tip (B) should be bigger than the front.
[2] DISASSEMBLING AND ASSEMBLING
Universal Joint and Belt Covers
1. Remove the left and right belt covers (2), (3) and (4).
2. Remove the universal joint (1).
Difference ((B) - (A))
((B) (A)) between front
tip and rear tip of blade
Factory spec.
0 to 6.0 mm
0 to 0.24 in.
(1) Cutting Height Control Dial (H) Length of Cutting Height Fine
(2) Hydraulic Control Lever Tuning Bolt
(3) Cutting Height Fine Tuning Bolt (A) Height of Blade Tip (Front)
(4) Lock Nut (B) Height of Blade Tip (Rear)
0000001556E
(1) Universal Joint (3) Belt Cover
(2) Belt Cover (4) Belt Cover
0000001557E
To Next Page
