GZD15, WSM HYDRAULIC SYSTEM
4-S9
1. Remove the grip (1).
2. Remove the lift rod (2).
3. Remove the cam (3).
4. Remove the mower rear link (9) and the rear arm (8).
5. Remove the rear boss (7) and the lift shaft (6).
(When reassembling)
A Apply grease around the rear boss (7).
A Do not damage the retain spring plate (4).
[3] GRASS COLLECTOR LIFT CYLINDER
(1) Disassembling and Assembling
Removing Grass Collector Lift Cylinder
1. Disconnect the hydraulic hoses (5) from the adaptors (4).
2. Remove the pins (1) and the clevis pins (2).
3. Remove the lift cylinder (3) from the machine.
(When reassembling)
A Note the directions the adaptor (4).

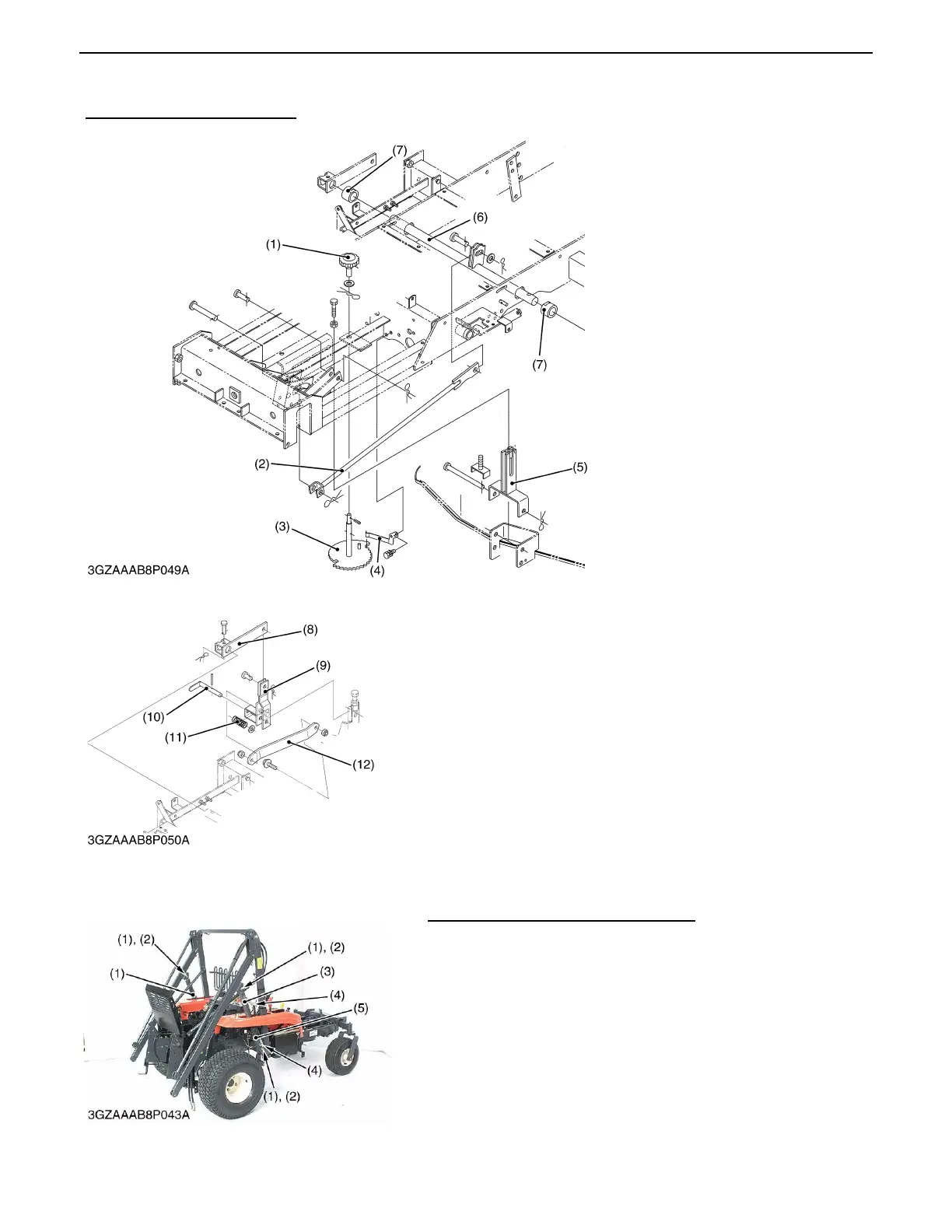

Disassembling Mower Linkage
(1) Grip
(2) Lift Rod
(3) Cam
(4) Retain Spring Plate
(5) Mower Front Link
(6) Lift Shaft
(7) Rear Boss
(8) Rear Arm
(9) Mower Rear Link
(10) Hinge Pin
(11) Hinge Spring
(12) Mower Link Retainer
0000001596E
0000001597E
(1) Pin (4) Adaptor
(2) Clevis Pin (5) Hydraulic Hose
(3) Lift Cylinder
0000001598E
