GZD15, WSM TRANSAXLE
2-M9
(8) PTO System
The GZD series equipped with hydraulic independent PTO clutch (wet multi-plates type). Therefore, the engine
power could engage or disengage to the PTO shaft (6) without stopping the machine movement.
The PTO clutch pack (1) has five clutch discs (10), five clutch plates (12), pressure plate, clutch piston and so on.
The clutch piston is actuated by hydraulic oil flow from the hydraulic pump through the regulator valve (5).

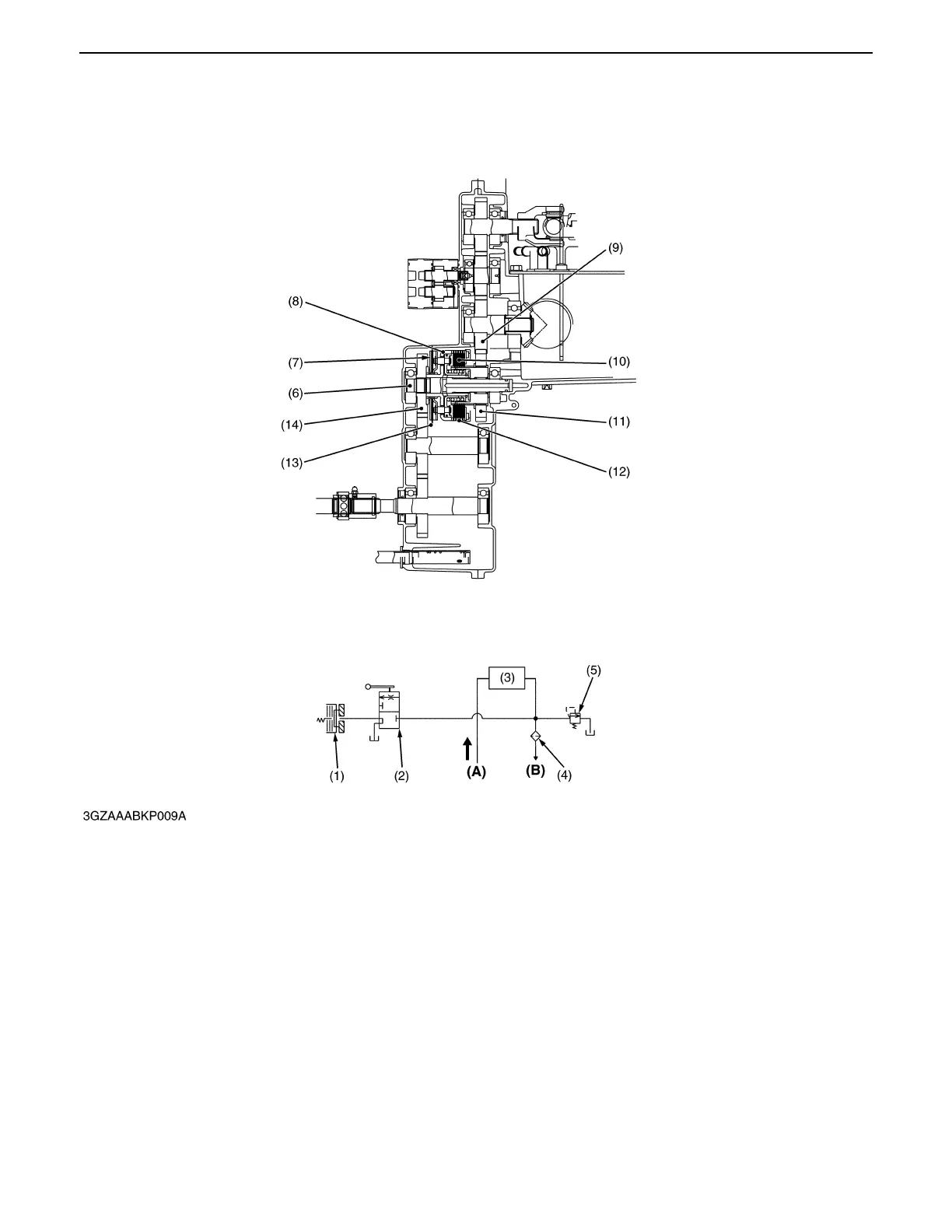

B PTO Clutch and Valve
(1) PTO Clutch Pack (6) PTO Clutch Shaft (11) 33T Gear A: From Hydraulic Pump
(1) PTO Clutch Valve (7) PTO Brake Plate (12) PTO Clutch Plate B: To Hydrostatic
(3) Control Valve (8) PTO Clutch Case (13) PTO Brake Disc Transmission
(4) Oil Filter (9) 26T Gear (HST Shaft) (14) 28T Gear
(5) Regulator Valve (10) PTO Clutch Disk
0000001609E
To Next Page
