GZD15, WSM TRANSAXLE
2-S22

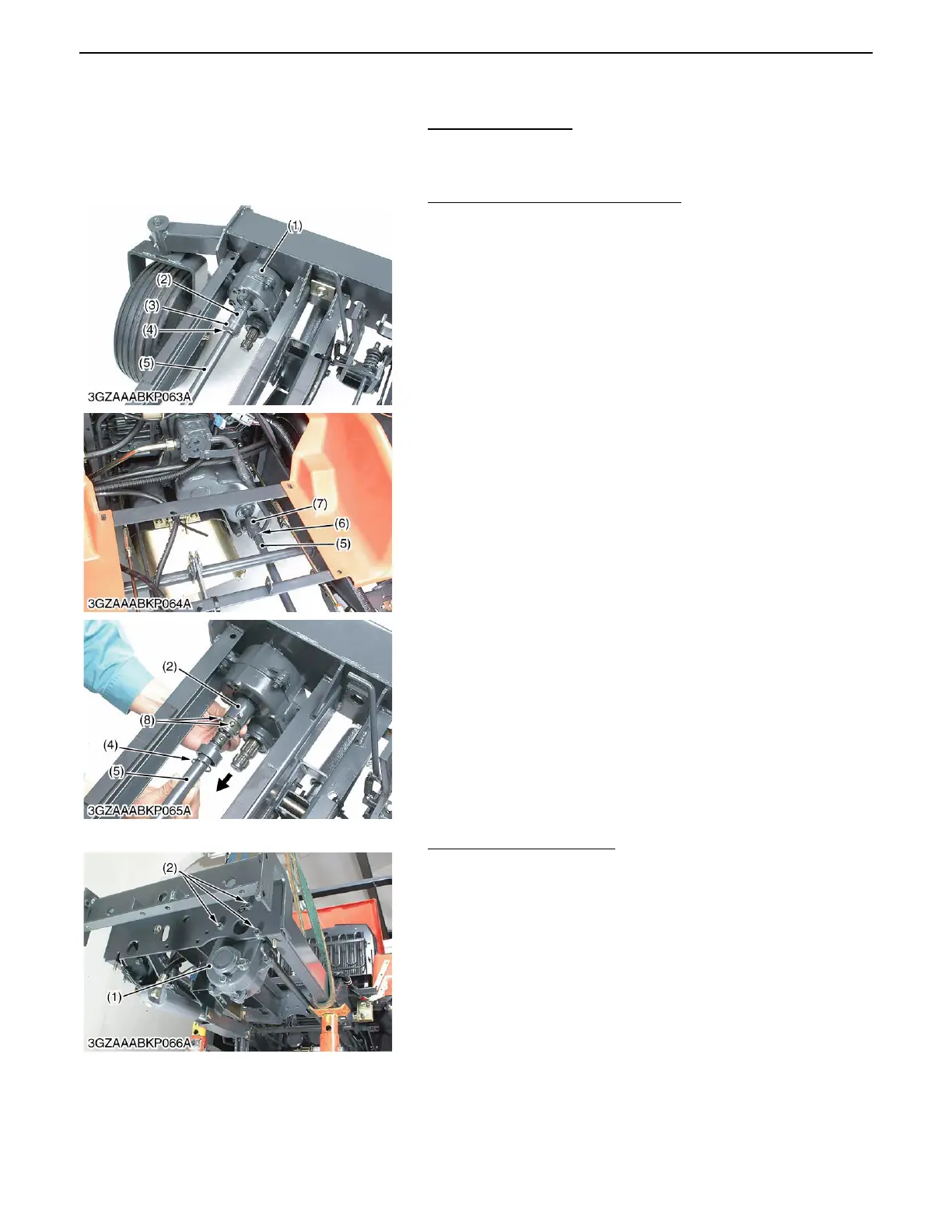

[2] SEPARATING FRONT PTO CASE
Removing Front Axle
See "FRONT AXLE" Section.
Moving Front PTO Shaft Spline Boss
1. Detach the external circlip (1) from the outer spline boss (3).
2. Move the outer spline boss (3) to the rear side.
3. Take the balls (8) from inner spline boss (2).
4. Move the inner spline boss (2) to the rear side.
5. Move the rear side spline boss (7) as the front side spline
boss.
(When reassembling)
1. Apply grease to the balls (8) not to drop.
Removing Front PTO Case
1. Remove the bolts (2).
2. Remove the front PTO case (1) from machine body.
0000001651E
(1) Front Axle Case (5) Front PTO Shaft
(2) Inner Spline Boss (6) External Circlip
(3) Outer Spline Boss (7) Spline Boss
(4) External Circlip (8) Ball
0000001652E
(1) Front PTO Case (2) Bolt
0000001653E
To Next Page
