3. HANDLING PRECAUTIONS FOR ELECTRICAL PARTS
AND WIRING
To ensure safety and prevent damage to the machine and
surrounding equipment, heed the following precautions in
handling electrical parts and wiring.
A Check electrical wiring for damage and loosened
connection every year. To this end, educate the customer
to do his or her own check and at the same time
recommend the dealer to perform periodic check for a fee.
A Do not attempt to modify or remodel any electrical parts
and wiring.
A When removing the battery cables, disconnect the
negative cable first. When installing the battery cables,
connect the positive cable first.
[1] WIRING
A Securely tighten wiring terminals.
A Do not let wiring contact dangerous part.
A Securely insert grommet.

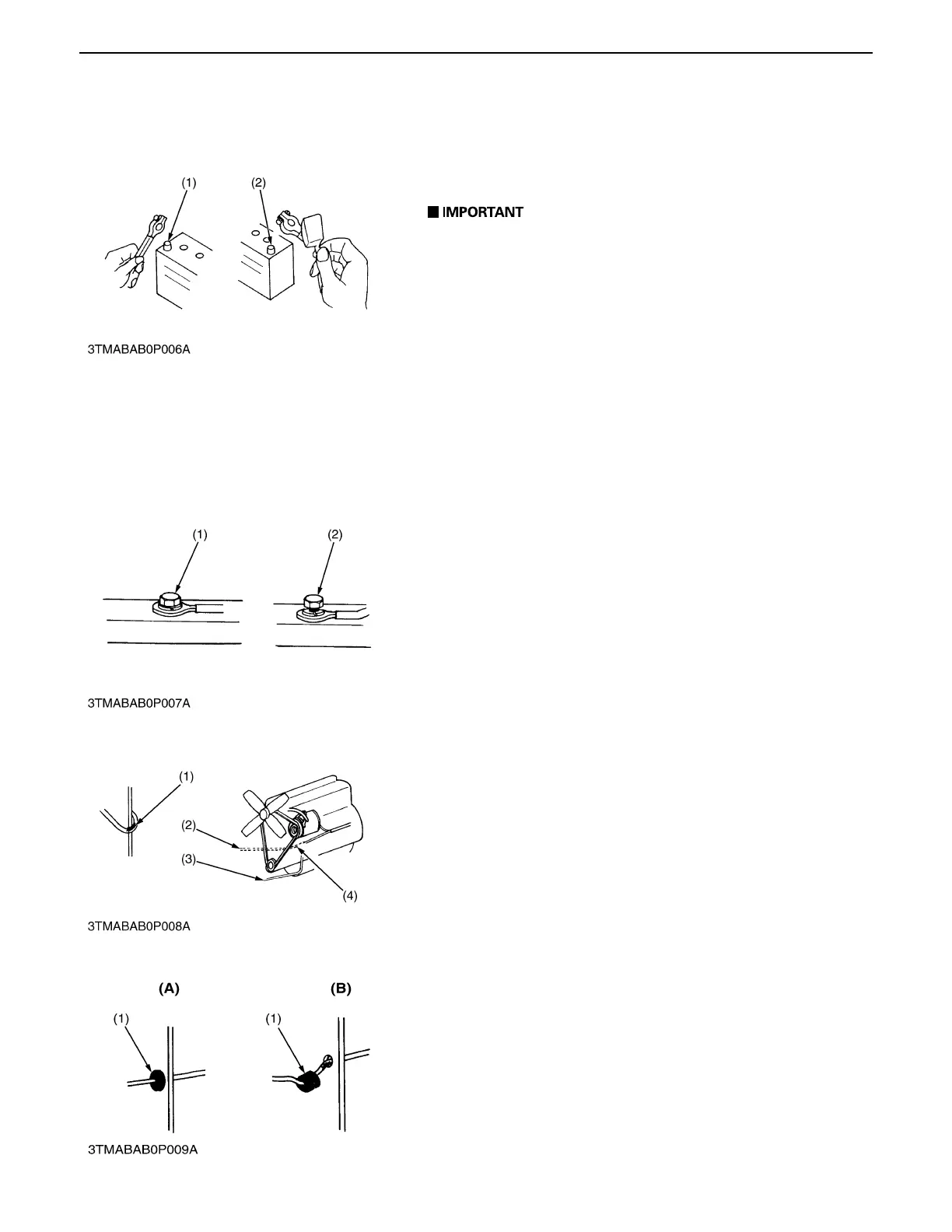

(1) Negative Terminal (2) Positive Terminal
0000000613E
(1) Correct (2) Incorrect
(Securely Tighten) (Loosening Leads to Faulty
Contact)
0000000614E
(1) Dangerous Part (3) Wiring (Correct)
(2) Wiring (Incorrect) (4) Dangerous Part
0000000615E
(1) Grommet (A) Correct
(B) Incorrect
0000000616E
