[2] CHECK POINTS OF INITIAL 50 HOURS
Changing Engine Oil
A Be sure to stop the engine before changing oil.
1. Raise the grass collector from the machine.

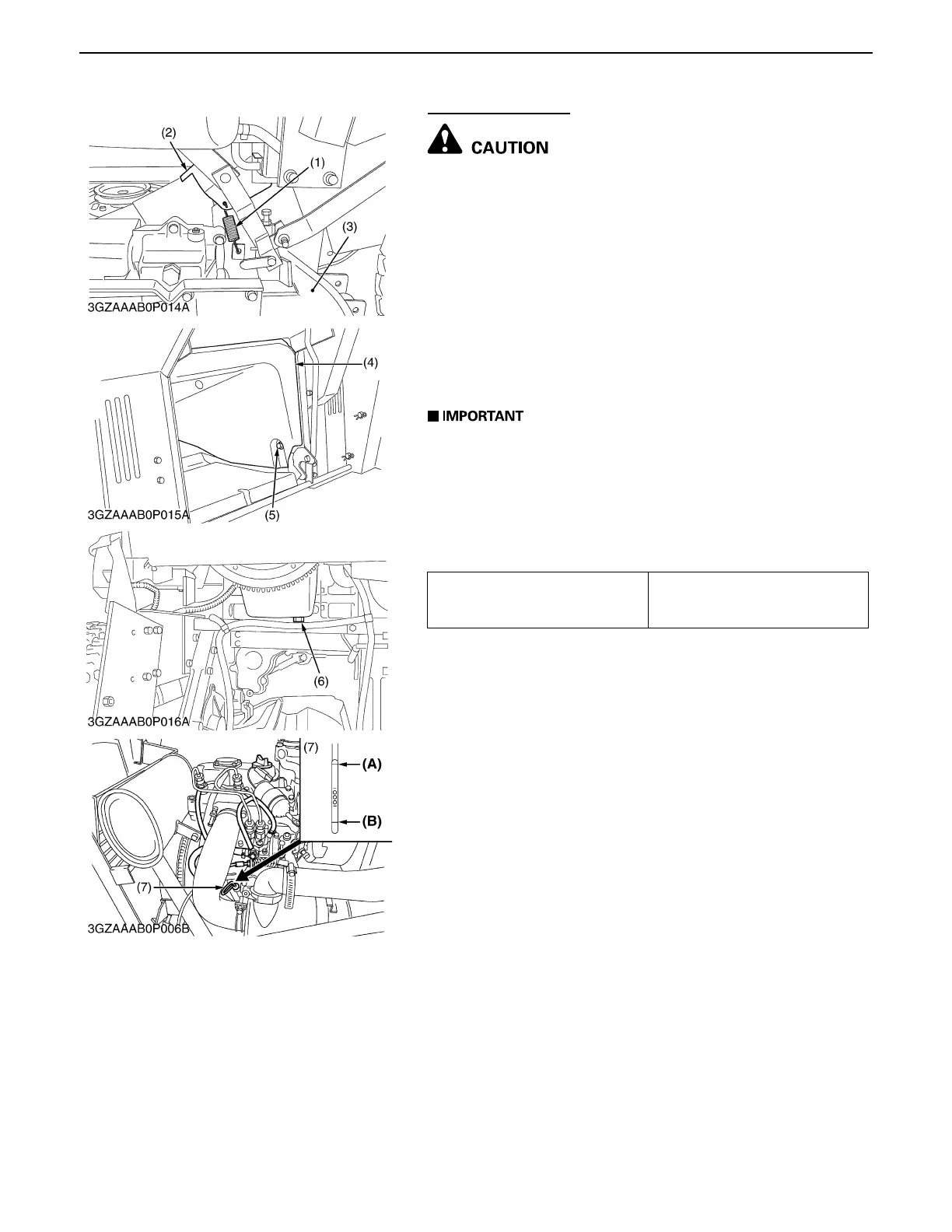

2. Remove the spring (1) connecting the cover duct (2) and the
mower deck (3).
3. Remove the bolts (5) and duct (4).
4. To change the used oil, remove the drain plug at the bottom of
the engine and drain the oil completely. The used oil can be
drained out more easily if the engine is warm.
5. Fill with the new oil up to the upper notch on the dipstick (7).
6. To check the oil level, remove the dipstick (7), wipe it clean,
insert it and draw it out again. Check to see that the oil level
is between two marks.
A When using an oil of different manufacture or viscosity
from the previous one, remove all of the oid oil.
A Never mix two different type of oil.
A Use the proper SAE engine oil according to ambient
temperatures.
Refer to "LUBRICANTS, FUEL AND COOLANT".
(See page G-7.)
Engine oil capacity
2.1 L
2.2 U.S.qts.
1.8 lmp.qts
(1) Spring (5) Bolt
(2) Cover Duct (6) Drain Plug
(3) Mower Deck (7) Oil Level Dipstick
(4) Duct
A: Upper Level
B: Lower Level
