GZD15, WSM GENERAL
G-25
[4] CHECK POINTS OF EVERY 50 HOURS
Checking Safety Device
A Do not allow anyone near the machine while testing.
A If the machine does not pass one of the following tests, do
not operate the machine.
A Sit on operator's seat for all tests except for Test 1.
B Test 1 (OPERATOR NOT ON THE SEAT)
1. Securely set the parking brake.
2. Shift the PTO lever (4) to "DISENGAGE" (OFF) position.
3. Set the motion control levers (3) to the "NEUTRAL LOCK"
position.
4. Turn the key switch (5) to "START" position.
5. The engine must not crank.
B Test 2 (OPERATOR ON THE SEAT)
1. Do not set the parking brake. (Release it from test 1.)
2. Shift the PTO lever (4) to "DISENGAGE" (OFF) position.
3. Set the motion control levers (3) to the "NEUTRAL LOCK"
position.
4. Turn the key switch (5) to "START" position.
5. The engine must not crank.
B Test 3 (OPERATOR ON THE SEAT)
1. Securely set the parking brake.
2. Shift the PTO lever (4) to "DISENGAGE" (OFF) position.
3. Grasp the motion control levers (3) and move then inward from
"NEUTRAL LOCK" position to "NEUTRAL" position and
then release the levers.
4. Turn the key switch (5) to "START" position.
5. The engine must not crank.
B Test 4 (OPERATOR ON THE SEAT)
1. Securely set the parking brake.
2. Shift the PTO lever (4) to "ENGAGE" (ON) position.
3. Grasp the motion control levers (3) and move then inward from
"NEUTRAL LOCK" position to "NEUTRAL" position and
then release the levers.
4. Turn the key switch (5) to "START" position.
5. The engine must not crank.
B Test 5 (OPERATOR ON THE SEAT)
1. Start the engine.
2. Do not set the parking brake.
3. Shift the PTO lever (4) to "DISENGAGE" (OFF) position.
4. Grasp the motion control levers and move then inward from
"NEUTRAL LOCK" position to "NEUTRAL" position and
then release the levers.
5. Stand up. (Do not get off the machine.)
6. The engine must shut off.

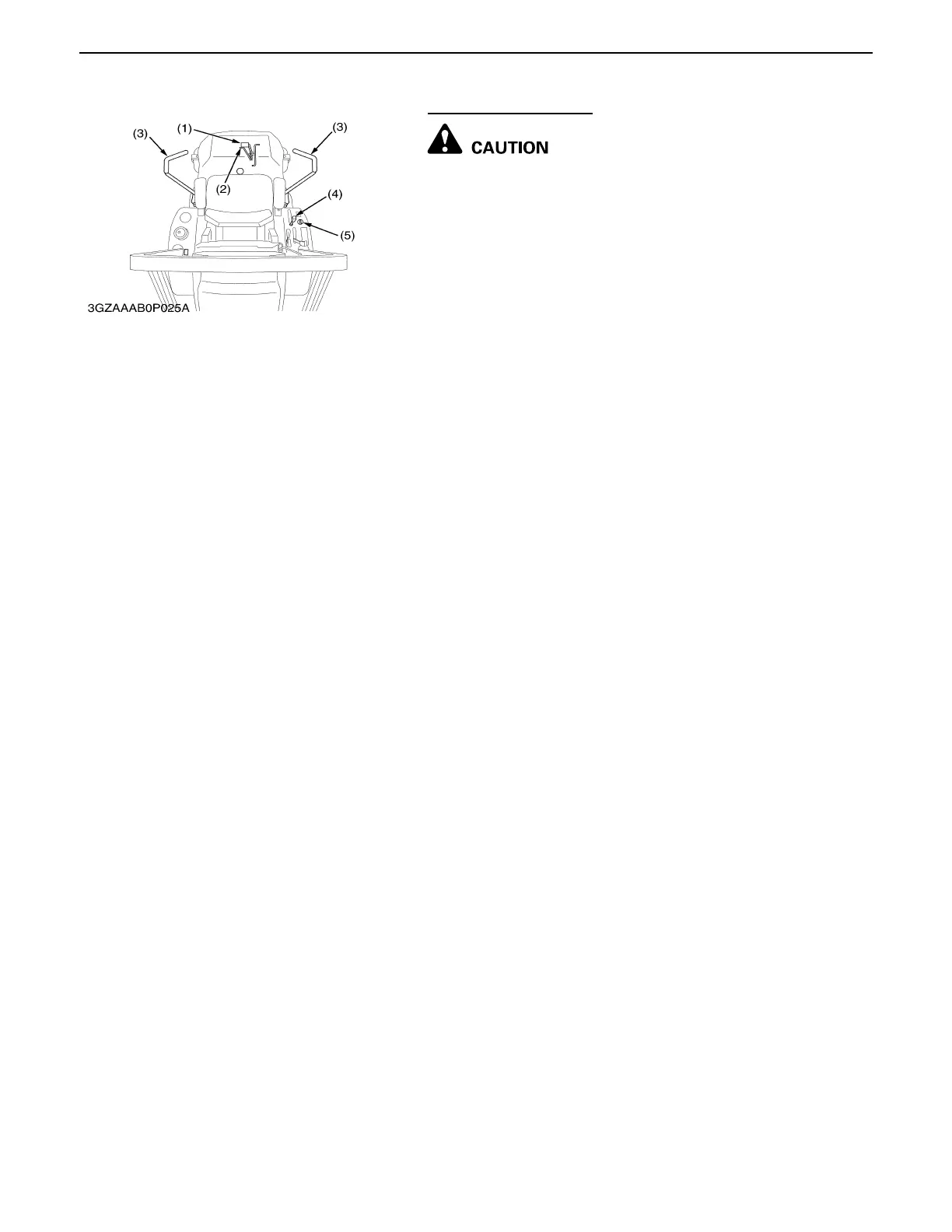

(1) Brake Pedal (4) PTO Lever
(2) Parking Brake Pedal (5) Key Switch
(3) Motion Control Lever
0000001432E
