GZD15, WSM ENGINE
1-M3
2. LUBRICATING SYSTEM

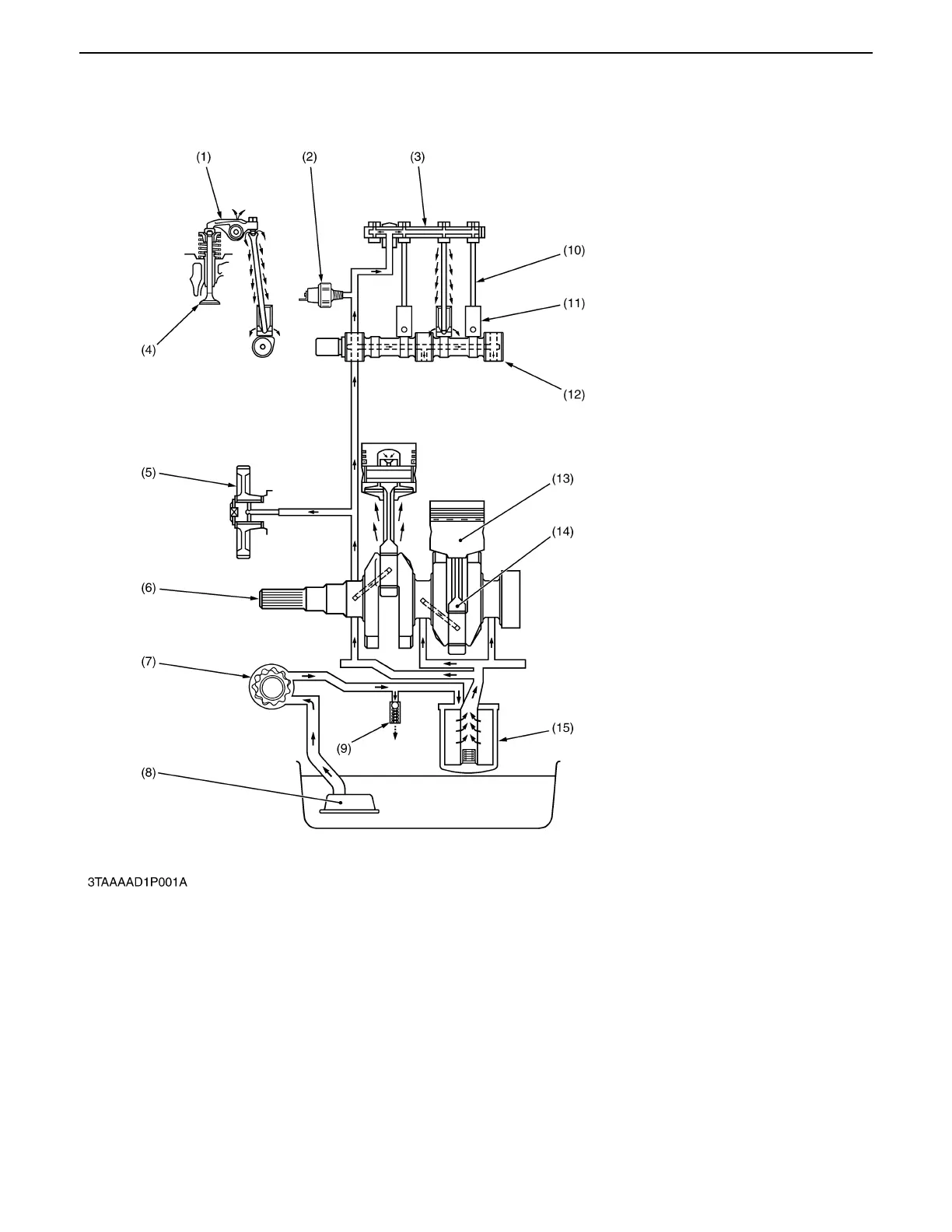

This engine's lubricating system consists of oil strainer (8), oil pump (7), relief valve (9), oil filter cartridge (15) and
oil pressure switch (2).
The oil pump sucks lubricating oil from the oil pan through the oil strainer and the oil flows down to the filter
cartridge, where it is further filtered. Then the oil is forced to crankshaft (6), connecting rods (14), idle gear (5),
camshaft (12) and rocker arm shaft (3) to lubricate each part.
Some part of oil, splashed by the crankshaft or leaking and dropping from gaps of each part, lubricates these parts:
piston (13), cylinders, small ends or connecting rods, tappets (11), push rods (10), inlet and exhaust valves (4) and
timing gears.
(1) Rocker Arm
(2) Oil Pressure Switch
(3) Rocker Arm Shaft
(4) Valve
(5) Idle Gear
(6) Crankshaft
(7) Oil Pump
(8) Oil Strainer
(9) Relief Valve
(10) Push Rod
(11) Tappet
(12) Camshaft
(13) Piston
(14) Connecting Rod
(15) Oil Filter Cartridge
0000000937E
