GZD15, WSM FRONT AXLE
3-S7
(2) Disassembling Front Wheel and Wheel Bracket
Removing the Front Wheel
1. Inspect tyre and wheel for wear or damage. Replace tyre as
an assembly.
(When reassembling)
Removing the Wheel Bracket
1. Remove the bolt (1).
2. Remove the wheel bracket (4).
3. Inspect all parts for wear or damage. Replace the parts as
needed.
(When reassembling)
Tightening torque
Front wheel mounting
bolt and locking nut
20 to 25
2.04 to 2.55
14.75 to 18.44 ft-lbs

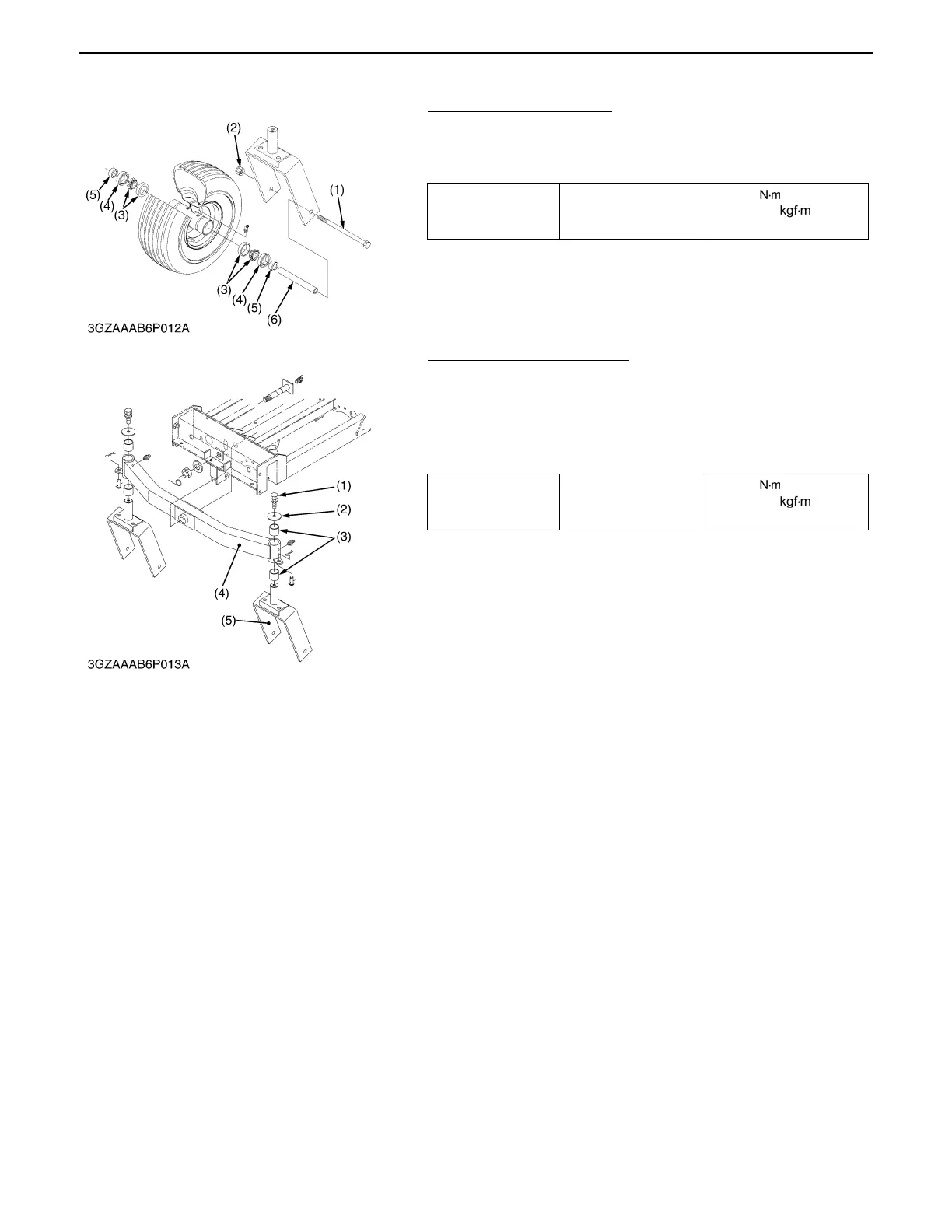

(1) Bolt (4) Oil Seal
(2) Locking Nut (5) Spacer
(3) Taper Roller Bearing (6) Sleeve
0000001507E
Tightening torque Wheel Bracket Bolt
45 to 55
4.59 to 5.61
33.19 to 40.57 ft-lbs
(1) Bolt (4) Front Axle
(2) Collar (5) Wheel Bracket
(3) Bush
0000001508E
