GZD15, WSM FRONT AXLE
3-S5
[2] DISASSEMBLING AND ASSEMBLING

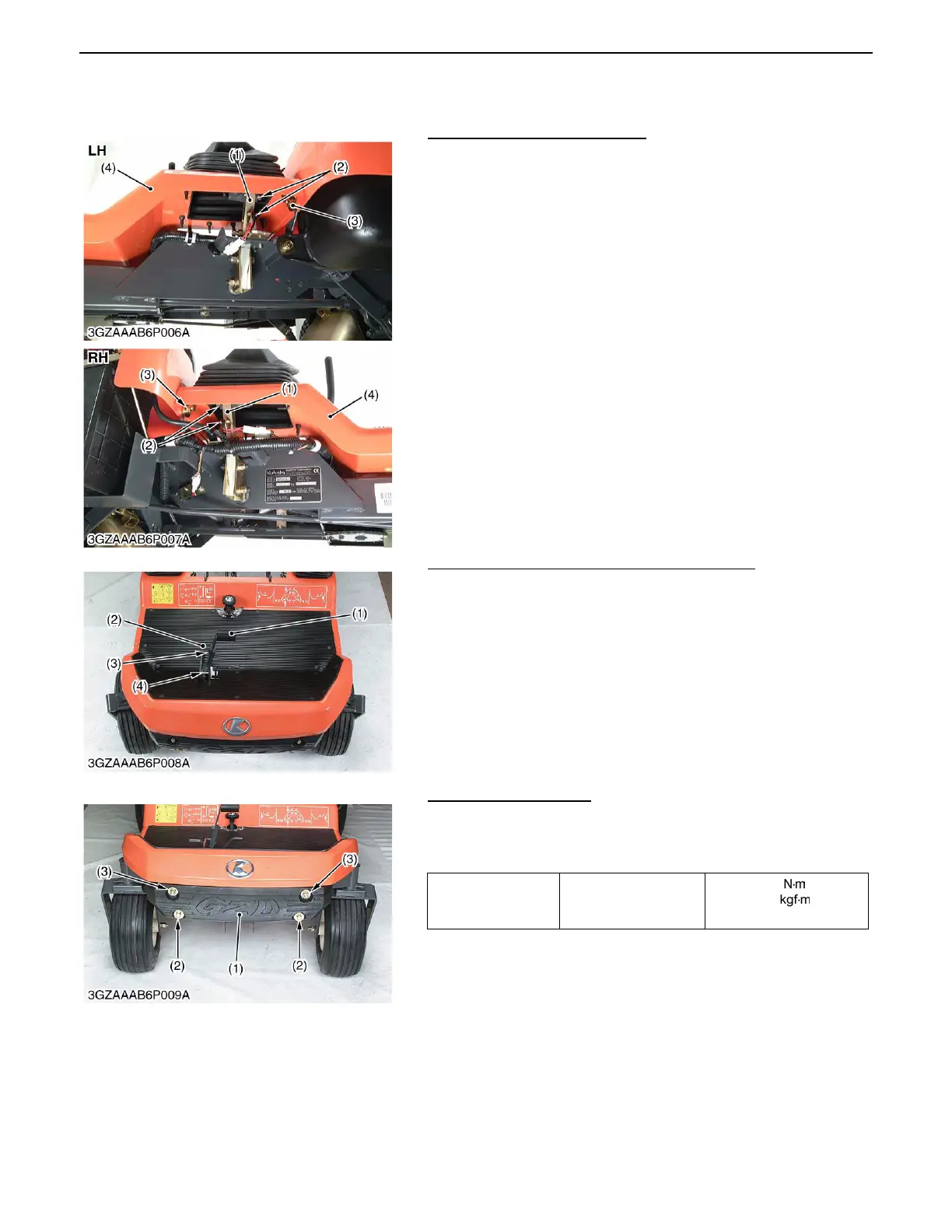

(1) Separating Floor Cover and Front Axle
Removing Motion Control Lever
1. After removing seat with seat bracket, remove the motion
control lever (1).
Removing Brake Pedal and Hydraulic Lift Pedal
1. Remove the brake pedal (1) and hydraulic lift pedal (2).
Removing Front Weight
1. Remove screws (2) and nuts (3).
2. Remove front weight from machine.
(When reassembling)
(1) Motion Control Lever (3) Screw
(2) Screw (4) Floor Cover
0000001502E
(1) Brake Pedal (3) Screw
(2) Hydraulic Lift Pedal (4) Screw
0000001503E
Tightening torque
Front weight mounting
screw and nut
45.0 to 55.0
4.59 to 5.61
33.2 to 40.6 ft-lbs
(1) Front Weight (3) Nut (with spring washer and
(2) Screw (with spring washer and plane washer)
plane washer)
0000001504E
