GZD15, WSM HYDRAULIC SYSTEM
4-M12
[2] GRASS COLLECTOR LIFT CYLINDER AND GRASS COLLECTOR
DUMP CYLINDER

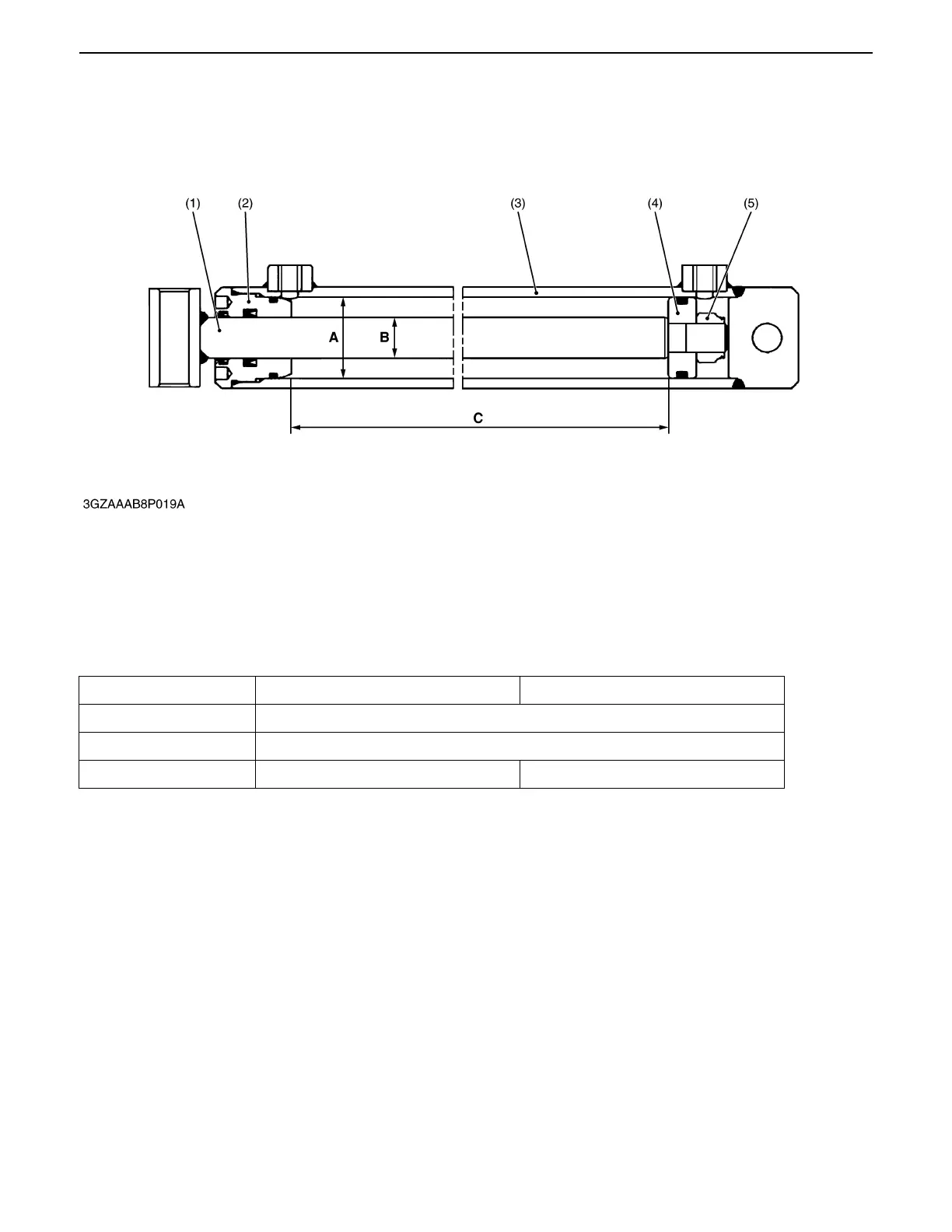

The cylinder consists of a head (2), cylinder tube (3), piston rod (1), piston (4) and other parts as shown in the figure
above.
This is single-rod double acting cylinder in which the reciprocating motion of the piston is controlled by hydraulic
force applied to both of its ends.
Cylinder Specifications
(1) Piston Rod (3) Cylinder Tube (5) Nut B: Rod O.D.
(2) Head (4) Piston A: Cylinder I.D. C: Stroke
Grass Collector Lift Cylinder Grass Collector Dump Cylinder
Cylinder tube I.D. (A) 40 mm (1.57 in.)
Rod O.D. (B) 20 mm (0.79 in.)
Stroke (C) 368 mm (14.49 in.) 93 mm (3.66 in.)
0000001581E
