GZD15, WSM MOWER
6-M2
2. LIFTING MECHANISM
Mower lifting is performed by the hydraulic system on the machine.
For avoiding danger, the mower should be kept lifting when traveling. When the mower lift pedal is moved to "LIFT"
position, the front link (7) are risen with front arm (6) by the mower lift cylinder (5).
Therefore, front link (7) connected with the cam arm (8) are lifted at the same time.
As this link system is a parallel linkage, the mower can be kept parallel at every position.

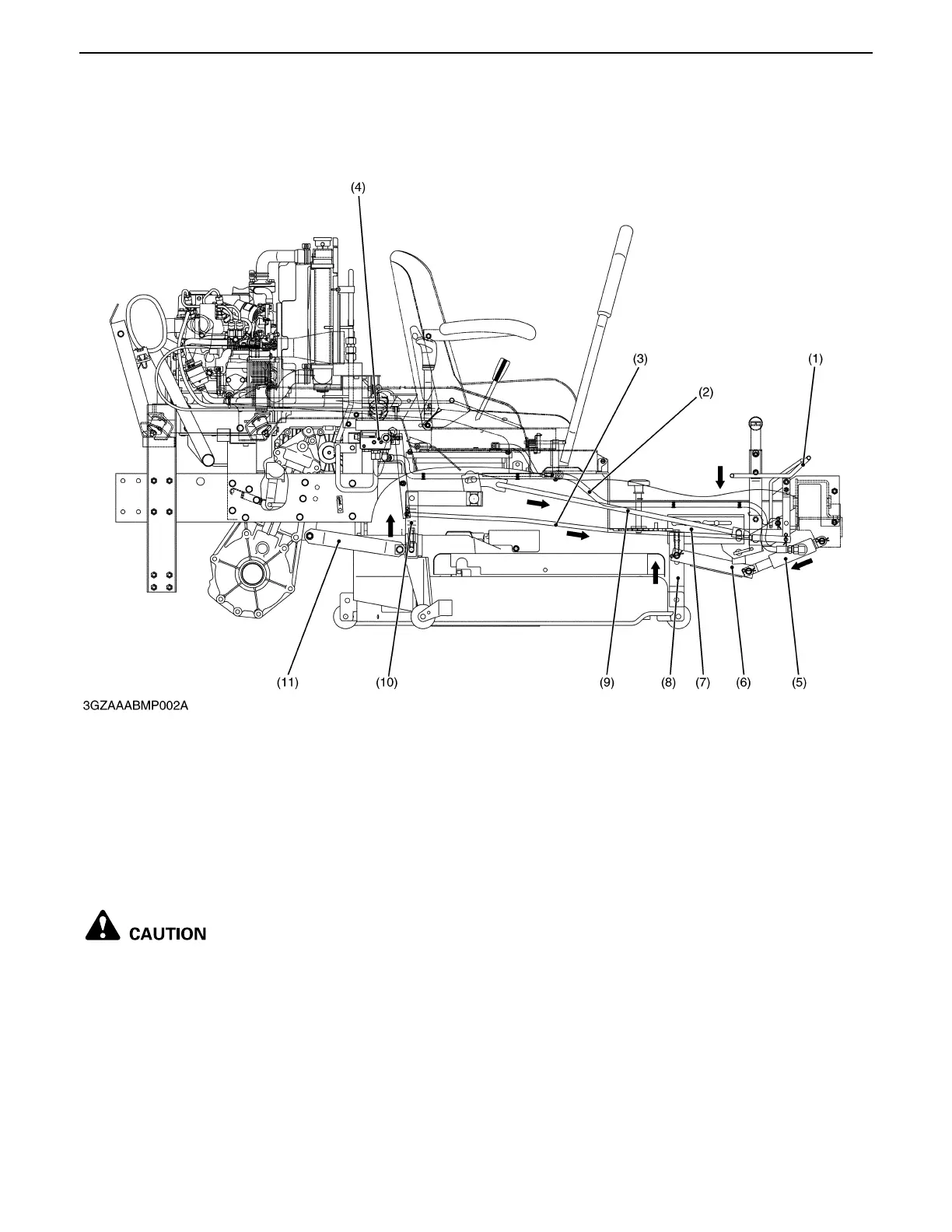

(1) Mower Lift Pedal (4) Control Valve (7) Front Link (10) Rear Link
(2) Delivery Hose (5) Mower Lift Cylinder (8) Cam Arm (11) Link Retainer
(3) Mower Lift Rod (6) Front Arm (9) Lift Rod
A Never operate mower in transport position.
0000001550E
