GZD15, WSM ENGINE
1-S19

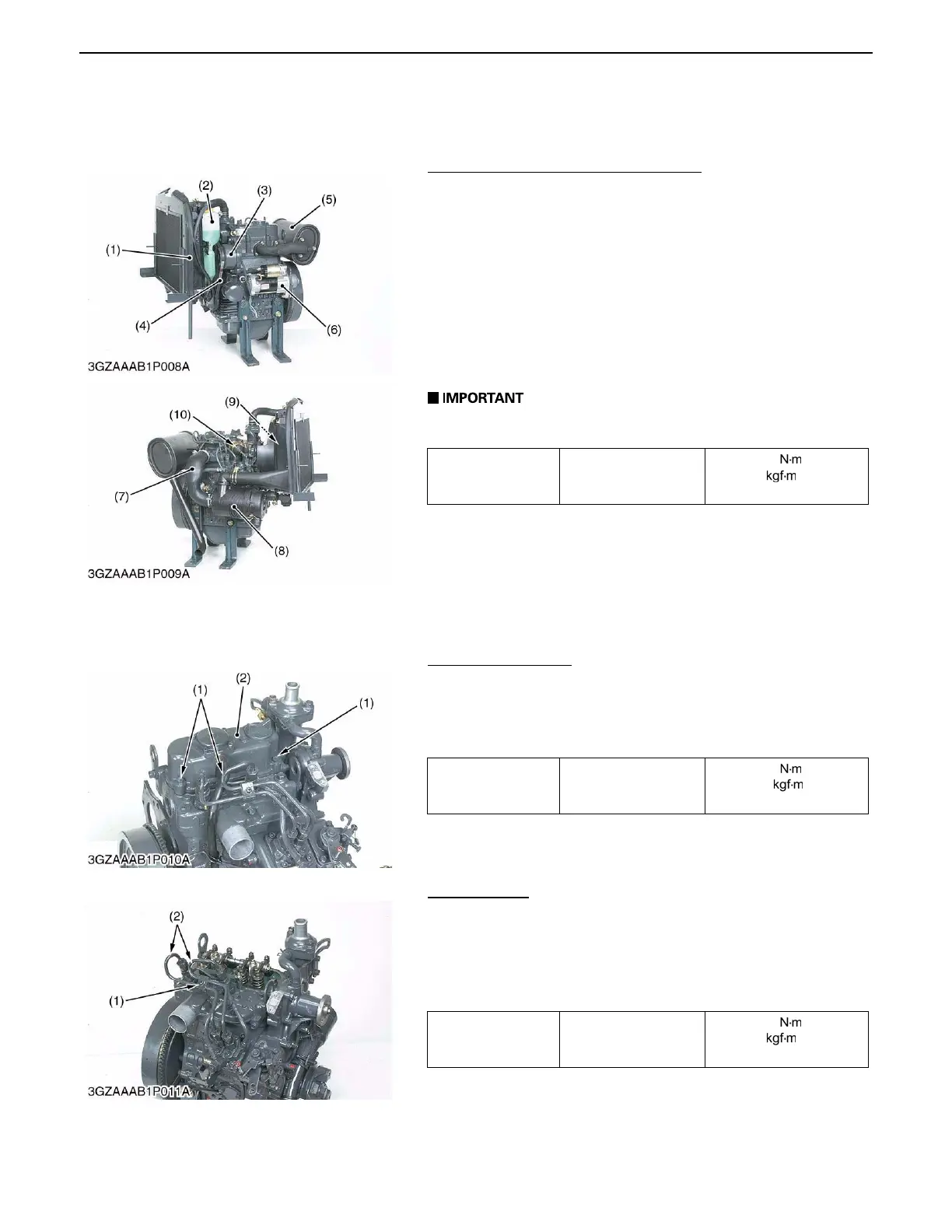

(2) Disassembling and Assembling
Radiator, Dynamo, Fan Belt and Muffler
1. Disconnect the radiator hoses and separate the radiator (1)
with recovery tank (2) from engine assembly.
2. Remove the cooling fan (9) and fan pulley.
3. Remove the dynamo (3) and fan belt (4).
4. Remove the muffler (5).
5. Remove the starter (6).
6. Disconnect the inlet pipe (7), air cleaner (8).
7. Remove the stop solenoid (10).
(When reassembling)
A Check to see that there are no cracks on the fan belt surface.
A After reassembling the fan belt, be sure to adjust the fan
belt tension.
Cylinder Head Cover
1. Remove the head cover screws (1).
2. Remove the cylinder head cover (2).
(When reassembling)
A Check to see if the cylinder head cover gasket is not defective.
Injection Pipes
1. Loosen the screw on the pipe clamp (1).
2. Detach the injection pipes (2).
(When reassembling)
A Sent compressed air into the pipes to blow out dust. Then,
reassemble the pipes in the reverse order.
(A) Cylinder Head, Valves and Oil Pan
Tightening torque Muffler
48.0 to 55.9
4.9 to 5.7
35.4 to 41.2 ft-lbs
(1) Radiator (6) Starter
(2) Recovery Tank (7) Inlet Pipe
(3) Dynamo (8) Air Cleaner
(4) Fan Belt (9) Cooling Fan
(5) Muffler (10) Stop Solenoid
0000001487E
Tightening torque
Cylinder head cover
screw
6.86 to 11.3
0.7 to 1.15
5.1 to 8.3 ft-lbs
(1) Head Cover Screws (2) Cylinder Head Cover
0000001488E
Tightening torque
Injection pipe retaining
nut
24.5 to 34.3
2.5 to 3.5
18.1 to 25.3 ft-lbs
(1) Pipe Clamp (2) Injection Pipe
0000001490E
