GZD15, WSM ELECTRICAL SYSTEM
5-S16
[3] CHARGING SYSTEM

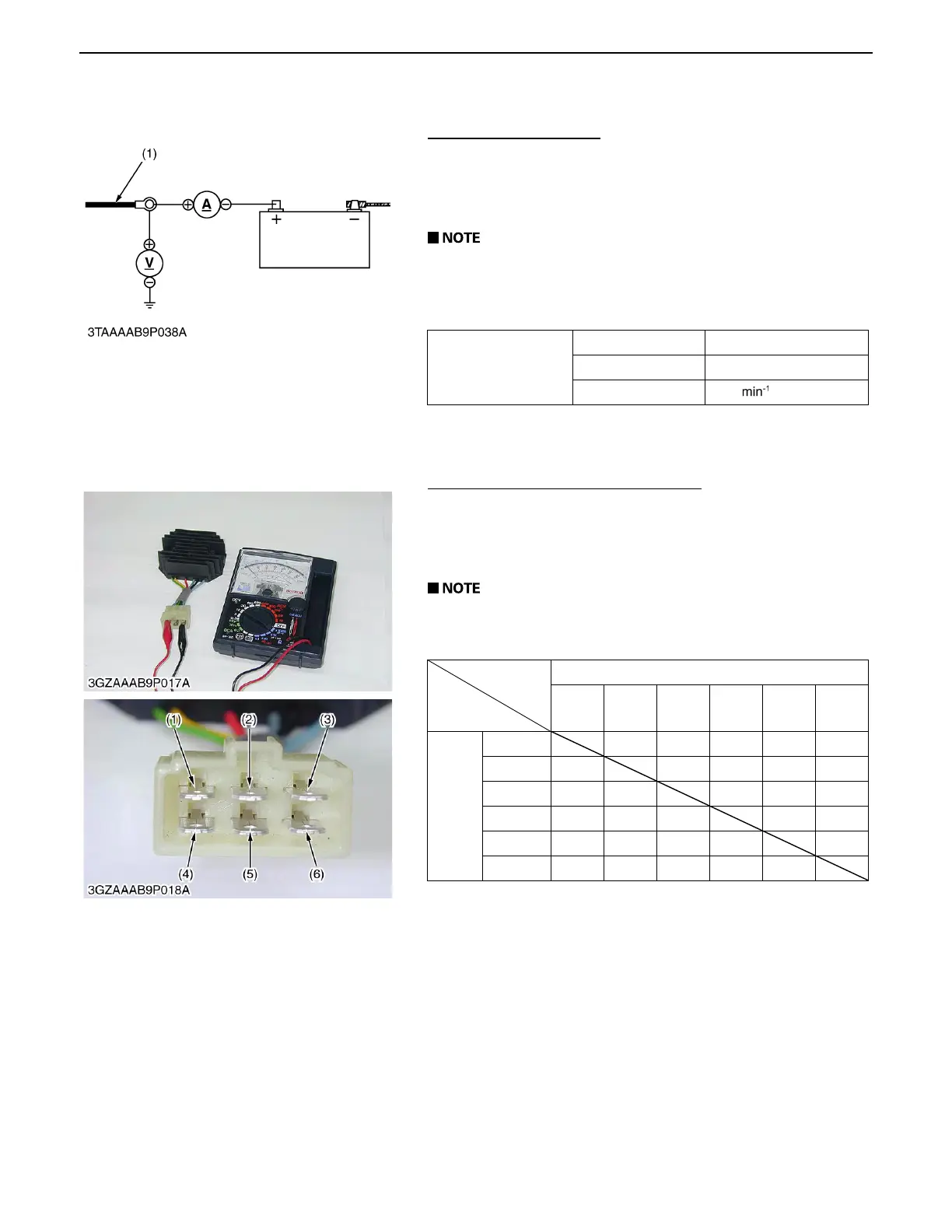

(1) Checking
Battery Charging Current
1. After starting the engine, disconnect the battery positive cord
(+), and connect an ammeter and voltmeter. Then switch on
all electrical loads (such as head lights) and measure the
charging current.
A Connect an ammeter only after starting the engine.
A When the electrical loads is considerably low or the
battery is fully charged, the specified reading may not be
obtained.
Continuity across Regulator's Terminals
1. Remove the regulator.
2. Check with a tester whether the regulator is in optimum
condition or not.
B Check Table
A Use a high-resistance type tester as far as possible.
A The judgement should be as below table. "ON" if the
indictor moves, otherwise "OFF".
Factory spec.
Current 14 to 15 A
Voltage 14 to 15 V
Dynamo speed 5200 (rpm)
(1) Battery Positive Cord
0000001174E
Tester +
terminal
Tester
- terminal
Cord colours
Blue Black Blue Green Yellow Red
Cord
colours
Blue (1) OFF OFF OFF OFF ON
Black (2) OFF OFF OFF OFF OFF
Blue (3) OFF OFF OFF OFF ON
Green(4) OFF OFF OFF OFF OFF
Yellow (5) ON ON ON OFF ON
Red (6) OFF OFF OFF OFF OFF
(1) Blue (4) Green
(2) Black (5) Yellow
(3) Blue (6) Red
0000001548E
