GZD15, WSM HYDRAULIC SYSTEM

4-S11

[4] GRASS COLLECTOR DUMP CYLINDER

(1) Disassembling and Assembling

Removing Grass Collector Dump Cylinder

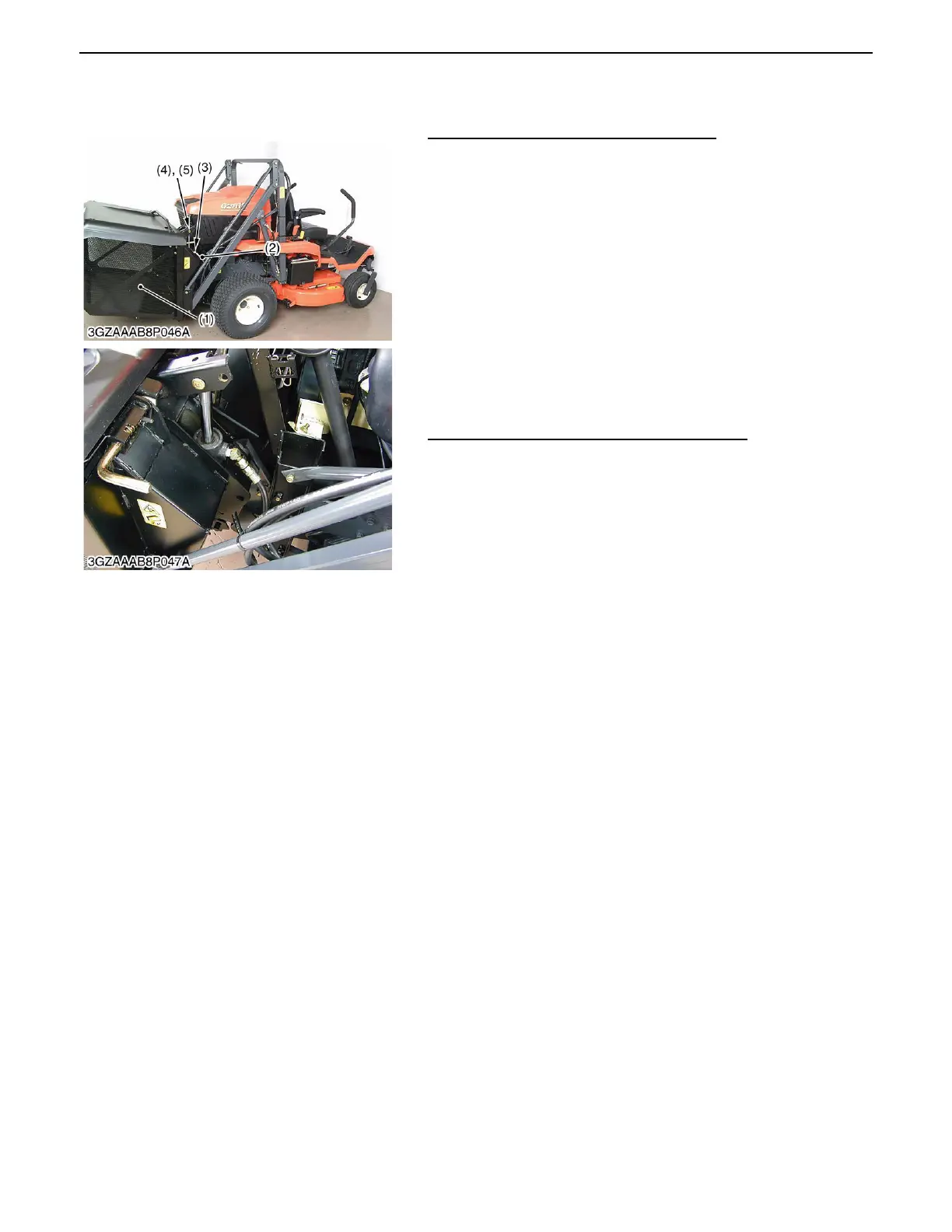

1. Remove the grass collector (1) from the machine.

2. Disconnect the hydraulic hoses (2) from the dump cylinder (3).

3. Remove the pin (4) and the clevis pin from the machine.

4. Remove the dump cylinder from the machine.

(When reassembling)

A Note the hydraulic hoses arrangement.

A Install and band the hydraulic hoses with plastic bands to

move smoothly.

Disassembling Grass Collector Dump Cylinder

1. Refer to grass collector lift cylinder. (See page 4-S10.)

(1) Grass Collector (4) Pin

(2) Hydraulic Hose (5) Clevis Pin

(3) Dump Cylinder (6) Grass Collector Base
