[2] ENGINE BODY
(1) Checking and Adjusting

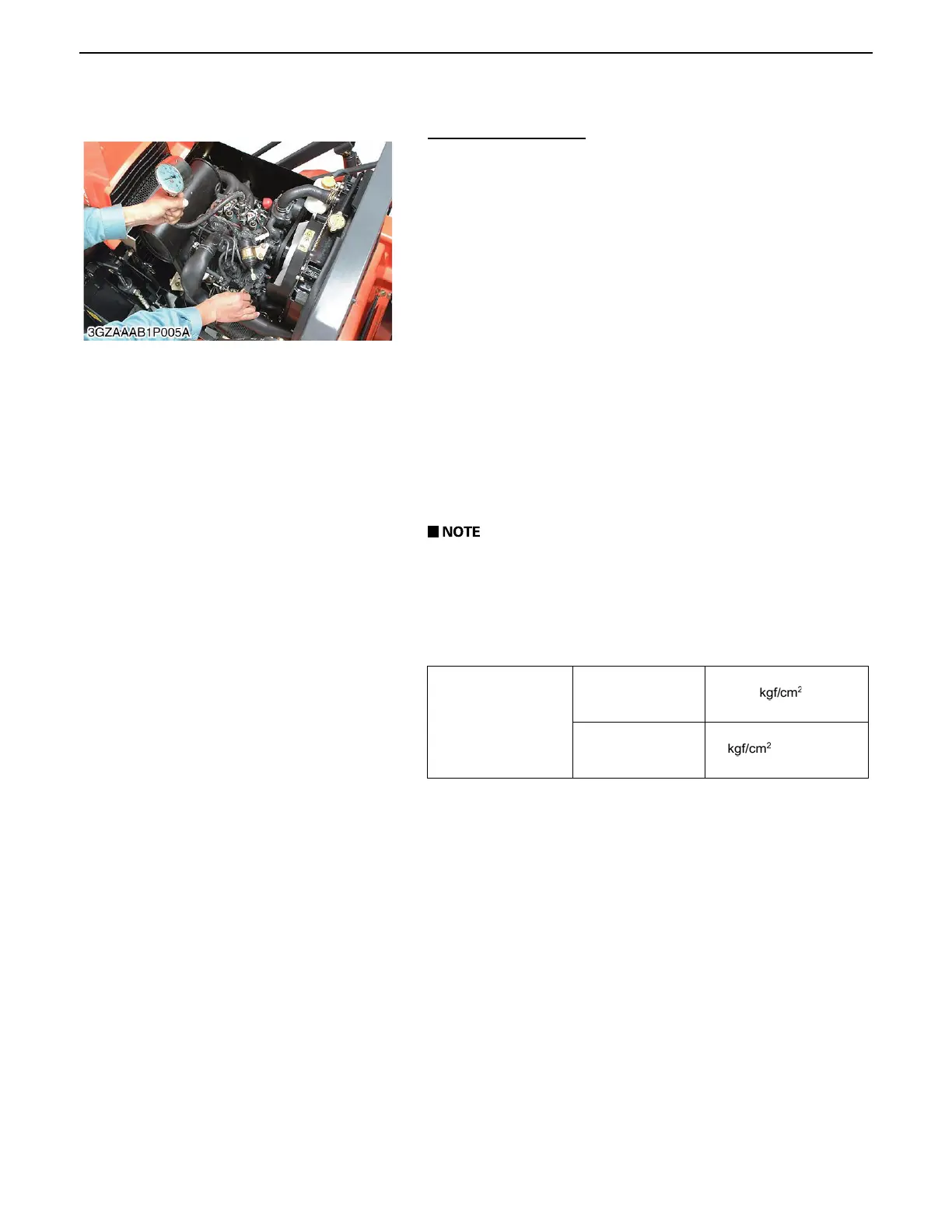

Compression Pressure
1. Run the engine until it is warmed up.
2. Stop the engine.
3. Disconnect the 2P connector from the fuel pump.
4. Remove the air cleaner, the muffler and all injection nozzles.
5. Engage the parking brake.
6. Set a compression tester (Code No. 07909-30208) with the
adaptor (Adaptor H, code No. 07909-31231) to the nozzle
hole.
7. While cranking the engine with the starter, measure the
compression pressure.
8. Repeat steps 6 and 7 for each cylinder.
9. If the measurement is below the allowable limit, apply a small
amount of oil to the cylinder wall through the nozzle hole and
measure the compression pressure again.
10.If the compression pressure is still less than the allowable limit,
check the top clearance, valve clearance and cylinder head.
11.If the compression pressure increases after applying oil, check
the cylinder wall and piston rings.
A Check the compression pressure with the specified valve
clearance.
A Always use a fully charged battery for performing this
test.
A Variances in cylinder compression values should be
under 10 %.
Compression pressure
Factory spec.
3.53 to 4.02 MPa
36 to 41
512 to 583 psi
Allowable limit
2.55 MPa
26
370 psi
