GZD15, WSM TRANSAXLE
2-S5
4. CHECKING AND ADJUSTING
Adjusting Parking Brake
A Stop the engine and chock the wheels before checking or
adjusting.
A Park the machine on a hard and level surface.
A Wrong adjustment may cause machine damage.
B Check

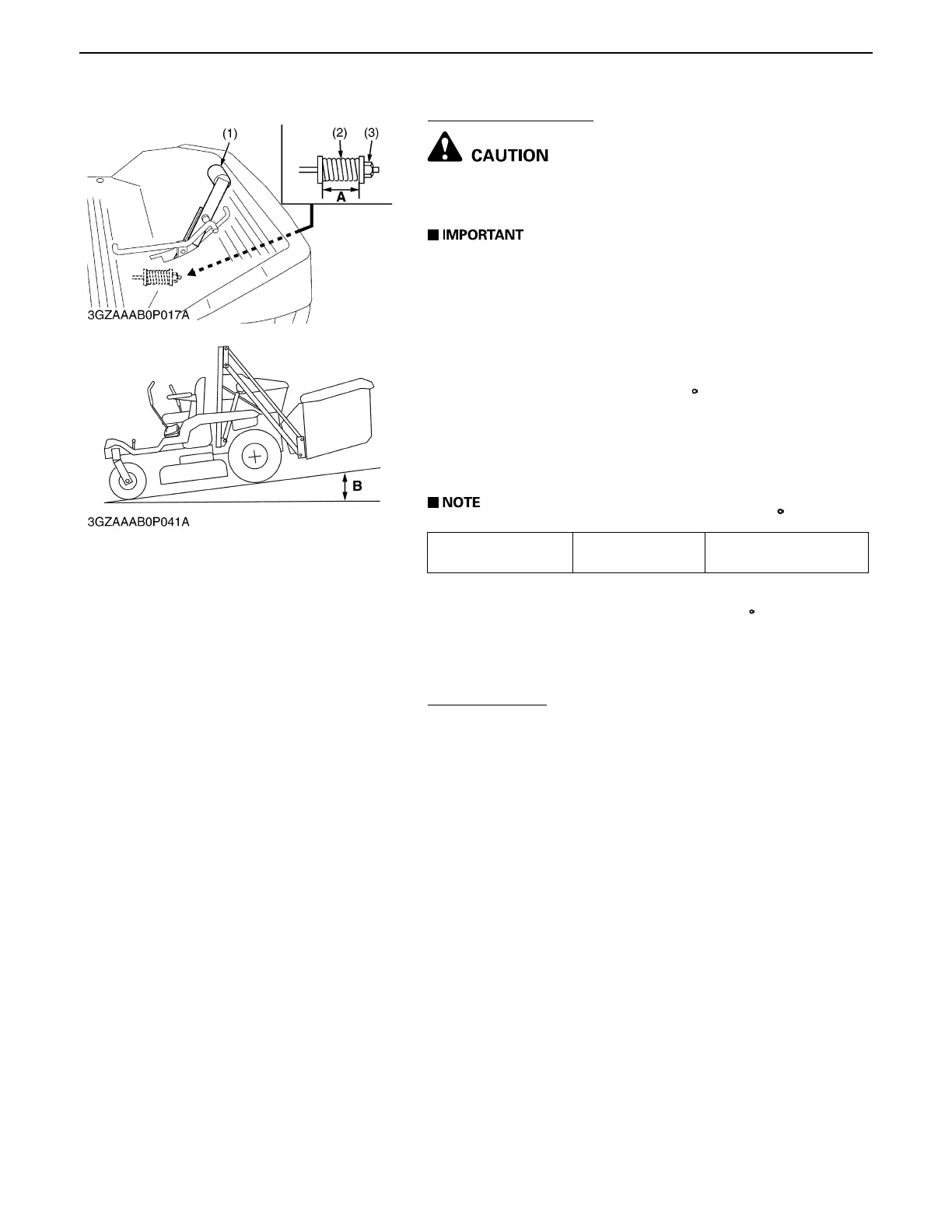

1. Apply parking brake and check the length (A) of the brake
spring (2).
2. If it is not correct, turn the lock nut (3) in the desireddirection
until the proper length is achieved.
B Check on the slope
1. Place the machine on the under 17 ramp.
2. Apply the parking brake fully.
3. Place the motion control levers in "NEUTRAL LOCK"
position and shut off the engine.
4. Check that the machine does not move.
A For parking brake test purposes only use 17 ramp.
Checking Neutral
1. Park machine safely.
2. Set the motion control levers are in the NEUTRAL position.
3. Move the PTO lever to OFF position and apply the parking
brake.
4. Sit on the seat and start the engine.
5. Move the throttle lever to Max. speed position.
6. Release the parking brake.
7. Check whether the drive wheels move or not.
8. If movements is noted, perform adjustment as follows.
Brake spring length (A) Factory spec.
27 mm
1.06 in.
(1) Brake Pedal A: Brake Spring Length
(2) Brake Spring B: "Under 17 "
(3) Lock Nut
0000001444E
0000001621E
To Next Page
