Kubota GZD15 - Oil Pan

GZD15, WSM ENGINE
1-M2

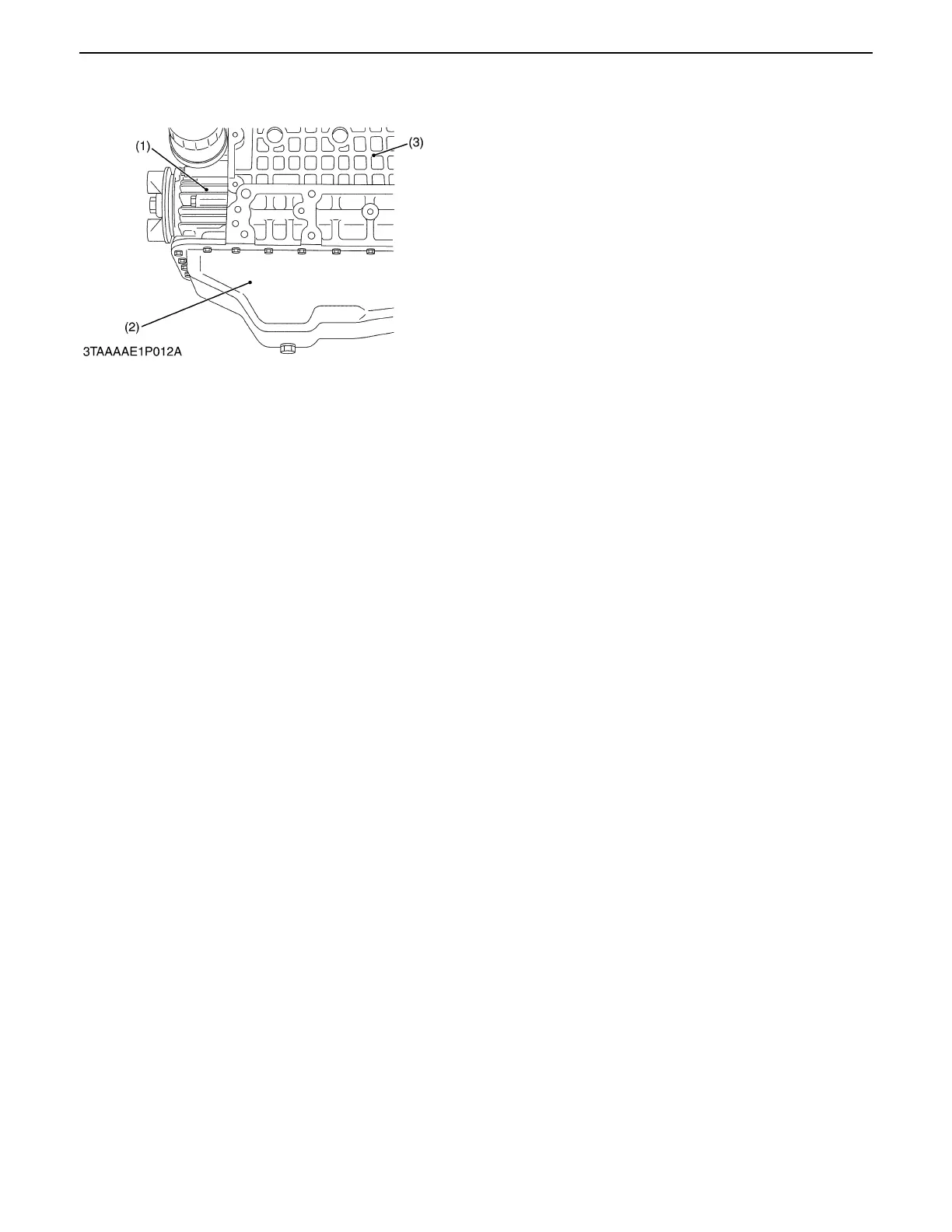

[3] OIL PAN
The oil pan is expanded under the gear case.
Therefore, the height of the engine can be lowered more
than so far while securing a necessary amount of oil.
(1) Gear Case (3) Crank Case
(2) Oil Pan
0000005019E
KiSC issued 04, 2006 A
