GZD15, WSM HYDRAULIC SYSTEM
4-M11
4. LIFT CYLINDER
[1] MOWER LIFT CYLINDER

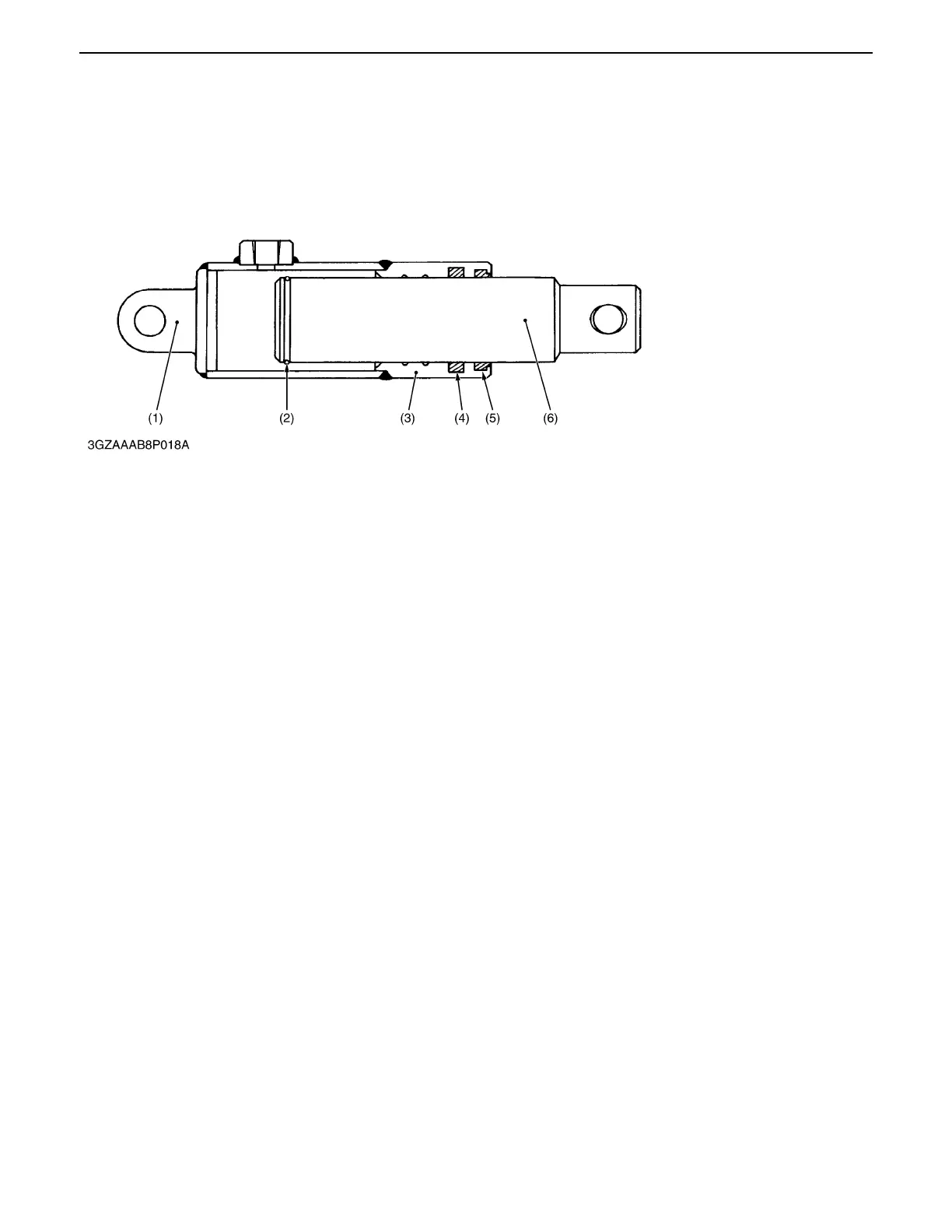

The lift cylinder consists of the tube end (1), cylinder tube (3), piston rod (6) and other parts as shown in the figure
above.
This cylinder is single acting type.
(1) Tube End
(2) Snap Ring
(3) Cylinder Tube
(4) Packing
(5) Scraper
(6) Piston Rod
0000001580E
KiSC issued 04, 2006 A

Kubota GZD15 Specifications

General

Transmission	Hydrostatic
Drive Type	2WD
Engine Type	Diesel
Engine Power	15 HP
Weight	640 kg
