Lenze EVS9324-EK User Manual

Function block library
7-25

SHB9300CRV EN 2.0
7.6.3 Automation interface (AIF-IN)
Purpose
Interface for input signals from the connected field bus module (e.g. INTERBUS-S, PROFIBUS-DP)
for setpoints and actual values as binary, analog or phase information.Please observe the
corresponding Operating Instructions of the connected fieldbus module.
16 Bit
16 Bit
A IF -IN .W 2
AIF-IN.W 3
16 binary
signals
16 Bit
Low W ord
16 Bit
High W ord
16 binary
signals
16 Bit
A IF -IN .W 1
A IF -IN .B 1 5
A IF -IN .B 0
AIF-IN.D1
AIF-CTRL.B12
AIF-CTRL.B13
AIF-CTRL.B14
AIF-CTRL.B15
B y te 3 ,4
B y te 5 ,6
B y te 7 ,8
A u to m a tio n
in te r fa c e X 1
AIF-IN
Bit 0
Bit 15
C ontrol w ord
AIF-CTRL.B0
AIF-CTRL.B1
AIF-CTRL.B2
AIF-CTRL.B4
AIF-CTRL.B5
AIF-CTRL.B6
AIF-CTRL.B7
DCTRL
QSP
AIF-CTRL.B3
DISABLE
AIF-CTRL.B8
CINH
AIF-CTRL.B9
TRIP-SET
AIF-CTRL.B10
TRIP-RESET
AIF-CTRL.B11
A IF -IN .B 1 4
A IF -IN .B 2
A IF -IN .B 3 1
A IF -IN .B 1 6
A IF -IN .B 3 0
A IF -IN .B 1 7
16 Bit
. . .. . .
C 0857
C 0856/1
C 0856/2
C 0855/1
C 0855/2
C 0856/3

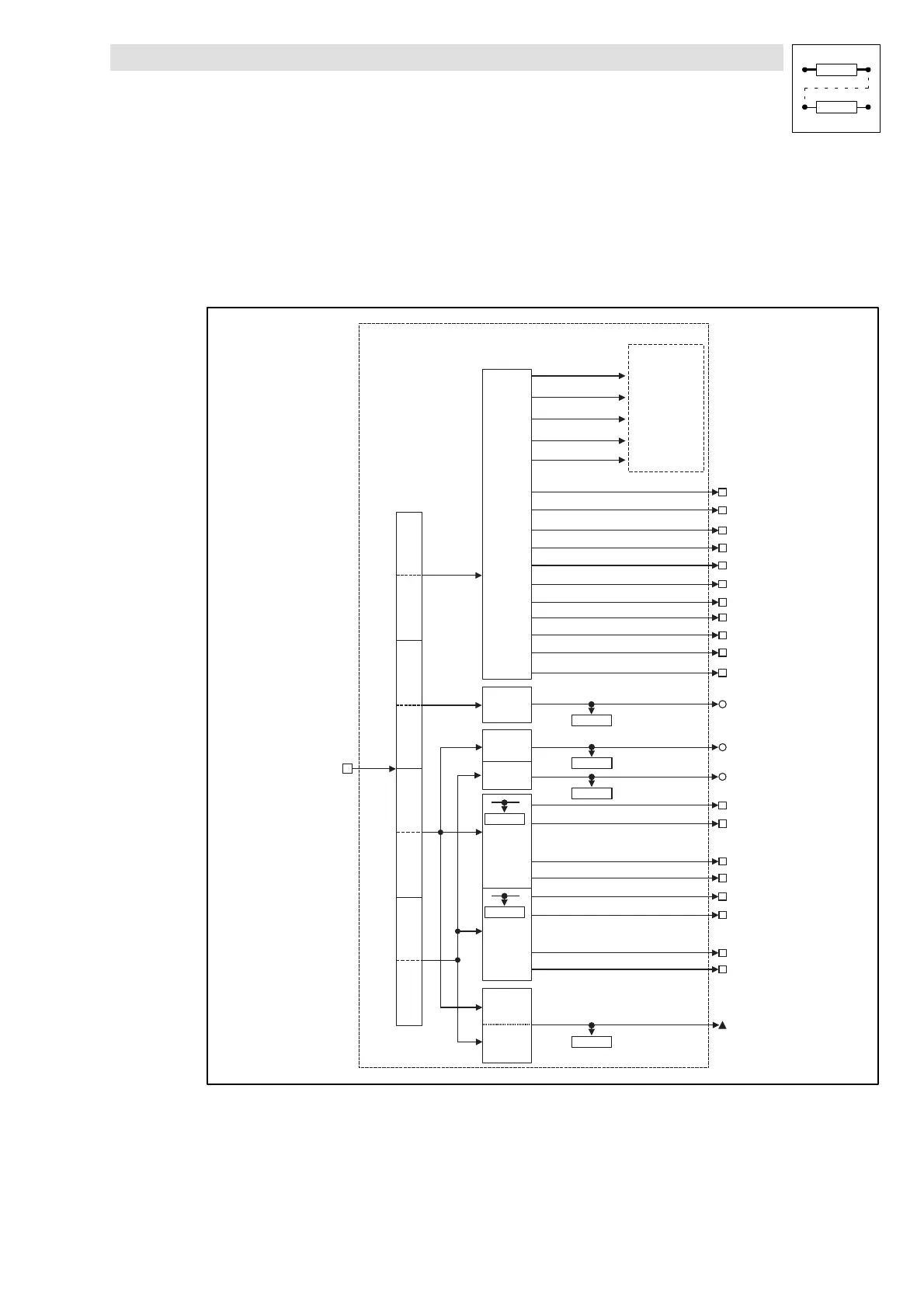

Fig. 7-9 Automation interface (AIF-IN)
