Lenze EVS9324-EK User Manual

Function block library
7-37

SHB9300CRV EN 2.0

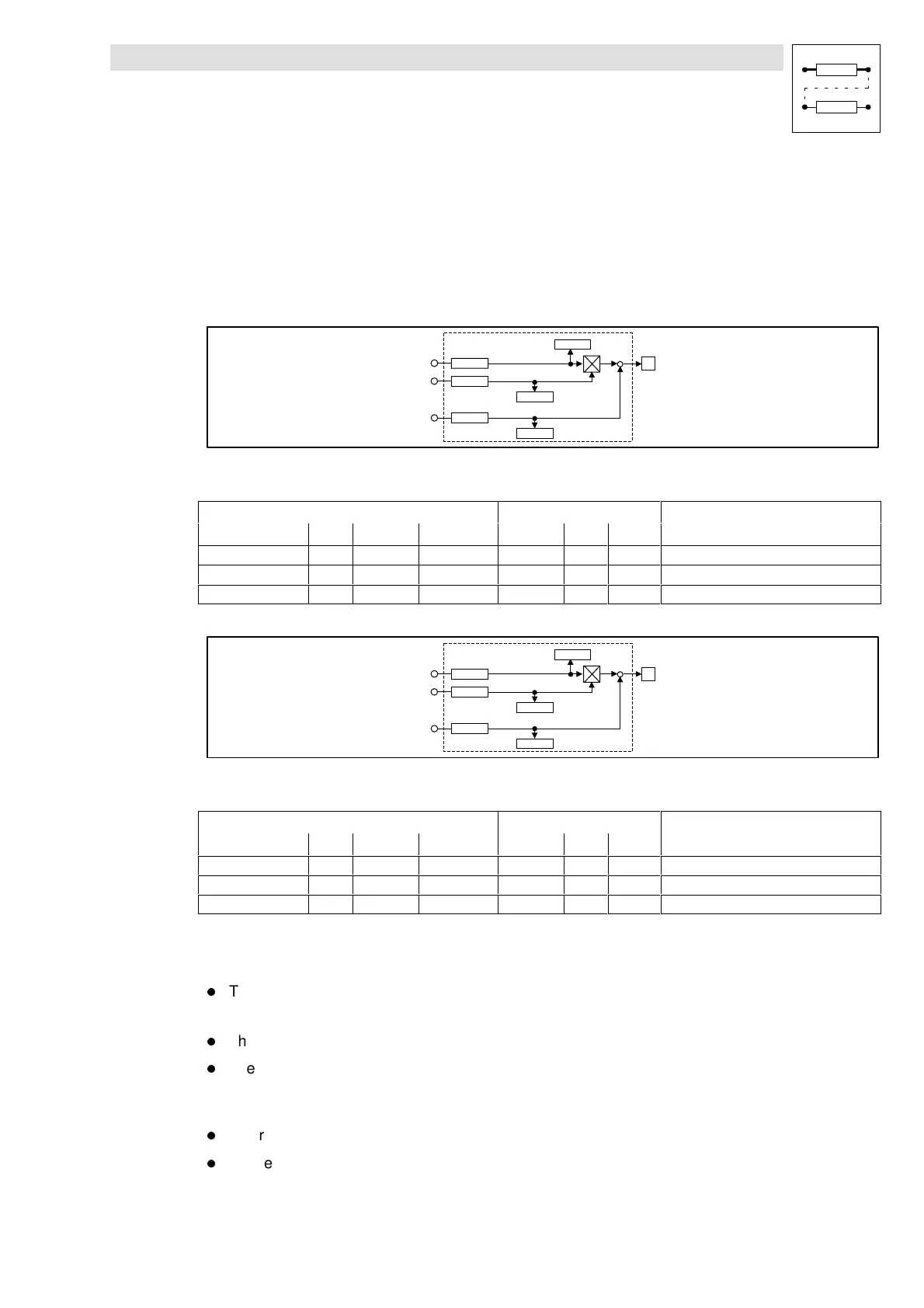

7.6.8 Analog output via terminal 62/63 (AOUT)
Purpose
AOUT1 and AOUT2 can be used as monitor outputs.
Internal analog signals can be output as voltage signals and be used e.g. as display values or
setpoints for slaves.
62
AOUT1
C434/1
+
+
AOUT1-IN
AOUT1-GAIN
AOUT1-OFFSET
C0434/3
C0434/2
C0431
C0433
C0432
Fig. 7-24 Analog output via terminal X6/62 (AOUT1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
AOUT1-IN a C0434/1 dec [%] C0431 1 5001 -
AOUT1-GAIN a C0434/3 dec [%] C0433 1 19510 -
AOUT1-OFFSET a C0434/2 dec [%] C0432 1 19512 -
63
AOUT2
C439/1
+
+
AOUT2-IN
AOUT2-GAIN
AOUT2-OFFSET
C0439/3
C0439/2
C0436
C0438
C0437
Fig. 7-25 Analog output via terminal X6/63 (AOUT2)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
AOUT2-IN a C0439/1 dec [%] C0436 1 5002 -
AOUT2-GAIN a C0439/3 dec [%] C0438 1 19511 -
AOUT2-OFFSET a C0439/2 dec [%] C0437 1 19513 -
Function
l The value at input AOUTx-IN is multiplied with the value at input AOUTx-GAIN.
– The formula for the multiplication is: 100% * 100% = 100%.
l The result of the multiplication is limited to ±200%.
l The limited value is added to the value which is applied at input AOUTx-OFFSET.
– The formula for the addition is 50% + 10% = 60%. The result of the calculation is mapped in
such a way that 100% = 10 V.
l The result of the addition is limited again to ±200%.
l The result of the calculation is mapped in such a way that 100% = 10 V and is output as a
signal at terminal 62 or 63.
