7.6.57 Phase comparator (PHCMP)
Purpose
Compares two phase signals (distances)with each other.
C0695
C0698/1
PHCMP1
PHCMP1-OUT
PHCMP1-IN1
C0698/2
PHCMP1-IN2
C0697/1
C0697/2

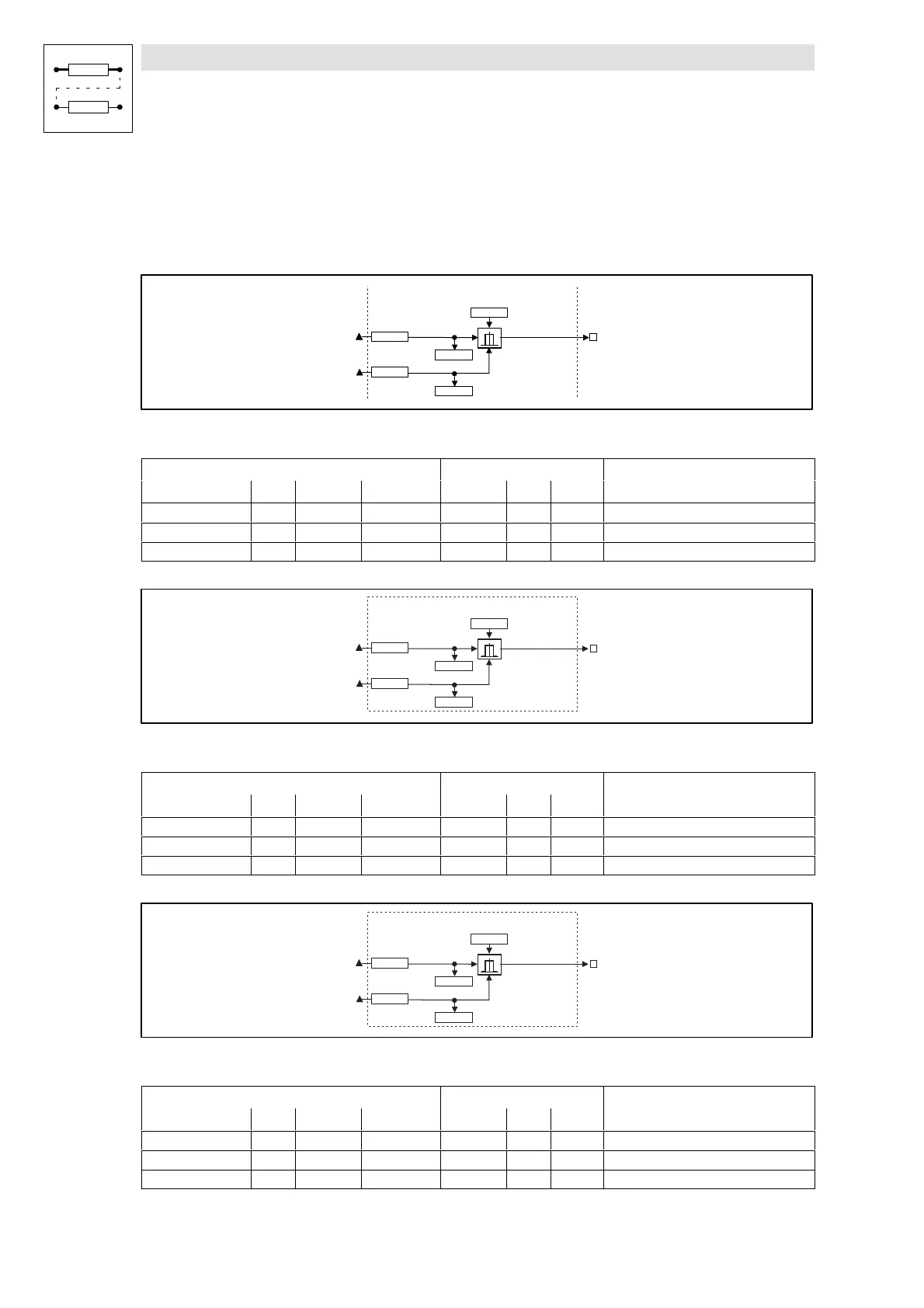

Fig. 7-142 Phase comparator (PHCMP1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
PHCOMP1-IN1 ph C0698/1 dec [inc] C0697/1 3 1000 Signal to be compared
PHCOMP1-IN2 ph C0698/2 dec [inc] C0697/2 3 1000 Comparison value
PHCOMP1-OUT d - - - - -
C 1207
C 1206/1
PHCM P2
PHCMP2-OUT
PHCMP2-IN1
C 1206/2
PHCMP2-IN2
C 1205/1
C 1205/2
Fig. 7-143 Phase comparator (PHCMP2)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
PHCOMP2-IN1 ph C1206/1 dec [inc] C1205/1 3 1000 Signal to be compared
PHCOMP2-IN2 ph C1206/2 dec [inc] C1205/2 3 1000 Comparison value
PHCOMP2-OUT d - - - - -
C 1272
C 1271/1
PHCM P3
PHCMP3-OUT
PHCMP3-IN1
C 1271/2
PHCMP3-IN2
C 1270/1
C 1270/2
Fig. 7-144 Phase comparator (PHCMP3)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
PHCOMP3-IN1 ph C1271/1 dec [inc] C1270/1 3 1000 Signal to be compared
PHCOMP3-IN2 ph C1271/2 dec [inc] C1270/2 3 1000 Comparison value
PHCOMP3-OUT d - - - - -
