Lenze EVS9324-EK User Manual

Function block library
7-162

SHB9300CRV EN 2.0

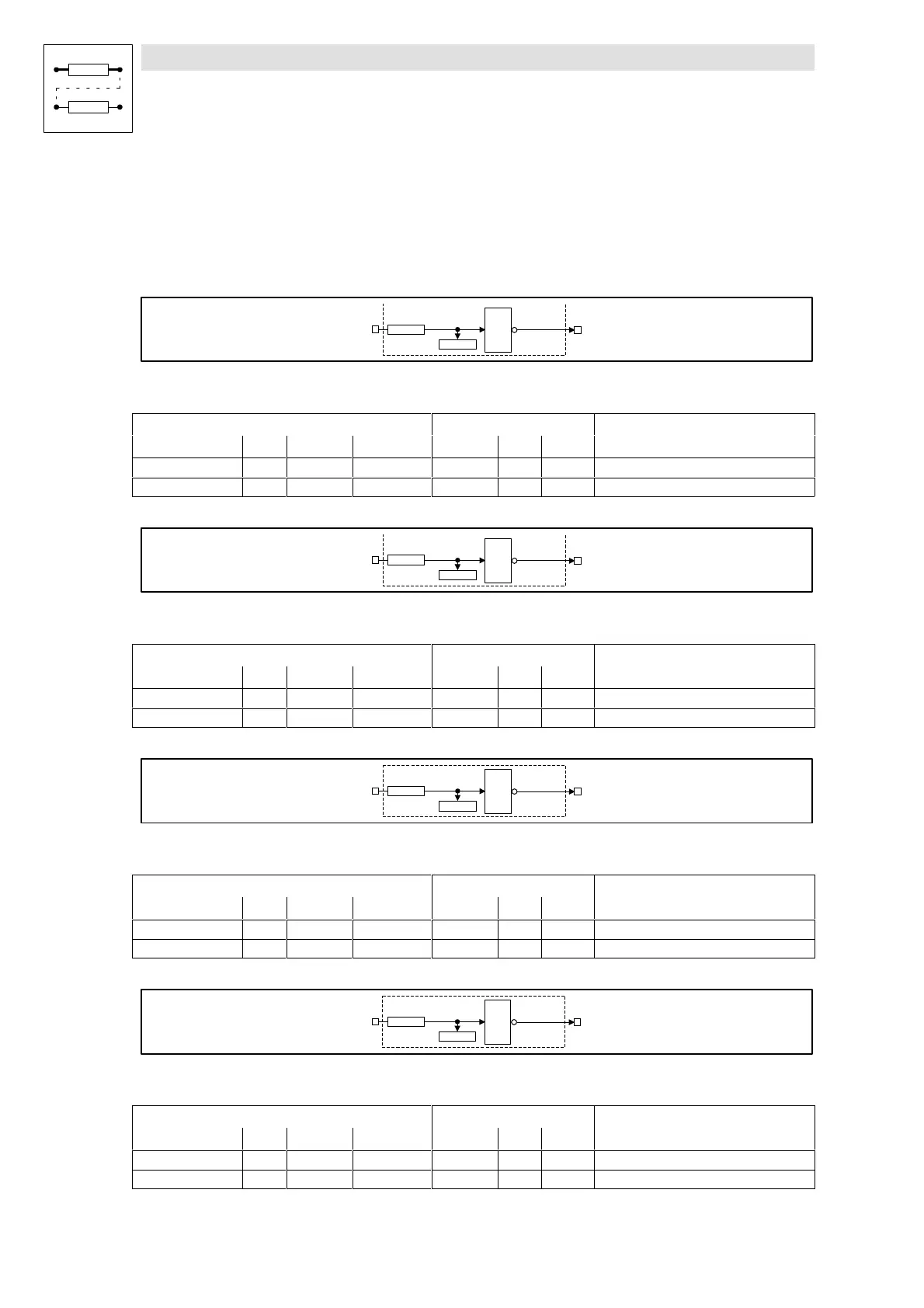

7.6.51 Logic NOT (NOT)
Purpose
Logic inversion of digital signals. The inversion can be used for the control of functions or the
generation of status information.
NOT1
1
NOT1-OUT
NOT1-IN
C0841
C0840
Fig. 7-120 Logic NOT
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
NOT1-IN d C0841 bin C0840 2 1000 -
NOT1-OUT d - - - - - -
NOT2
1
NOT2-OUT
NOT2-IN
C0843
C0842
Fig. 7-121 Logic NOT (NOT2)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
NOT2-IN d C0843 bin C0842 2 1000 -
NOT2-OUT d - - - - - -
NOT3
1
NOT3-OUT
NOT3-IN
C0845
C0844
Fig. 7-122 Logic NOT (NOT3)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
NOT3-IN d C0845 bin C0844 2 1000 -
NOT3-OUT d - - - - - -
NOT4
1
NOT4-OUT
NOT4-IN
C0847
C0846
Fig. 7-123 Logic NOT (NOT4)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
NOT4-IN d C0847 bin C0846 2 1000 -
NOT4-OUT d - - - - - -
