Function block library
7-81
 SHB9300CRV EN 2.0

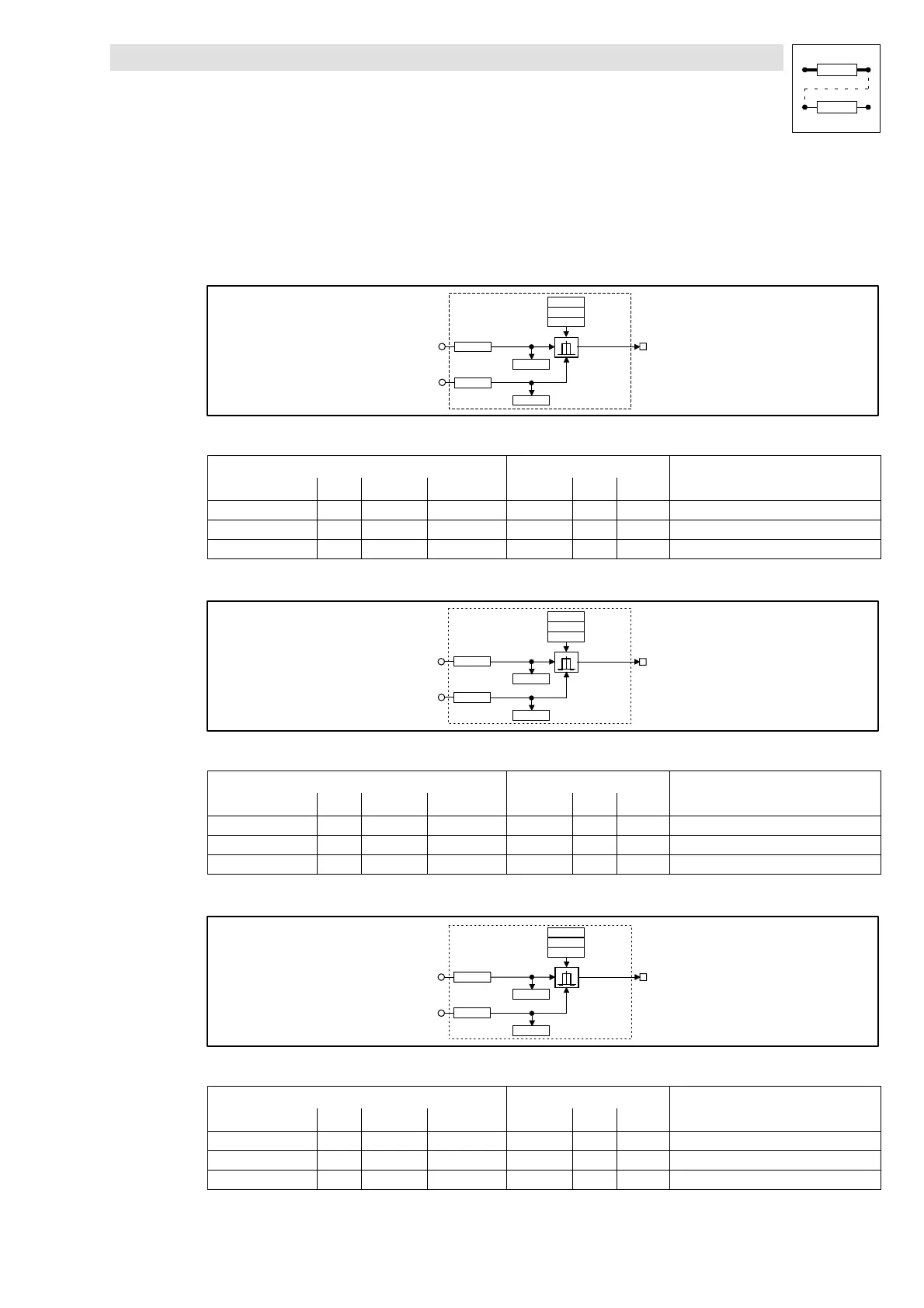

7.6.19 Comparator (CMP)
Purpose
These function blocks are used to compare two analog signals with each other.
Two comparators are available. They can be used to implement threshold switches:
C0681
C0682
C0684/1
CMP1
CMP1-OUT
CMP1-IN1
C0684/2
CMP1-IN2
C0683/1
C0683/2
C0680
Fig. 7-51 Comparator (CMP1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
CMP1-IN1 a C0684/1 dec [%] C0683/1 1 5001 -
CMP1-IN2 a C0684/2 dec [%] C0683/2 1 19500 -
CMP1-OUT a - - - - - -
C0686
C0687
C0689/1
CMP2
CMP2-OUT
CMP2-IN1
C0689/2
CMP2-IN2
C0688/1
C0688/2
C0685
Fig. 7-52 Comparator (CMP2)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
CMP2-IN1 a C0689/1 dec [%] C0688/1 1 1000 -
CMP2-IN2 a C0689/2 dec [%] C0688/2 1 1000 -
CMP2-OUT a - - - - - -
C0691
C0692
C0694/1
CMP3
CMP3-OUT
CMP3-IN1
C0694/2
CMP3-IN2
C0693/1
C0693/2
C0690
Fig. 7-53 Comparator (CMP3)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
CMP3-IN1 a C0694/1 dec [%] C0693/1 1 1000 -
CMP3-IN2 a C0694/2 dec [%] C0693/2 1 1000 -
CMP3-OUT a - - - - -
